Запчасти Case IH 2590 (2-46) - PISTON ASSEMBLY, WITH THREE GROOVE SLEEVE, 504BDT, DIESEL ENGINE (02) - ENGINE

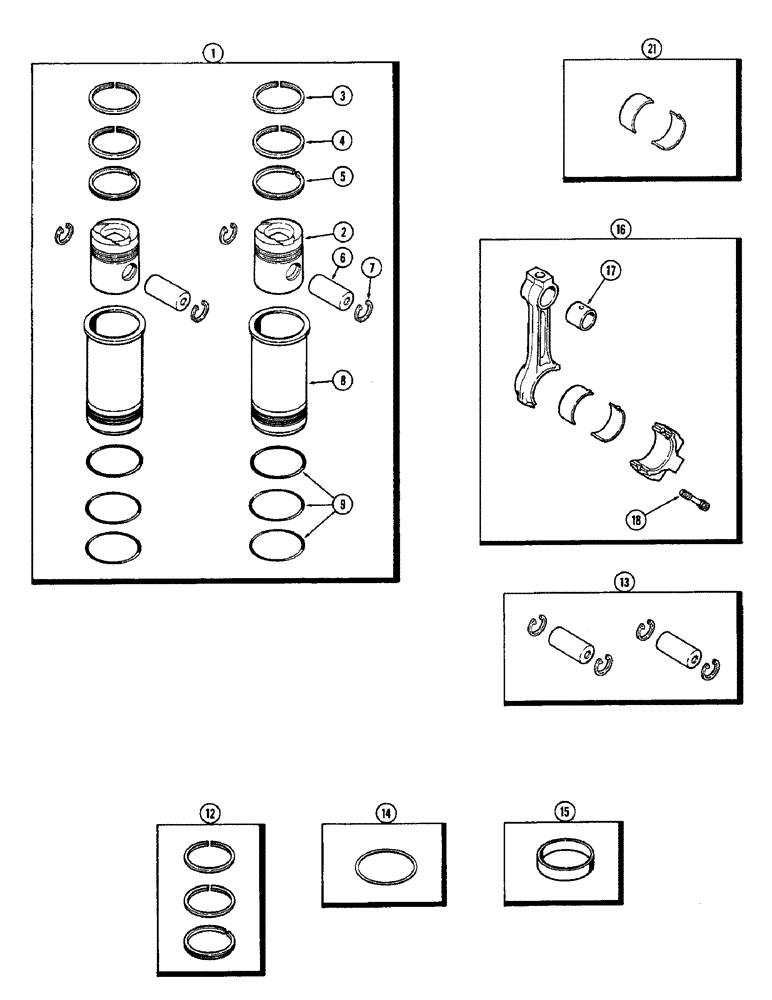

Схема запчастей Case IH 2590 - (2-46) - PISTON ASSEMBLY, WITH THREE GROOVE SLEEVE, 504BDT, DIESEL ENGINE (02) - ENGINE
1
17
21
4
9
6
13
16
5
12
14
3
8
18
7
2
15

Артикул

Название

Примечание

Количество

1

A152177

SET

PISTON AND SLEEVE KIT - (Set of 2), Includes: Refs. 2 - 9

3шт.

2

A146697

PISTON

PISTON - 4-5/8" bore (107.47 MM)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order Ref. 12)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order Ref. 12)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order Ref. 12)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. 13)

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin 1.812", Int, #181

4шт.

8

A153638

SLEEVE CYLINDER

SLEEVE - piston, three grooves

2шт.

9

A144667

O-RING,4.734" ID x 5.012" OD x 0.0139"

O-RING - sleeve

6шт.

12

A44054

RING

RING KIT - replacement (Set of 1)

6шт.

13

A44574

PIN

PIN KIT - piston, with retaining rings (Set of 2)

3шт.

14

A148554

SHIM

SHIM - sleeve, 0.005" (0.127 MM)

1шт.

14

A148553

SHIM

SHIM - sleeve, 0.010" (0.254 MM)

1шт.

15

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

BUSHING - sleeve (Repairs only)

1шт.

A150328

ADHESIVE

LOCTITE - tube (Not shown)

1шт.

16

A65032

ROD

ROD ASSEMBLY - connecting, Includes: Refs. 17 and 18

6шт.

16

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

16

AC65032

CORE-ROD CONNECTING

Core-Connecting Rod Return Part Number

6шт.

17

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

BUSHING - piston pin, connecting rods

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - cap, connecting rods

2шт.

21

A41758

BEARING LINER

LINERS - rod bearing (Set of 2) standard, connecting rods

6шт.

21

A41899

BEARING LINER

LINERS - rod bearing (Set of 2) 0.002" undersize (0.50 MM), connecting rods

6шт.

21

A41900

BEARING LINER

LINERS - rod bearing (Set of 2) 0.010" undersize (0.25 MM), connecting rods

6шт.

21

A41901

BEARING LINER

LINERS - rod bearing (Set of 2) 0.020" undersize (0.50 MM), connecting rods

6шт.

21

A41902

BEARING LINER

LINERS - rod bearing (Set of 2) 0.030" undersize (0.76 MM), connecting rods

6шт.

Выбрано товаров: 25
