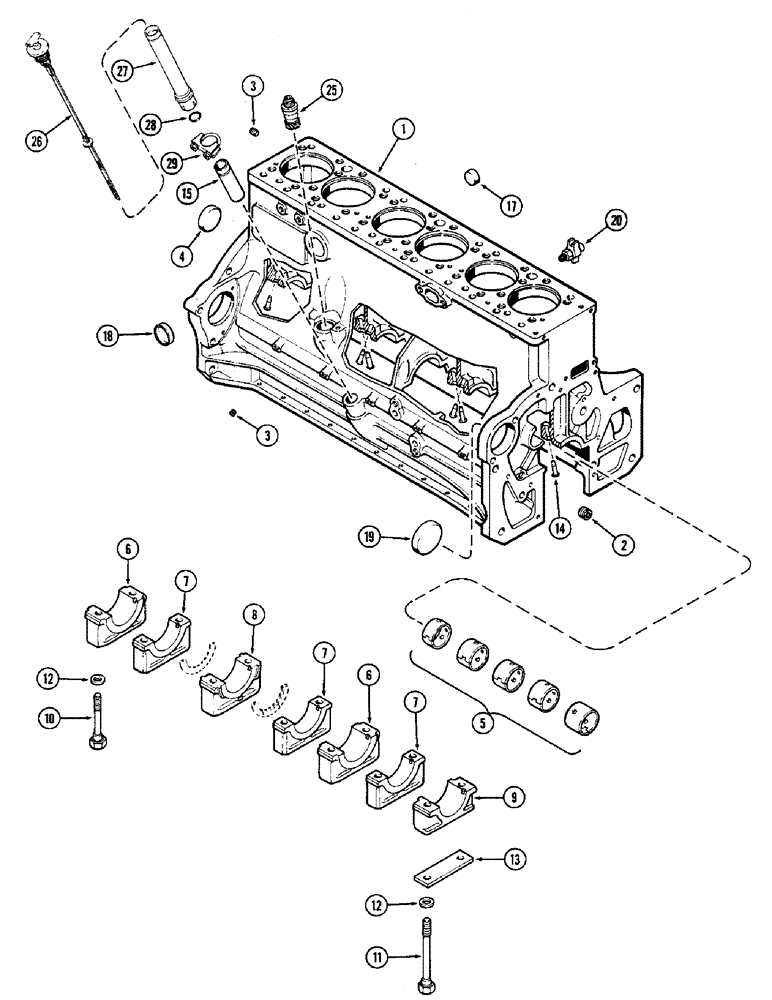

Запчасти Case IH 2590 (2-40) - CYLINDER BLOCK, 504BDT, DIESEL ENGINE (02) - ENGINE

A46038

CRANKCASE

BLOCK ASSEMBLY - short (Includes stripped block pistons, connecting rods and bearings, crankshaft and bearings, camshaft, timing gears and lifters), Includes: Refs. 1 - 20

1шт.

AR77827

REMAN-BASIC ENGINE

Remanufactured

1шт.

AC77827

CORE-BASIC ENGINE

Return Number

1шт.

1

A44077

CRANKCASE

BLOCK ASSEMBLY - stripped (Casting no. A66527)

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - oil gallery, 3/8" PT hex socket head

4шт.

3

221-1849

PLUG

PLUG - oil gallery, 1/8" PT hex socket head

6шт.

4

A24361

PLUG

PLUG - camshaft hole, 2-3/8" (60.45 MM) cup

1шт.

5

A23544

BUSHING

BUSHING SET - camshaft (See Fig. 2-38)

1шт.

6

A154398

BEARING CAP

CAP - main bearing, wide (Replaces A58562)

2шт.

7

A154397

BEARING CAP

CAP - main bearing, narrow (Replaces A58563)

3шт.

8

A154395

CAP

CAP - main bearing, thrust (Replaces A58564)

1шт.

9

A154396

BEARING CAP

CAP - main bearing, front (Replaces A63902)

1шт.

10

A66948

STEP BOLT

BOLT - 5/8 x 4-15/16" NC hex, special

12шт.

11

A66949

STEP BOLT

BOLT - 5/8 x 7-3/16" NC hex, special

2шт.

12

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 5/8 x 1 x 3/16" (15.75 x 25.4 x 4.83 MM)

14шт.

13

A58859

SHIM,.005" Thk

SHIM, , Oil pump to brg. cap (0.12 mm) .005" Thk

1шт.

14

A63903

NOZZLE CAP

NOZZLE - piston oil cooling

6шт.

15

A34540

TUBE

TUBE - oil filler and dipstick

1шт.

17

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - LH side and rear, 1-3/8" (35.05 MM) cup

3шт.

18

A58569

PLUG,Cup, 2", Stainless

PLUG - RH side heater hole, 2" (50.8 MM) cup

1шт.

19

41-1052

PLUG,Cup, 3 1/4"

PLUG - 3-1/4" (82.55 MM) cup

1шт.

20

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

25

A67178

DRIVE

DRIVE - tachometer

1шт.

26

A154242

DIPSTICK

DIPSTICK - oil level, used with 1-3/8" ID tube (34.92 MM)

1шт.

26

A67028

DIPSTICK

DIPSTICK - oil level, used with 1" ID tube (25.4 MM)

1шт.

27

A153835

TUBE

TUBE - oil filler extension, 1-3/8" ID diameter (34.92 MM)

1шт.

27

A65778

TUBE

TUBE - oil filler extension, 1" ID diameter (25.4 MM)

1шт.

28

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

O-RING - 1-1/8 x 1-3/8 x 1/8" (28.45 x 35.05 x 3.05 MM)

1шт.

29

L47766

CLAMP

CLAMP - hose (Replaces 214-256)

1шт.
