Запчасти Case IH 2590 (2-36) - VALVE MECHANISM, 504BDT, DIESEL ENGINE (02) - ENGINE

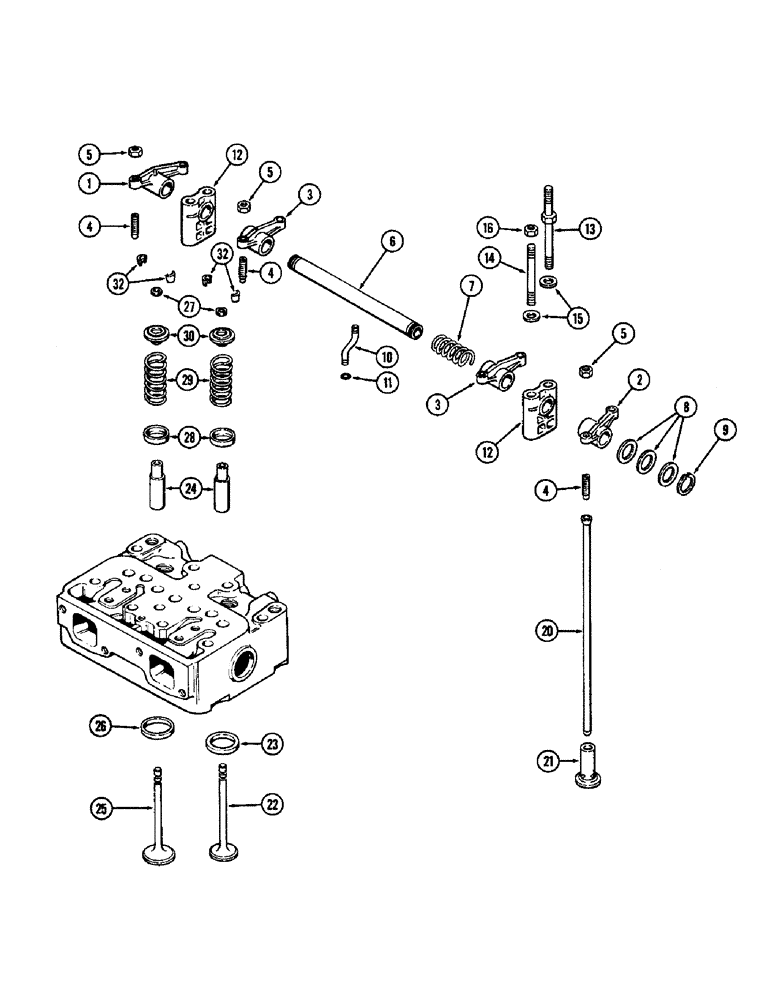

Схема запчастей Case IH 2590 - (2-36) - VALVE MECHANISM, 504BDT, DIESEL ENGINE (02) - ENGINE
20
21
32
26
10
3
1
9
29
23
12
2
25
4
6
24
11
27
14
3
4
30
7
5
5
4
16
32
8
22
13
28
15
12
5

Артикул

Название

Примечание

Количество

1

A148137

ROCKER ARM

ARM ASSEMBLY - rocker, exhaust valve (First, third and fifth cylinders), Includes: Refs. 4 and 5

3шт.

SHOULD BE STAMPED 56.

1шт.

Part of Cylinder Repair Kit, P/N G105500

1шт.

2

A148138

ARM

ASSEMBLY - rocker, exhaust valve (Second, fourth and sixth cylinders), Includes: Refs. 4 and 5

3шт.

SHOULD BE STAMPED 56.

1шт.

Part of Cylinder Repair Kit, P/N G105500

1шт.

3

A148136

ARM

ASSEMBLY - rocker, intake valve, Includes: Refs. 4 and 5

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - rocker arm

1шт.

5

86585245

SPECIAL NUT,JAM, 5/8" - 18

- 3/8" NF hex, jam

1шт.

6

A150545

SHAFT

- rocker arm (Replaces A57532)

3шт.

7

A27877

SPRING

- rocker arm shaft

3шт.

8

A27878

WASHER

- rocker arm shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker arm shaft #87, Ext

6шт.

10

A58657

TUBE

- oil, rocker arm shaft

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- 3/16 x 5/16 x 1/16" (4.83 x 7.87 x 1.52 MM)

3шт.

12

A61128

BRACKET

- rocker arm shaft

6шт.

13

A67121

STUD

- 7/16" NC x 6-1/16" special

6шт.

14

A58659

STUD

- 7/16" NC x 4-5/16"

6шт.

15

195-29

WASHER,7/16"

- 15/32 x 59/64 x 1/16" (11.91 x 23.42 x 1.59 MM)

12шт.

16

129-104

NUT,7/16"-14, G5

6шт.

20

A141841

ROD

- push

12шт.

21

A20865

TAPPET

LIFTER - push rod (Standard)

12шт.

21

A21857

TAPPET

LIFTER - push rod (0.010" oversize) (0.25 MM)

12шт.

22

A41753

VALVE

- exhaust (Set of 2)

3шт.

23

A66192

INSERT

- exhaust valve

6шт.

24

A41783

GUIDE

- intake and exhaust valves (Set of 2)

6шт.

25

A66193

VALVE

- intake (Order A44575, set of 2)

6шт.

26

A66191

INSERT

- intake valve

6шт.

27

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

28

A66328

SEAT

- intake and exhaust valve springs

12шт.

29

A66444

SPRING

- intake and exhaust valve

12шт.

30

A66336

ROTATOR

ROTOCOIL - exhaust and intake valve

12шт.

32

A27872

LOCK

- valve spring

24шт.

Выбрано товаров: 33
