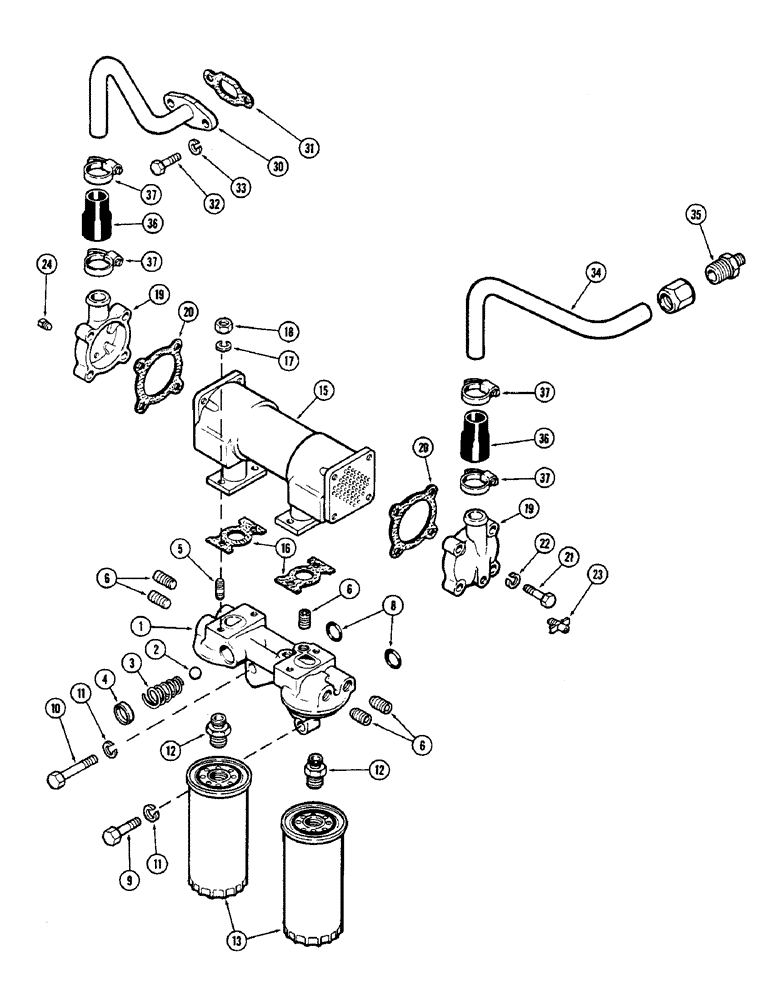

Запчасти Case IH 2590 (2-32) - OIL FILTER AND HEAT EXCHANGER, ENGINE SERIAL NUMBER 10307394 AND AFTER, 504BDT, DIESEL ENGINE (02) - ENGINE

1

A154541

BASE

ASSEMBLY - oil filter, Includes: Refs. 2 - 6

1шт.

2

211-17

BALL,3/4" Dia

- relief

1шт.

3

A146897

SPRING

- relief (Order A58669)

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- 1-1/4" (31.75 MM) cup type

1шт.

5

G102128

BOLT

- 3/8" NC x 1-17/32"

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT, square socket head

5шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- 1-1/8 x 1-5/16 x 3/16" (31.75 x 33.27 x 4.83 MM)

2шт.

9

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

11

195-33

WASHER,1/2"

- 1/2 x 1-1/16 x 1/8" (12.7 x 26.99 x 3.17 MM)

2шт.

12

A63916

ADAPTER

-, Serial Range: element-base

2шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT - filter, oil (JI Case installed only) 6-7/8" long (147.75 MM) (Order A44081)

2шт.

13

A44081

ENGINE OIL FILTER

ELEMENT - filter, oil (Service only) 8-5/8" long (218.94 MM)

2шт.

15

A75295

OIL COOLER

EXCHANGER - heat, oil

1шт.

16

A65359

GASKET

- heat exchanger to filter base

2шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

4шт.

19

A64349

HOOD

PLATE - end, heat exchanger

2шт.

20

A63920

GASKET

- bonnet

2шт.

21

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

22

92-6

LOCK WASHER,3/8"

8шт.

23

217-107

VALVE

- drain, heat exchanger

1шт.

24

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT, square head

1шт.

30

A75296

TUBE

- heat, Serial Range: exchanger-block

1шт.

31

A58670

GASKET

- tube

1шт.

32

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

33

92-8

LOCK WASHER,1/2"

2шт.

34

A75298

TUBE

- heat exchanger to water pump

1шт.

35

222-2020

FITTING

CONNECTOR - tube

1шт.

36

A64353

HOSE

- bonnets to water tubes

2шт.

37

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 to 44.45 MM)

4шт.
