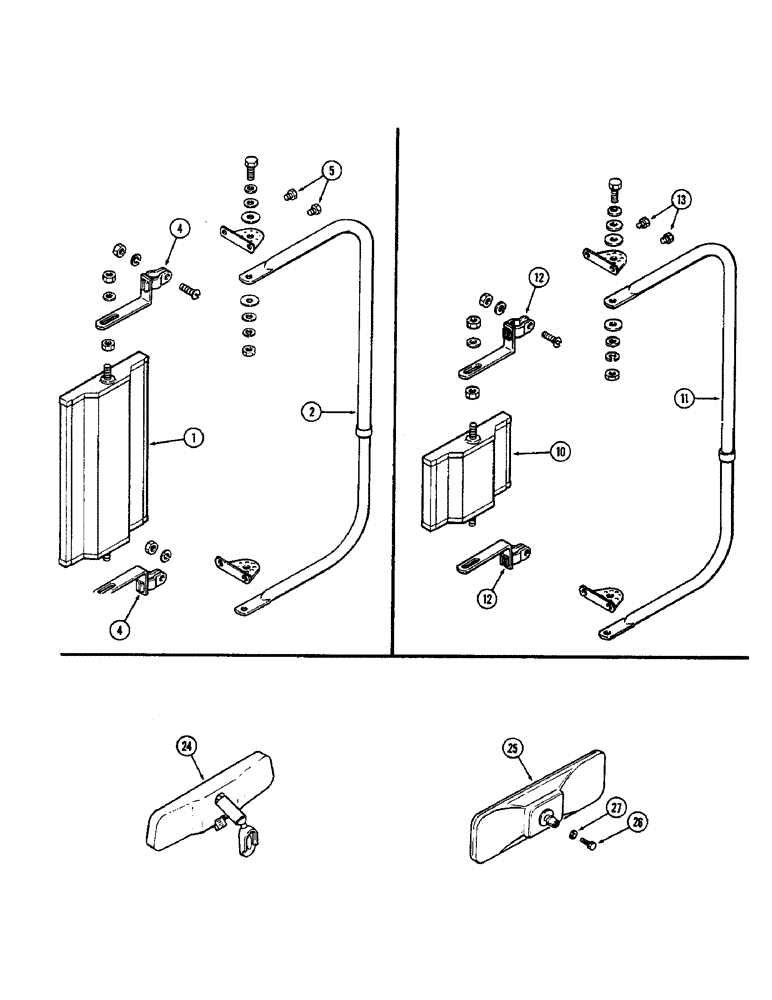

Запчасти Case IH 2590 (9-420) - CAB, MIRRORS, DUAL VISION (09) - CHASSIS/ATTACHMENTS

A61895

ATTACHMENT

- mirror (Machine item)

1шт.

1

A42765

MIRROR

- dual vision

1шт.

2

A42764

BRACKET

- mirror swing away

1шт.

4

A42767

ADAPTER

- mirror bracket

2шт.

5

187-1009

BOLT

SCREW - 1/4 x 3/8" hex, Shakeproof

4шт.

A61897

KIT

ATTACHMENT - mirror (Machine item)

1шт.

10

A42768

MIRROR

- 4 x 6 convex

1шт.

11

A42764

BRACKET

- mirror swing away, 4 x 6 convex

1шт.

12

A42767

ADAPTER

- mirror bracket, 4 x 6 convex

2шт.

13

187-1009

BOLT

SCREW - 1/4 x 3/8" hex, Shakeproof, 4 x 6 convex

4шт.

24

F64550

MIRROR

- rear view, inside rear view mirror

1шт.

Cab serial no. 12023827 and after

1шт.

25

F89695

MIRROR

- rear view, inside rear view mirror

1шт.

Prior to serial no. 12023827

1шт.

26

163-18

SCREW,Hex, #10 - 24 x 3/8"

- #10-24 x 3/8" hex, inside rear view mirror

1шт.

Prior to serial no. 12023827

1шт.

27

195-511

WASHER,#10

- 3/16 x 1/2 x 1/16" inside rear view mirror

1шт.

Prior to serial no. 12023827

1шт.
