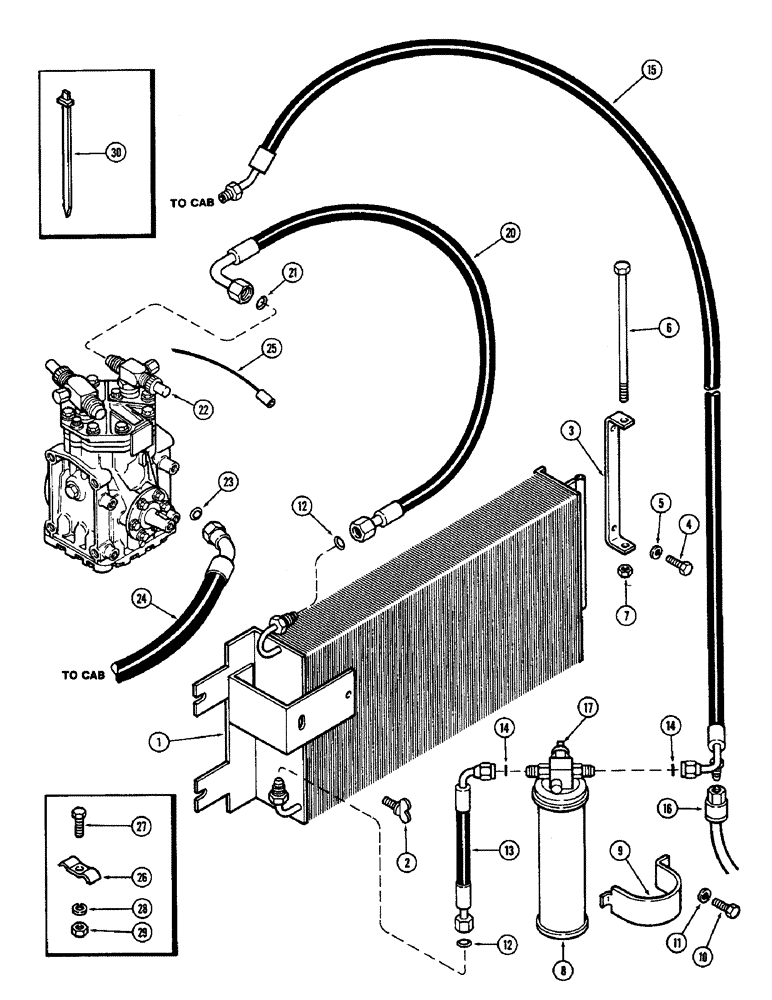

Запчасти Case IH 2590 (9-416) - AIR CONDITIONING, CONDENSER AND RECEIVER-DRIER (09) - CHASSIS/ATTACHMENTS

1

A145695

COIL

- condenser

1шт.

2

A141485

THUMB SCREW,5/16" - 18 x 5/8"

- thumb, 5/16 x 5/8"

2шт.

3

A141489

SUPPORT

BRACKET - condenser pivot

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

6

17-4136

BOLT,Sq Hd, 1/4" - 20 x 8 1/2", Gr 2

- 1/4 x 8-1/2" NC square head (Grade)

1шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

8

A76312

RECEIVER-DRYER

RECEIVER-DRIER

1шт.

9

A61193

CLAMP

-, Serial Range: receiver-drier-coil

1шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

12

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

13

A145697

TUBE

-, Serial Range: condenser-receiver-drier

1шт.

14

A61198

O-RING,0.07" Thk x 0.301" ID, -11

- 5/16 x 7/16 x 1/16" (7.78 x 11.18 x 1.52 MM)

2шт.

15

A145698

HOSE

-, Serial Range: cab-receiver-drier

1шт.

16

A65779

SWITCH

- high pressure cut out

1шт.

17

A47717

SWITCH

- receiver-drier, low pressure (Replaces A47171)

1шт.

20

A145696

HOSE

-, Serial Range: condenser-compressor

1шт.

21

222-994

GASKET,1/2 Tube, Fl, Copper

- copper, 1/2" tube x 45 degree flare

1шт.

22

A145699

VALVE

- roto lock, discharge (See Figure 9-418)

1шт.

23

222-995

SEALING WASHER,15.88mm ID

- copper, 5/8" tube x 45 degree flare

1шт.

24

F64305

HOSE

-, Serial Range: cab-compressor

1шт.

25

A61755

ELECTRICAL WIRE

WIRE - high pressure switch to clutch, 36" (914.4 MM)

1шт.

26

A63323

CLAMP

- hose

1шт.

27

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

29

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

30

A160890

STRAP

- nylon, wires and tubes (Replaces L11541)

2шт.
