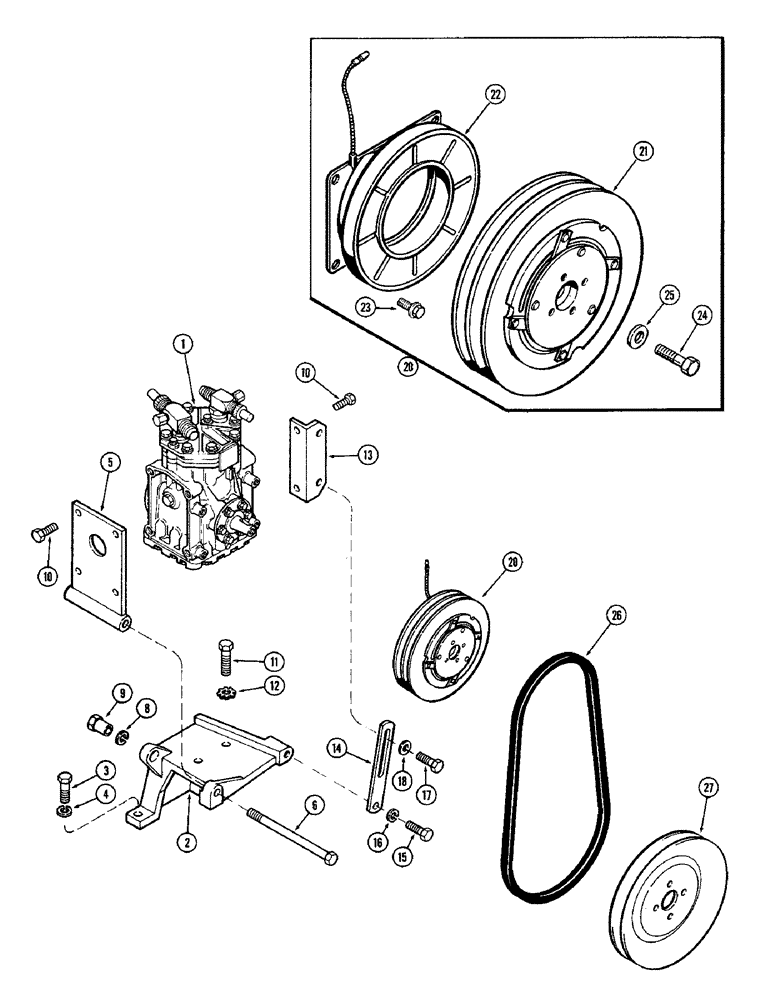

Запчасти Case IH 2590 (9-412) - AIR CONDITIONING, COMPRESSOR MOUNTING AND DRIVE, PRIOR TO P.I.N. 9906496 (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

COMPRESSOR - air conditioning (See Figure 9-418)

1шт.

2

A145507

BRACKET

SUPPORT - compressor tilt mount

1шт.

For repairs Order: 1 each of A161525, A161611, A161610, 113-2420 and 131-1182, see Figure 9-414.

1шт.

3

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

A137006

SUPPORT

- compressor tilt

1шт.

6

26-7104

BOLT,Hex, 7/16" - 14 x 6-1/2", Gr 8

- 7/16 x 6-1/2" NC hex (Grade 8)

1шт.

8

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

9

A149191

NUT

- shoulder (7/16" NC)

1шт.

10

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

6шт.

11

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

12

193-110

LOCK WASHER,Ext Tooth, 3/8"

WASHER - Shakeproof, 3/8" external

2шт.

13

A145520

BRACKET

ANGLE - tilt mount adjusting

1шт.

14

A145521

STRAP

- tilt mount adjusting

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

18

195-103

WASHER,5/16"

- 3/8 x 7/8 x 3/32" (9.52 x 22.22 x 2.38 MM)

1шт.

20

A162008

CLUTCH

ASSEMBLY - compressor (Warner electric no. I-1411-45B), Includes: Refs. 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

PULLEY - rotor

1шт.

22

NSS

NOT SOLD SEPARAT

FIELD - pulley

1шт.

23

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

24

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

- 5/16 x 1-1/4" NF hex (Grade 5)

1шт.

25

A27343

BUSHING

SPACER - clutch attaching bolt, 11/32 x 15/16 x 7/64" (8.73 x 23.81 x 2.78 MM)

1шт.

26

51200857

BELT,0.53" W x 44.55" L

Compressor drive 0.53" W x 44.55" L

1шт.

27

A145140

PULLEY

- compressor drive (On water pump)

1шт.
