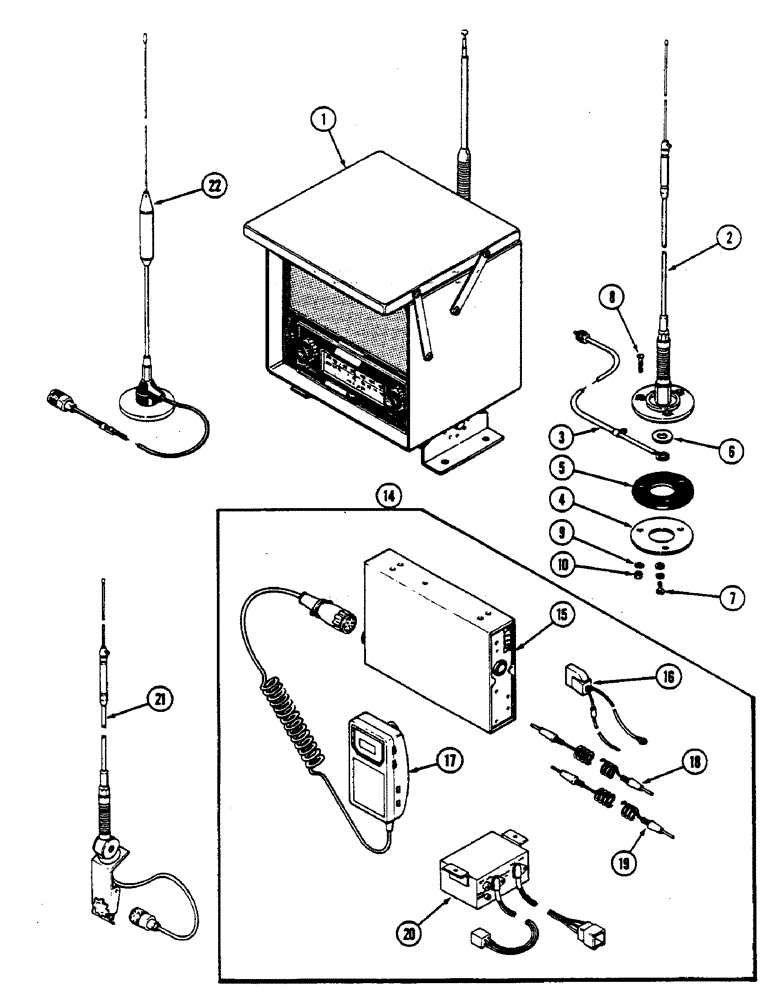

Запчасти Case IH 2590 (9-408) - CAB, RADIO KIT (09) - CHASSIS/ATTACHMENTS

1

A164225

RADIO

- AM-FM, fender mounted

1шт.

2

A149939

ANTENNA

MAST ASSEMBLY - CB antenna, Includes: Refs. 3 - 10

1шт.

3

NSS

NOT SOLD SEPARAT

CABLE - antenna

1шт.

4

NSS

NOT SOLD SEPARAT

BASE - antenna

1шт.

5

NSS

NOT SOLD SEPARAT

FLANGE - insulator

1шт.

6

195-513

WASHER,#10

- 7/32 x 1/2 x 3/64" (5.56 x 12.7 x 1.19 MM)

1шт.

7

182-525

SCREW,Sl Pan Hd, #10 - 32 x 3/8"

- #10-32 x 3/8" round slotted head

1шт.

8

182-538

SCREW,Slotted Pan Hd, #10-32 x 1"

- #10-32 x 1" round slotted head

3шт.

9

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex Sems

4шт.

14

A162520

RADIO KIT - CB, Includes: Refs. 15 - 20

1шт.

Used on tractors equipped with radio only.

1шт.

15

NSS

NOT SOLD SEPARAT

UNIT - CB radio transceiver, CB- radio attachment kit

1шт.

16

NSS

NOT SOLD SEPARAT

HARNESS - transceiver, CB- radio attachment kit

1шт.

17

NSS

NOT SOLD SEPARAT

MICROPHONE - CB transmitting, CB- radio attachment kit

1шт.

18

NSS

NOT SOLD SEPARAT

WIRE - relay control, 3/32" diameter plug-in (2.34 MM), CB- radio attachment kit

1шт.

19

NSS

NOT SOLD SEPARAT

WIRE - output, 9/64" diameter plug-in (3.45 MM), CB- radio attachment kit

1шт.

20

NSS

NOT SOLD SEPARAT

RELAY - control box, CB- radio attachment kit

1шт.

21

A162517

ANTENNA

- CB radio, CB- radio attachment kit

1шт.

22

A147274

ANTENNA - CB radio, magnetic mount, CB- radio attachment kit

1шт.
