Запчасти Case IH 2590 (2-26) - VERTICAL MUFFLER, 504BDT, DIESEL ENGINE (02) - ENGINE

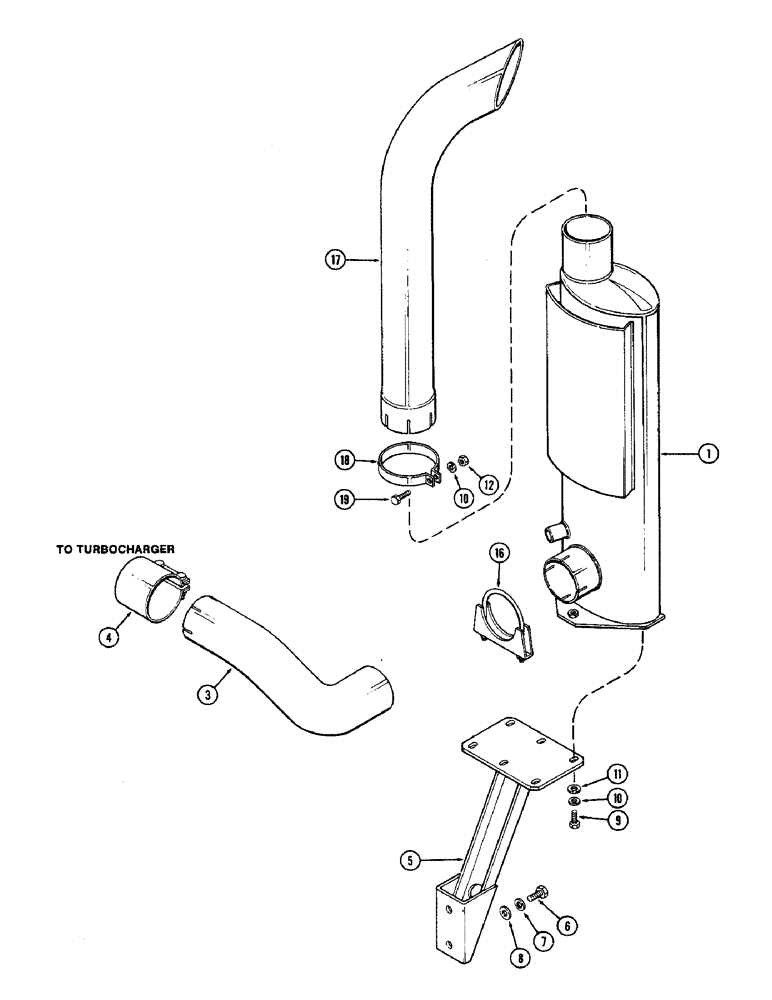

Схема запчастей Case IH 2590 - (2-26) - VERTICAL MUFFLER, 504BDT, DIESEL ENGINE (02) - ENGINE
19
10
6
9
4
18
8
16
10
5
1
12
7
11
17
3

Артикул

Название

Примечание

Количество

1

A147100

MUFFLER

- aspirated

1шт.

3

A147104

PIPE

- exhaust, Serial Range: turbocharger-muffler

1шт.

4

A149249

ASSEMBLY

SEAL - clamp, turbocharger to exhaust pipe

1шт.

5

A147103

SUPPORT

- muffler

1шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

195-106

WASHER,1/2"

- 9/16 x 1-3/8 x 7/64" (14.29 x 34.92 x 2.78 MM)

2шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

3шт.

12

129-770

NUT,3/8"-16, G5

- 3/8" NC hex, black (Replaces 129-103)

1шт.

16

A162896

CLAMP

- muffler to clamp mounting bracket (Replaces A56092)

1шт.

17

A141777

EXTENSION

- exhaust

1шт.

18

A162895

CLAMP

- muffler to extension (Replaces A147097)

1шт.

19

113-2222

CAPSCREW,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT - 3/8 x 1-1/4" NC hex, black (Replaces 113-208)

1шт.

Выбрано товаров: 16
