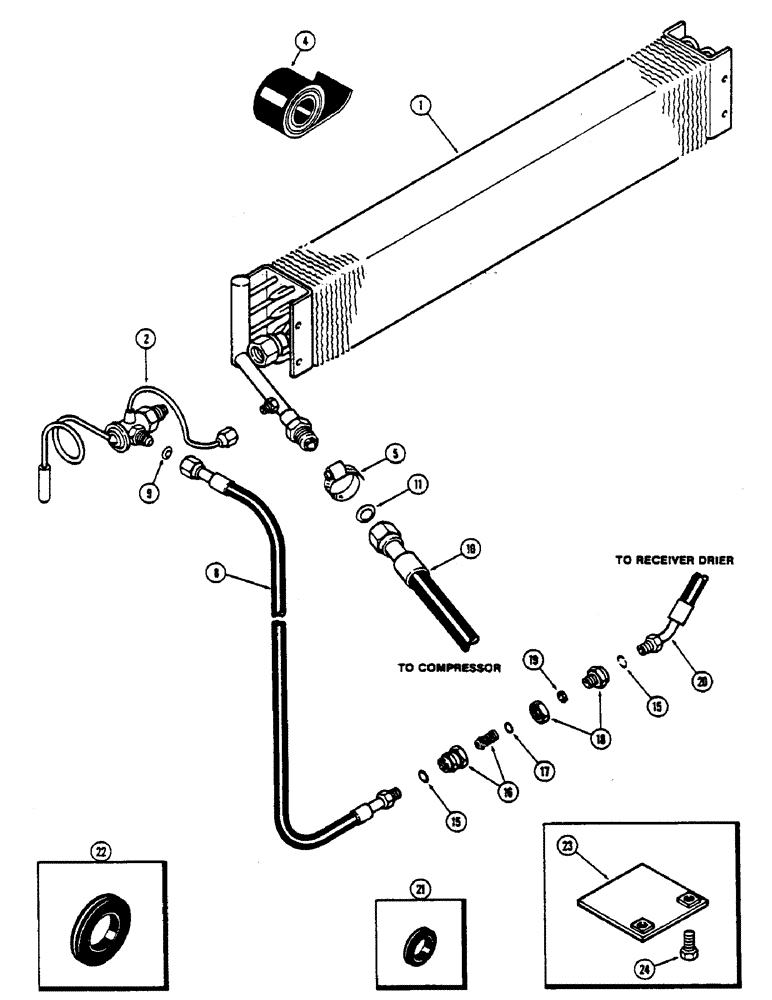

Запчасти Case IH 2590 (9-398) - CAB, AIR CONDITIONING COOLING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

F63870

EVAPORATOR

- evaporator

1шт.

2

F64389

VALVE

- expansion

1шт.

4

345-37

TAPE

- insulation, 2-1/2 x 12 x 1/8" (63.5 x 304.8 x 3.05 MM)

1шт.

5

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - insulation, 1-3/16 to 1-3/4"

1шт.

8

F64304

HOSE

- high side, 5/16" ID x 153" long (7.87 x 3886.2 MM) (To coupling)

1шт.

9

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

10

F64305

HOSE

- low side, 1/2" ID x 153" (12.7 x 3.88 M) long (To compressor)

1шт.

11

222-996

GASKET,3/4 Tube, Fl, Copper

- copper, 3/4" tube x 45 degree flare

1шт.

15

A61195

O-RING,0.364" ID x 0.5" OD

- 23/64 x 1/2 x 1/16" (9.14 x 12.7 x 1.52 MM)

2шт.

16

A42663

COUPLING,1/2" - 20 NPT

COUPLING ASSEMBLY - high side to receiver-drier hose, Includes: Ref. 17

1шт.

17

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

- coupling piston

1шт.

18

A61196

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - receiver-drier hose to cab, Includes: Ref. 19

1шт.

19

A42667

GASKET

- COUPLING

1шт.

20

A145698

HOSE

- to receiver-drier (See Figure 9-416)

1шт.

21

353-478

PLUG

- 3/4" ID Heyco

1шт.

22

353-496

PLUG

- 1" ID Heyco

1шт.

23

F98190

PLATE

- hose support (Order F98238)

1шт.

24

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.
