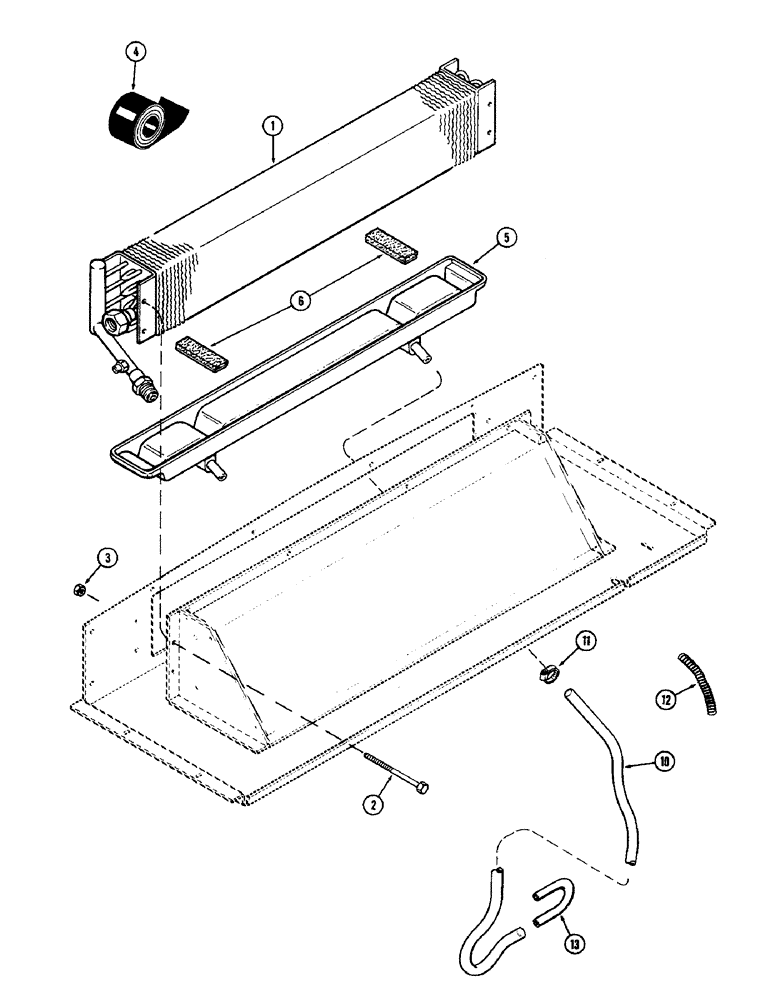

Запчасти Case IH 2590 (9-394) - CAB, AIR CONDITIONING EVAPORATOR SYSTEM, PRIOR TO CAB SERIAL NUMBER 12029327 (09) - CHASSIS/ATTACHMENTS

1

F63870

EVAPORATOR

- evaporator, air conditioning

1шт.

2

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- 1/4 x 4" NC hex (Grade 5)

4шт.

3

86625061

NUT,1/4"-20, GB

NUT - 1/4" NC hex lock

4шт.

4

345-37

TAPE

- cork insulator, core end 2-1/2 x 12 x 1/8" (63.5 x 304.8 x 3.05 MM)

3шт.

5

F63684

PAN

- condensation

1шт.

6

F63670

SEAL

- pan to core, 1 x 3-1/2 x 1/4" (25.4 x 88.9 x 6.35 MM)

2шт.

10

NSS

NOT SOLD SEPARAT

HOSE - drain, clear plastic, 75" long (1905.0 MM) (Order A42698)

2шт.

A42698

HOSE

- 1/2" ID x 50' roll (14.7 x 15240 MM) (Cut to desired length)

1шт.

11

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16" (14.22 x 26.92 MM)

4шт.

12

F63327

SPRING

- stiffener, drain hose

2шт.

13

F63873

TUBE

- drain

2шт.
