Запчасти Case IH 2590 (9-389A) - CAB, BLOWER ASSEMBLY, CAB SERIAL NUMBER 12051570 AND AFTER (09) - CHASSIS/ATTACHMENTS

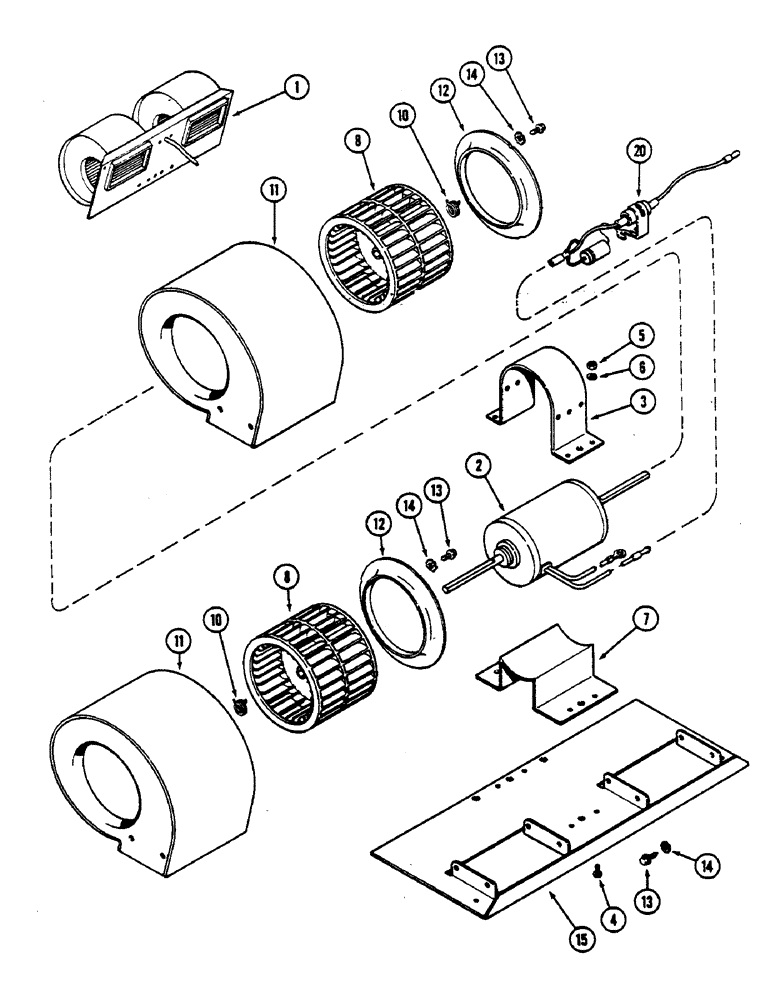

Схема запчастей Case IH 2590 - (9-389A) - CAB, BLOWER ASSEMBLY, CAB SERIAL NUMBER 12051570 AND AFTER (09) - CHASSIS/ATTACHMENTS
13
11
4
14
13
12
8
14
2
20
10
8
3
7
11
14
5
1
13
6
12
10
15

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

BLOWER ASSEMBLY - cab air, Includes: Refs. 2 - 15

1шт.

2

F42775

MOTOR, ELECTRIC

MOTOR - blower

1шт.

3

F63438

CLAMP

- motor

1шт.

4

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

- #10-24 x 1/2" Phillips head

4шт.

5

129-17

NUT,Hex, #10 - 24

NUT - hex #10-24

4шт.

6

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

7

F63439

MOUNTING PARTS

MOUNT - motor

1шт.

8

F64551

BLOWER,Fan

- plastic (Replaces A64551)

2шт.

10

F44948

SPRING

CLIP - fan retaining

2шт.

11

F89797

HOUSING

- blower

2шт.

12

F63655

RETAINER

EYE - inlet

2шт.

13

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, #10-16 x 1/2" hex washer head

12шт.

14

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

12шт.

15

F63616

BASE

- mounting

1шт.

20

F64184

CAPACITOR

- radio noise

1шт.

Выбрано товаров: 15
