Запчасти Case IH 2590 (9-385A) - CAB, HEADLINER AND LOUVERS, CAB SERIAL NUMBER 12050251 AND AFTER (09) - CHASSIS/ATTACHMENTS

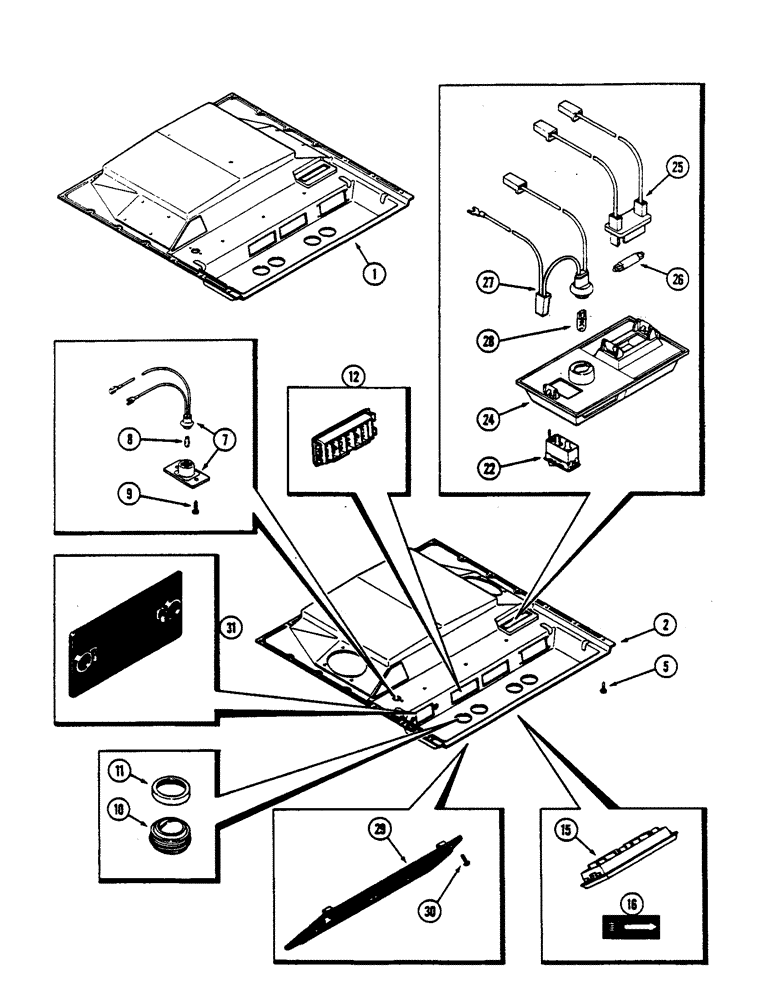

Схема запчастей Case IH 2590 - (9-385A) - CAB, HEADLINER AND LOUVERS, CAB SERIAL NUMBER 12050251 AND AFTER (09) - CHASSIS/ATTACHMENTS
24
12
2
10
22
25
31
26
9
1
30
27
8
7
16
29
5
15
11
26

Артикул

Название

Примечание

Количество

1

F64498

ROOF LINING

HEADLINER - cab (Without radio)

1шт.

2

F64388

LINING

HEADLINER - cab (With radio)

1шт.

5

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - #10-16 x 3/4" Phillips, special

22шт.

7

F98171

LAMP

ASSEMBLY - courtesy, Includes: Ref. 8

1шт.

8

D71346

TAIL LAMP,12V

BULB - lamp, no. 168

1шт.

9

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" Phillips, self tapping

2шт.

10

F64132

GUARD

LOUVER - aiar deflection, ball type

4шт.

11

F64131

RING

- retainer, louver

4шт.

12

F89948

GUARD

LOUVER - air deflection, rectangle

2шт.

15

F98149

GUARD

LOUVER - defroster

1шт.

16

321-3842

DECAL

- defroster

1шт.

22

F64130

SWITCH

- dome lamp

1шт.

F64310

LAMP

ASSEMBLY - dome, Includes: Refs. 24 - 28

1шт.

24

F64366

LAMP

HOUSING ASSEMBLY - dome lamp, includes lens

1шт.

25

F64365

CONNECTOR, ELEC

SOCKET MODULE - bulb

1шт.

26

F64364

BULB,12V

- lamp, no. 561

1шт.

27

F64375

HARNESS

- lamp wire

1шт.

28

F64363

BULB

- lamp, no. 161

1шт.

29

F64386

COVER

- radio rear

1шт.

30

187-1095

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - #8-18 x 1/2" round head self tapping

4шт.

31

F64278

COVER

- radio cutout (Front)

1шт.

Выбрано товаров: 21
