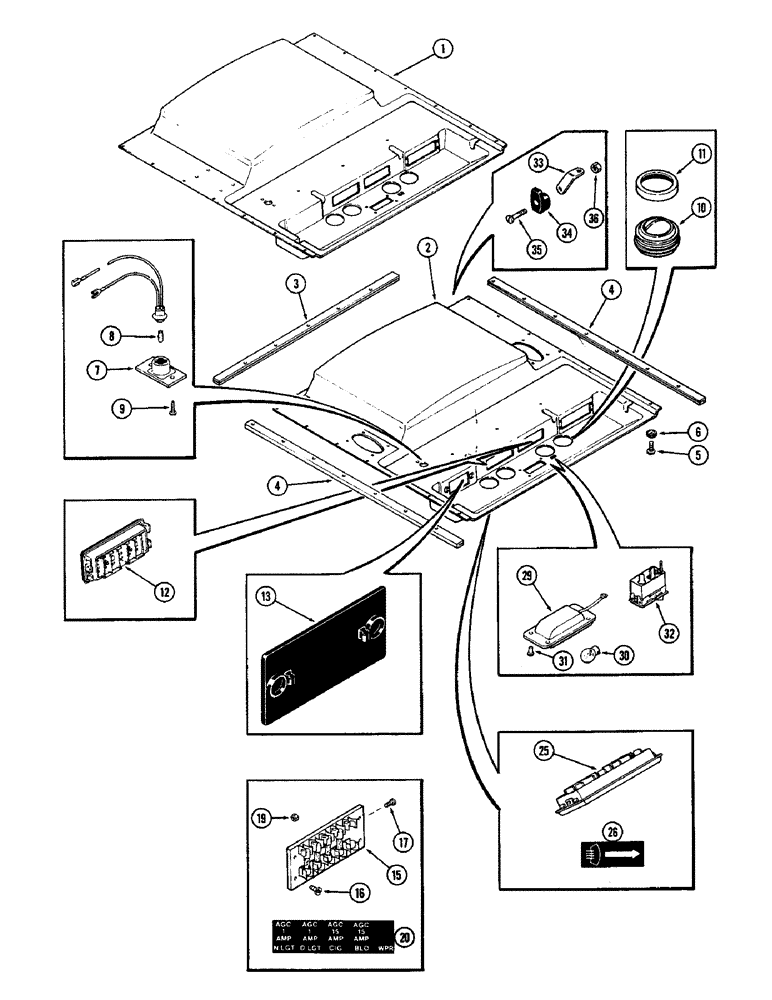

Запчасти Case IH 2590 (9-382) - CAB, HEADLINER AND LOUVERS, PRIOR TO CAB SERIAL NUMBER 12013067 (09) - CHASSIS/ATTACHMENTS

1

F64128

LINING

HEADLINER - cab (Without radio)

1шт.

2

F64129

LINING

HEADLINER - cab (With radio)

1шт.

3

F63799

MOLDING

TRIM - rear, headliner

1шт.

4

F63800

MOLDING

TRIM - side, headliner

2шт.

5

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - #10-16 x 3/4" Phillips, self tapping

22шт.

6

F63765

WASHER

- finishing

22шт.

7

F98171

LAMP

ASSEMBLY - courtesy, Includes: Ref. 8

1шт.

8

D71346

TAIL LAMP,12V

BULB - lamp, No. 168

1шт.

9

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - #10-24 x 1/2" Phillips, self tapping

2шт.

10

F64132

GUARD

LOUVER - air deflection, ball type

4шт.

11

F64131

RING

- retainer, louver

4шт.

12

F89948

GUARD

LOUVER - air deflection, rectangle

2шт.

13

F64278

COVER

- headliner (Used without radio)

1шт.

15

F98113

BLOCK

- fuse (Includes buss bar)

1шт.

16

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #8-15 x 5/8" round head Phillips self tapping

4шт.

17

173-218

SCREW,Sl Rnd Hd, #5 - 40 x 1/2"

- #5-40 x 1/2" round head, brass

2шт.

19

129-630

NUT,#5-40, Brass

- #5-40 hex., brass

3шт.

20

321-3850

DECAL

- fuse block

1шт.

25

F98149

GUARD

LOUVER - defroster

1шт.

26

321-3842

DECAL

- defroster

1шт.

29

F89772

LAMP

ASSEMBLY - dome, Includes: Ref. 30

1шт.

30

B50217

BULB

- lamp

1шт.

31

151-526

RIVET,Pop, 1/8" x .337"

4шт.

32

F64130

SWITCH

- dome lamp

1шт.

33

F64355

BRACKET

- cost hook

1шт.

34

F64352

HOOK

- coat

1шт.

35

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

- 1/4-20 x 1" flat slotted head

1шт.

36

86625061

NUT,1/4"-20, GB

NUT - 1/4"-20 hex

1шт.

37

F64386

COVER

- radio rear

1шт.

38

187-1095

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - #8-18 x 1/2" round head self tapping

4шт.
