(9-380) - CAB, ACOUSTICAL COVERS, PRIOR TO CAB SERIAL NUMBER 12030191

Запчасти Case IH 2590 (9-380) - CAB, ACOUSTICAL COVERS, PRIOR TO CAB SERIAL NUMBER 12030191 (09) - CHASSIS/ATTACHMENTS

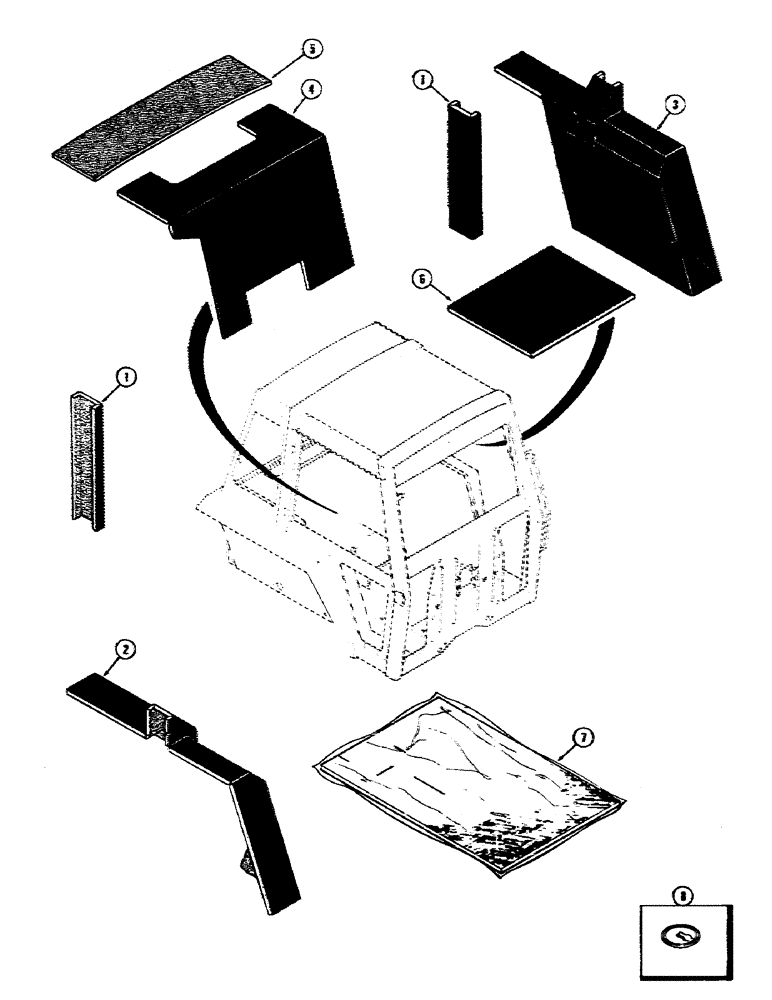

Схема запчастей Case IH 2590 - (9-380) - CAB, ACOUSTICAL COVERS, PRIOR TO CAB SERIAL NUMBER 12030191 (09) - CHASSIS/ATTACHMENTS
6
8
2
4
1
1
7
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F64440

COVER

- rollbar

2шт.

2

F64438

COVER

- rear panel, right

1шт.

3

F64439

COVER

- rear panel, left

1шт.

4

F64435

COVER

- fuel tank

1шт.

5

F63352

FOAM

COVER - heat barrier, upper rear

1шт.

6

F64434

COVER

- headliner

1шт.

7

F64422

MAT

- under floor

1шт.

8

R37160

RETAINER

- mat

15шт.
