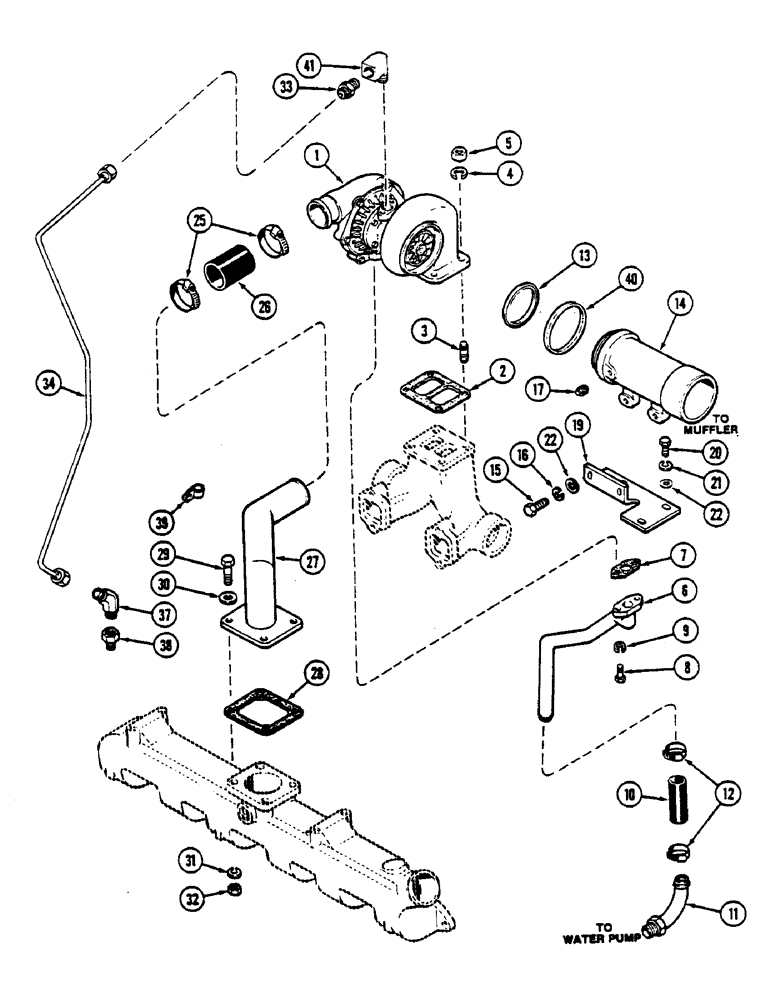

Запчасти Case IH 2590 (2-22) - TURBOCHARGER SYSTEM, 504BDT, DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER - (See Fig. 2-24)

1шт.

2

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

1шт.

3

G102128

BOLT

- 3/8" NC x 1-17/32"

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - 3/8" NC hex., Seezpruf

4шт.

6

A62518

TUBE

- oil drain

1шт.

7

A58892

GASKET,1.59mm Thk

- oil drain tube

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

A156842

HOSE,22.2 mm ID x 88.90 mm, SAE 30R1 TYPE 1 PER SAE J30

0.90" ID x 3.50", SAE 30R1 type 1 per SAE J30 - Drain to fitting

1шт.

11

A58897

FITTING

- drain

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 x 44.45 MM)

2шт.

13

A138817

RING,2.64mm Thk

SEAL - exhaust

1шт.

14

A152392

FITTING

- exhaust

1шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

221-12

PLUG,Sq Hd, 1/4"-18

- 1/4" PT square head

1шт.

19

A152391

BRACKET

- exhaust fitting

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

21

92-6

LOCK WASHER,3/8"

3шт.

22

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 mm)

5шт.

25

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

(45.97 x 69.85 mm) #36, 1.81/2.75 Type F Worm

2шт.

26

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

- Elbow 2.00" ID x 2.88"

1шт.

27

A150450

ELBOW

- air intake, turbocharger

1шт.

28

A58910

GASKET

- air intake elbow

1шт.

29

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

30

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 mm)

4шт.

31

92-6

LOCK WASHER,3/8"

4шт.

32

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

4шт.

33

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - 3/8" tube x 3/8" PT

1шт.

34

A153800

TUBE

- oil supply, turbocharger (Replaces A151802)

1шт.

37

222-4095

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

- 45 degree

1шт.

38

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- bushing, 3/8" PT to 1/4" PT

1шт.

39

49845

CLAMP

CLIP - oil supply tube

1шт.

40

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger exhaust (Used as a tool in assembly only)

1шт.

41

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- 90 degree

1шт.
