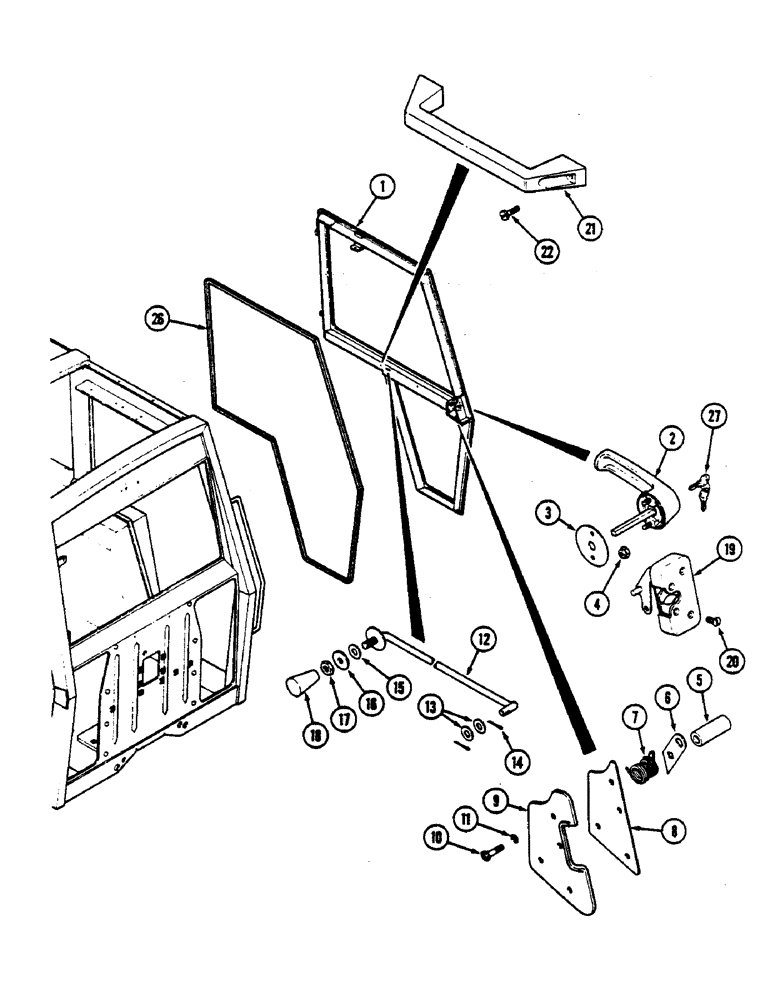

Запчасти Case IH 2590 (9-367A) - CAB, DOOR AND LATCH (09) - CHASSIS/ATTACHMENTS

F98193

DOOR

ASSEMBLY - complete (Includes glass) , Includes: Refs. 1 - 26

1шт.

Order glass from Figure 9-374.

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR

1шт.

2

F64346

HANDLE

- outer

1шт.

3

F64342

GASKET,1.6mm Thk

- handle

1шт.

4

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

5

F64358

SPACER

- latch shaft, 7/16 x 3/4 x 2" (11.13 x 19.05 x 50.80 MM)

1шт.

6

F64371

ARM

- latch

1шт.

7

F64338

SPRING

- latch handle

1шт.

8

F98227

COVER

- latch, door

1шт.

9

F64357

COVER

- latch, door

1шт.

10

182-547

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- 1/4 x 1/2" NC special

4шт.

11

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - 1/4" lock special

4шт.

12

F98226

ROD

- latch pull

1шт.

13

F64384

WASHER

- 17/64 x 9/16 x 1/32" (6.73 x 14.22 x 0.76 MM)

2шт.

14

136-157

COTTER PIN,Int, 9/64" x .054"

PIN - cotter, 1/16 x 29/32"

2шт.

15

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, 25/64 x 3/4 x 1/32" (9.91 x 19.05 x 0.76 MM)

1шт.

16

F64340

WASHER

WASHR - shoulder

1шт.

17

131-1280

JAM NUT,Jam, 1/4"-20

NUT - lock, jam special

1шт.

18

F64341

KNOB

- latch rod

1шт.

19

F64296

LATCH

- door rotary

1шт.

20

182-555

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

- 1/4 x 1/4" NC special

4шт.

21

F64547

HANDLE

- door, inner (Replaces F64344)

1шт.

22

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- 1/4 x 3/4" NC pan head

2шт.

26

F64267

DOOR SEAL

STRIP - weather, door frame 181" long (4597.4 MM)

1шт.

27

A77313

SET OF 2 KEYS

KEY - door lock (Set of 2) (Also used as ignition key)

1шт.
