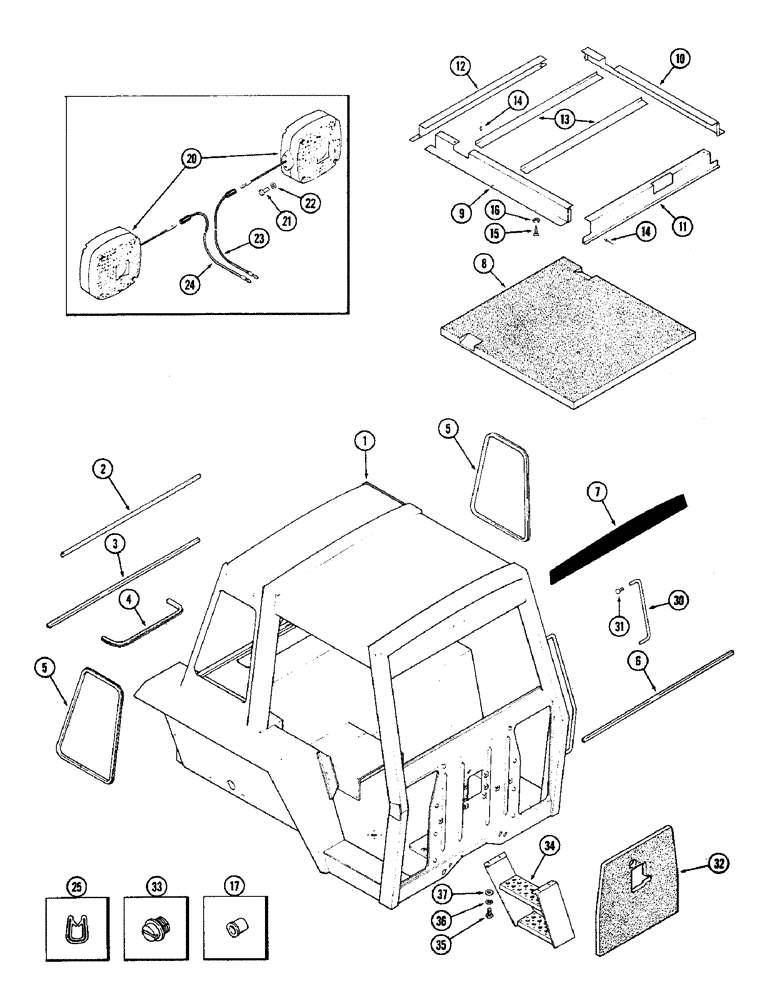

Запчасти Case IH 2590 (9-362) - 4 POST PROTECTIVE FRAME, PRIOR TO P.I.N. 8841101 (09) - CHASSIS/ATTACHMENTS

F89968

ENCLOSURE - protective (Machine item) (Order F98203), Includes: Refs. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

ENCLOSURE - welded (Order F89968)

1шт.

2

NSS

NOT SOLD SEPARAT

TRIM - rear window, upper, 45" (1143.0 MM) long (Order F64277)

1шт.

3

NSS

NOT SOLD SEPARAT

TRIM - rear window, lower, 51" (1295.4 MM) long (Order F64277)

1шт.

4

NSS

NOT SOLD SEPARAT

TRIM - horizontal window, 32-3/4" (831.85 MM) long (Order F64277)

1шт.

5

NSS

NOT SOLD SEPARAT

TRIM - rear side window, 81-1/2" (2070.1 MM) long (Order F64277)

2шт.

6

NSS

NOT SOLD SEPARAT

TRIM - front window, 49-1/2" (1262.3 MM) long (Order F64277)

1шт.

7

A42582

DECAL

- front panel (Black)

1шт.

8

F64125

LINING

HEADLINER - foam

1шт.

9

F63968

PANEL

- headliner support, R.H.

1шт.

10

F63969

PANEL

- headliner support, L.H.

1шт.

11

F63970

PANEL

- headliner support, front

1шт.

12

F63971

PANEL

- headliner support, rear

1шт.

13

F64123

BRACKET

ANGLE - headliner support panels

2шт.

14

151-526

RIVET,Pop, 1/8" x .337"

Special Pop, 1/8" x .337"

16шт.

15

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10-16 x 3/4" special

19шт.

16

F63765

WASHER

- finishing

19шт.

17

353-700

BUSHING

- heyco

2шт.

20

REF

INSTRUCTION

LAMP - flasher warning (See Figure 4-136)

2шт.

21

113-38

BOLT,Hex, 1/4" - 20 x 5/8", Gr 2

SCREW - 1/4 x 5/8" NC hex (Grade 2)

4шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

23

F63878

ELECTRICAL WIRE

WIRE - warning light, R.H., 120" (3048.0 MM) long

1шт.

24

F63879

WIRE - warning light, L.H., 75" (1905.0 MM) long

1шт.

25

F64277

SEAL

TRIM - window (50' roll) (15.2 M)

1шт.

30

A143834

HANDLE

- 4 post entrance

1шт.

31

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

2шт.

32

A147357

PAD

- firewall noise

1шт.

33

353-550

PLUG,Slotted, 1/2"-13

Plastic, In lifting holes Slotted, 1/2"-13

4шт.

34

F98176

STEP

- mounting

1шт.

35

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

37

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32" (11.11 x 22.22 x 2.38 MM)

4шт.
