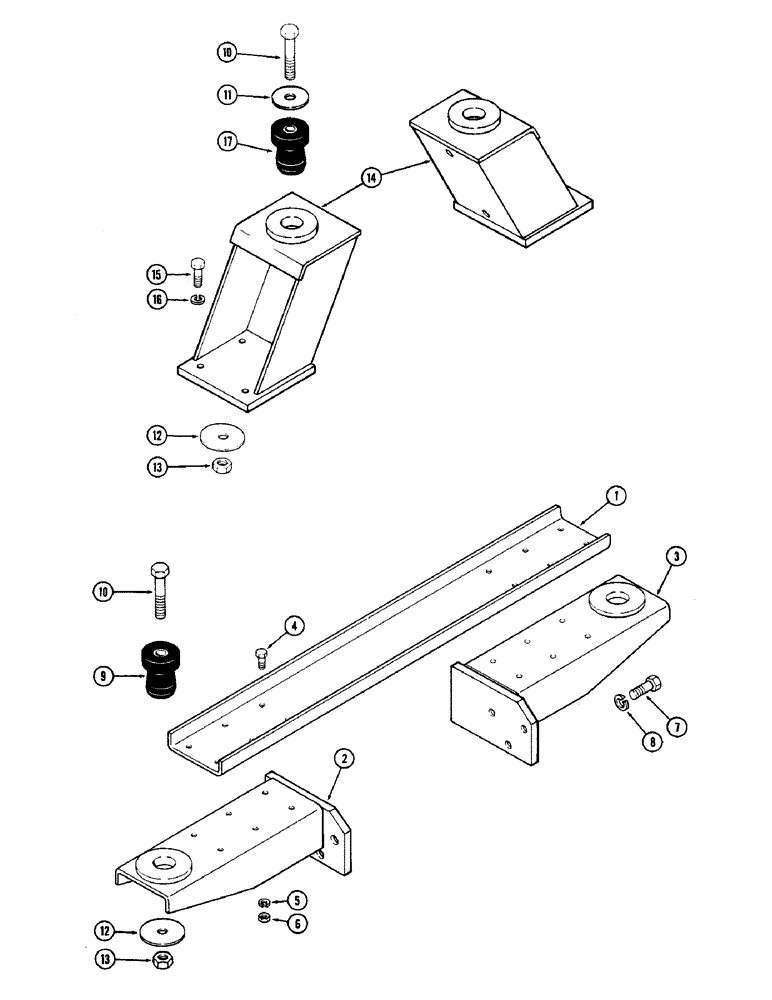

Запчасти Case IH 2590 (9-358) - CAB AND 4 POST PROTECTIVE FRAME, FRONT AND REAR MOUNTS (09) - CHASSIS/ATTACHMENTS

1

A135535

RAIL

- cab mount support

1шт.

2

A149741

MOUNTING PARTS

BRACKET - cab mounting, R.H. front

1шт.

3

A149740

MOUNTING PARTS

BRACKET - cab mounting, L.H. front

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

5

92-6

LOCK WASHER,3/8"

12шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

12шт.

7

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

9

A141452

SHOCK ABSORBER

MOUNT - cab front, rubber (Color code black)

2шт.

10

113-2636

SCREW

BOLT - 5/8 x 4-1/4" NC hex (Grade 5)

4шт.

11

195-208

WASHER - 11/16 x 1-3/4 x 9/64" (Rear bolts only) (17.46 x 44.45 3.57 MM)

2шт.

12

A141470

WASHER

- cab mount snubbing, 21/32 x 3 x 1/4" (16.76 x 76.2 6.35 MM)

4шт.

13

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, , Esna 5/8"-11, GC

4шт.

14

A149667

MOUNTING PARTS

MOUNT - cab rear

2шт.

15

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

16

92-8

LOCK WASHER,1/2"

8шт.

17

A141451

SHOCK ABSORBER

MOUNT - cab rear, rubber (Color code red)

2шт.
