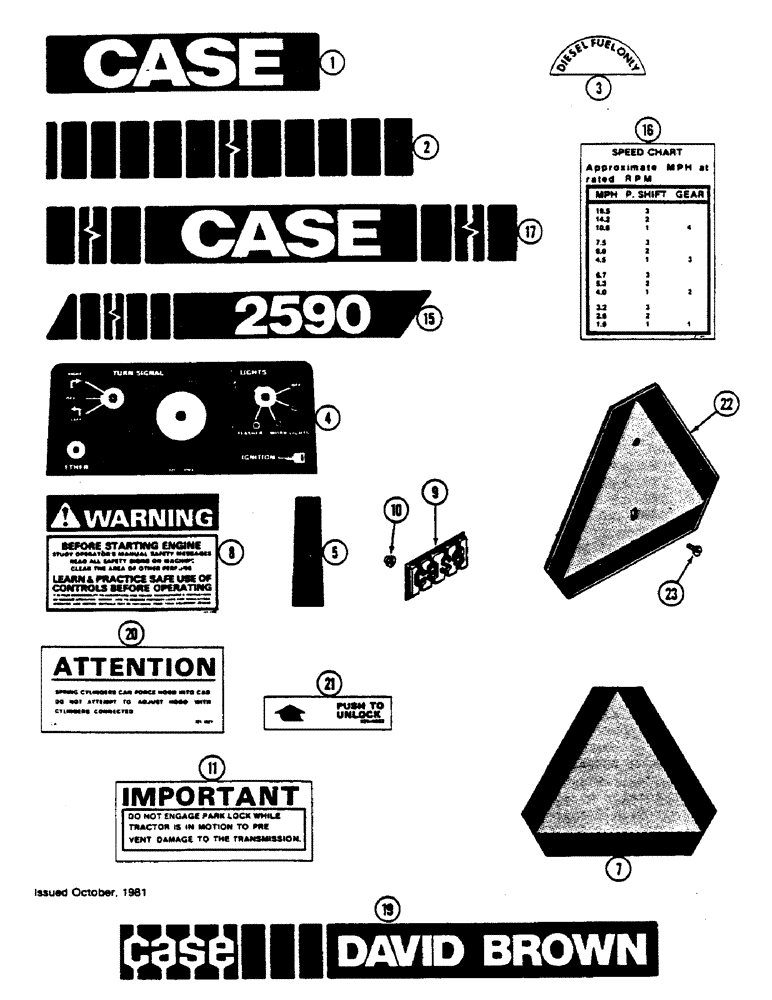

Запчасти Case IH 2590 (9-354) - DECALS, TRACTOR KIT (09) - CHASSIS/ATTACHMENTS

A46505

DECAL

KIT - decal, tractor, Includes: Refs. 1 - 10

1шт.

1

321-4911

DECAL

- Case (R.H. and L.H. decal panel)

2шт.

2

321-4910

DECAL

- with stripes (R.H. and L.H. decal panel)

2шт.

3

321-4493

DECAL

- diesel fuel (On filler cap)

1шт.

4

321-3703

DECAL

- control panel (On steering column)

1шт.

5

321-4142

DECAL

- sight line (On hood)

1шт.

7

321-4311

DECAL

- slow moving vehicle (On fuel tank)

1шт.

8

321-3705

DECAL

- starting instructions

1шт.

9

321-4739

EMBLEM

MEDALLION - front, Case mark

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - 1/4" self thread (Medallion to grille)

2шт.

11

321-5264

DECAL

- park lock

1шт.

15

321-4918

DECAL

- 2590, with stripes, R.H. panel

1шт.

15

321-4919

DECAL

- 2590, with stripes, L.H. panel

1шт.

16

321-5653

DECAL

- speed chart

1шт.

17

321-4920

DECAL

- Case, rear cab window

1шт.

19

321-5266

DECAL

- Case - David Brown (Export only)

1шт.

20

321-4621

DECAL

- attention, tilt hood adjust

2шт.

21

321-4622

DECAL

- hood unlatch instruction

1шт.

22

A163604

DECAL

EMBLEM - slow moving vehicle (On fuel tank)

1шт.

23

182-540

SCREW,Sl Pan Hd, 1/4" - 20 x 3/8"

- SMV emblem retaining, 1/4 x 3/8" NC pan head slotted

2шт.

A143220

DECAL

KIT - safety decals (See Figure 9-356)

1шт.

A46520

DECAL

KIT - decal, French language (Not shown)

1шт.
