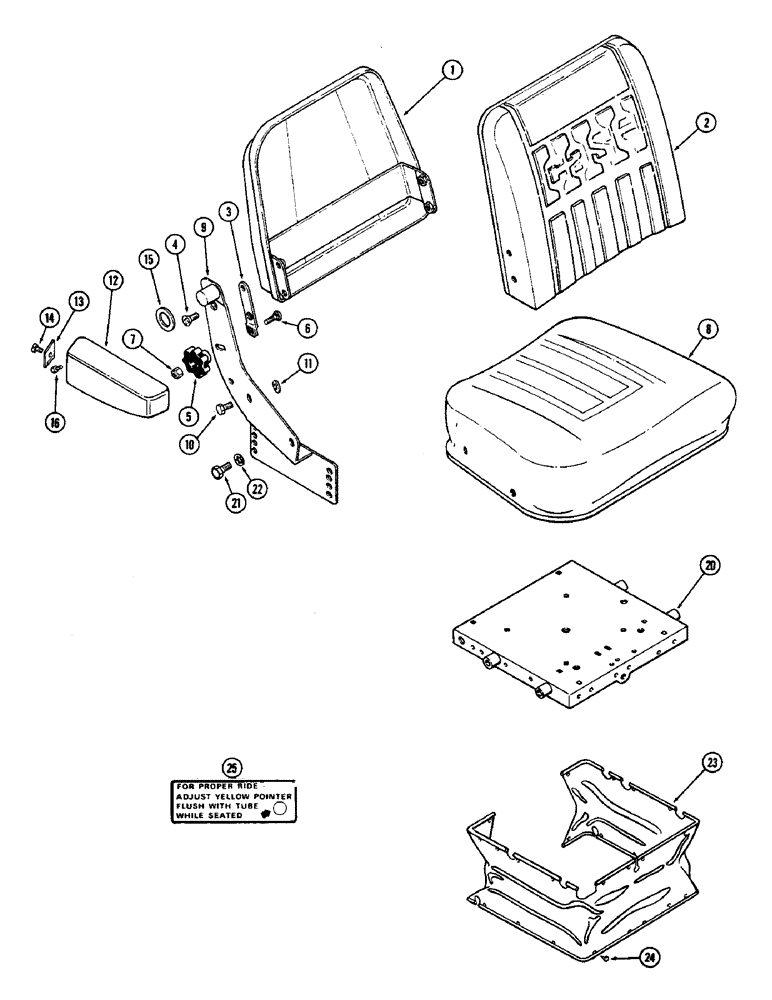

Запчасти Case IH 2590 (9-350) - SEAT, VINYL WITHOUT SWIVEL (09) - CHASSIS/ATTACHMENTS

A139547

SEAT

AND SUSPENSION ASSEMBLY - vinyl without swivel, Includes: Refs. 1 - 25 and backrest assembly, P/N A45571

1шт.

A45571

CUSHION

BACKREST ASSEMBLY - cushion, Includes: Refs. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

PAN - backrest

1шт.

2

NSS

NOT SOLD SEPARAT

PAD AND COVER - bracket

1шт.

3

NSS

NOT SOLD SEPARAT

LINK - tilt, backrest

2шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- 3/8 x 1" NC flat head Phillips (Grade 5)

2шт.

5

A45487

BUTTON

KNOB - tilt, backrest

2шт.

6

A45527

CARRIAGE BOLT

- 3/8 x 1-1/2" NC RH carriage

2шт.

7

131-206

NUT,3/8"-16

NUT - 3/8" NC hex jam

2шт.

8

A45570

CUSHION

SEAT - cushion

1шт.

9

A45579

BRACKET

- R.H. side

1шт.

9

A45580

BRACKET

- L.H. side

1шт.

10

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- 1/2 x 1-1/2" NC hex (Grade 5)

2шт.

11

A45519

WASHER

SPACER - cushion

12шт.

12

A45489

ARMREST

- R.H.

1шт.

12

A45488

ARMREST

- L.H.

1шт.

13

A45584

COVER

PLATE - R.H. armrest

1шт.

13

A45583

PLATE

COVER PLATE - L.H. armrest

1шт.

14

187-130

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - #10 x 5/8" NC self tapping

2шт.

15

192-33

LOCK WASHER,1 1/8"

WASHER, LOCK, 1 1/8"

2шт.

16

178-17

SET SCREW,Hex Soc, #10-24 x 1/2"

SCREW - #10 x 1/2" NC hex socket head

2шт.

20

NSS

NOT SOLD SEPARAT

PLATE - upper housing

1шт.

21

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

22

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

23

A45576

BOOT

- suspension

1шт.

24

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

RIVET - snap button, 1/2"

24шт.

25

321-3721

DECAL

- instruction

1шт.
