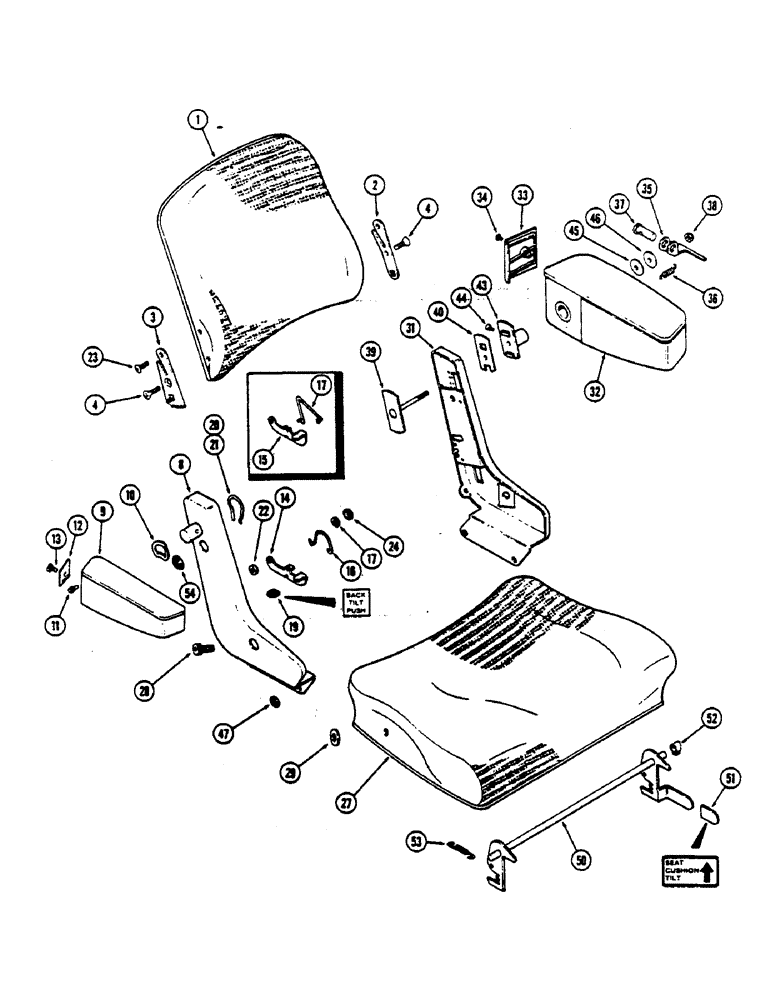

Запчасти Case IH 2590 (9-342) - SWIVEL SEAT ASSEMBLY, ARMS AND BACKREST (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A161408
SEAT
AND SUSPENSION ASSEMBLY
1шт.
A47348
BACKREST
ASSEMBLY, Includes: Refs. 1 - 4
1шт.
1
NSS
NOT SOLD SEPARAT
CUSHION - bracket
1шт.
2
A47365
LINK
- tilt, L.H.
1шт.
3
A47364
LINK
- tilt, R.H.
1шт.
4
171-228
SCREW,Sl Flat Hd, 3/8" - 16 x 1"
- 3/8 x 1" NC flat head Phillips
2шт.
8
A47351
BRACKET
- R.H. arm rest (Early production)
1шт.
8
A47628
BRACKET
- R.H. arm rest (Late production)
1шт.
9
A45489
ARMREST
- R.H.
1шт.
10
A47352
WASHER
- wave, R.H.
1шт.
11
61-3256
HEX SOC SCREW,1/4"-20 x 3/8"
SCREW - armrest, R.H. (1/4 x 1/2" NC socket head)
1шт.
12
A45584
COVER
PLATE - R.H. armrest
1шт.
13
187-330
SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"
SCREW - #10 x 5/8" pan head self tapping
1шт.
14
A47630
LATCH
- tilt, backrest (Late production)
1шт.
15
A47356
LATCH
- tilt, backrest (Early production) (Order A47630)
1шт.
16
A47631
SPRING
- tilt latch, R.H. (Late production)
1шт.
17
A47357
SPRING
- tilt latch, R.H. (Early production)
1шт.
18
195-521
WASHER,5/16", SAE
- 11/32 x 11/16 x 1/16" (8.73 x 17.46 x 1.59 MM)
1шт.
19
A47702
CAP
- tilt latch, R.H. (Replaces A47358)
1шт.
20
A47353
SPRING
- tilt link, R.H.
1шт.
21
A47354
SPRING
- tilt link, L.H.
1шт.
22
A47355
BUSHING
SPACER - tilt link, R.H. and L.H.
2шт.
23
164-551
HEX SOC SCREW,Btn Hd, 3/8" - 16 x 1"
SCREW - 3/8 x 1" NC butt head
2шт.
24
131-432
LOCK NUT,Push, 5/16"
NUT - Push, 5/16"
2шт.
27
A47349
SEAT
CUSHION
1шт.
28
A47781
BOLT,Hex Flg, 1/2" - 13 x 1.25", Gr 5
- 1/2 x 1-1/4" NC socket head
2шт.
29
A45110
WASHER
- fiber, seat retainer
2шт.
31
A47780
BRACKET
- L.H. arm rest (Replaces A47366)
1шт.
32
A47373
ARMREST
- L.H.
1шт.
33
A47377
COVER
PLATE - L.H. armrest
1шт.
34
187-333
SCREW,Slotted Pan Hd, #10 x 1"
- #10 x 1" pan head self-tapping
1шт.
35
A47374
HANDLE
- adjusting cam release
1шт.
36
A47375
SPRING
- handle
1шт.
37
A47376
PIN
- handle pivot
1шт.
38
131-203
LOCK NUT,3/8"-16, GB, LH
NUT - lock, 3/8" NC hex
1шт.
39
A47367
PLATE
- handle back up
1шт.
40
A47368
BUSHING
SPACER - plate
1шт.
43
A47369
COLLAR
BOSS - handle pivot
1шт.
44
61-3256
HEX SOC SCREW,1/4"-20 x 3/8"
SCREW - pivot lock (1/4 x 1/2" socket head) (Replaces A47370)
2шт.
45
A47371
WASHER
- fiber
1шт.
46
A47372
WASHER
- hardened steel
1шт.
47
131-425
PUSH-ON NUT,Push, 1/2"
NUT, LOCK, (Seat to suspension) Push, 1/2"
4шт.
50
A47346
LEVER
- tilt, seat assembly
1шт.
51
A47347
CAP
- tilt lever
1шт.
52
A45482
BUSHING
SPACER - tilt lever shaft
2шт.
53
NLS
NO LONGER SERVICED
- tension, tilt lever shaft
2шт.
54
353-252
PLUG,1"
- cap, hole 1"
2шт.
Выбрано товаров: 47
