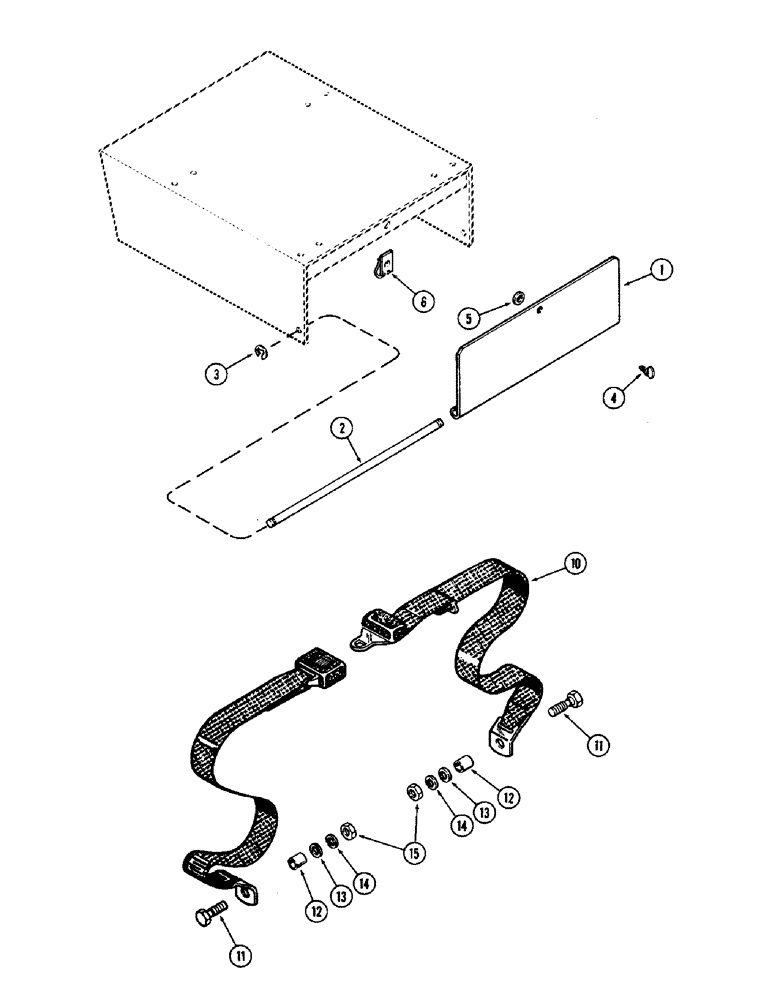

Запчасти Case IH 2590 (9-340) - TOOL BOX (09) - CHASSIS/ATTACHMENTS

1

A139437

DOOR

- tool box

1шт.

2

A145882

SHAFT

- door hinge

1шт.

3

A27810

CIRCLIP,#X31, .243" Dia, E-Type

Ring, Retaining, #X31, .243" Dia, E-Type

2шт.

4

A149108

STUD

- wing head, door retaining

1шт.

5

A61045

RETAINER

RETAINING - washer, door stud

1шт.

6

131-135

SPRING NUT,Tinn, U, 1/4"-20

Speed Tinn, U, 1/4"-20

1шт.

10

A160404

SAFETY BELT

BELT - seat safety (Replaces A66391)

1шт.

11

A61946

STEP BOLT

BOLT - shoulder, safety seat belt

2шт.

12

A60907

BUSHING

SPACER - anchor bolt, safety seat belt

2шт.

13

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16" (11.91 x 23.42 x 1.59 mm), safety seat belt

2шт.

14

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Safety seat belt 7/16"

2шт.

15

425-117

NUT,7/16"-20, G5

- 7/16" NC hex, safety seat belt

2шт.
