(2-18) - COLD START ASSISTANCE, 504BDT, DIESEL ENGINE, ETHER INJECTION KIT, FIELD INSTALLED

Запчасти Case IH 2590 (2-18) - COLD START ASSISTANCE, 504BDT, DIESEL ENGINE, ETHER INJECTION KIT, FIELD INSTALLED (02) - ENGINE

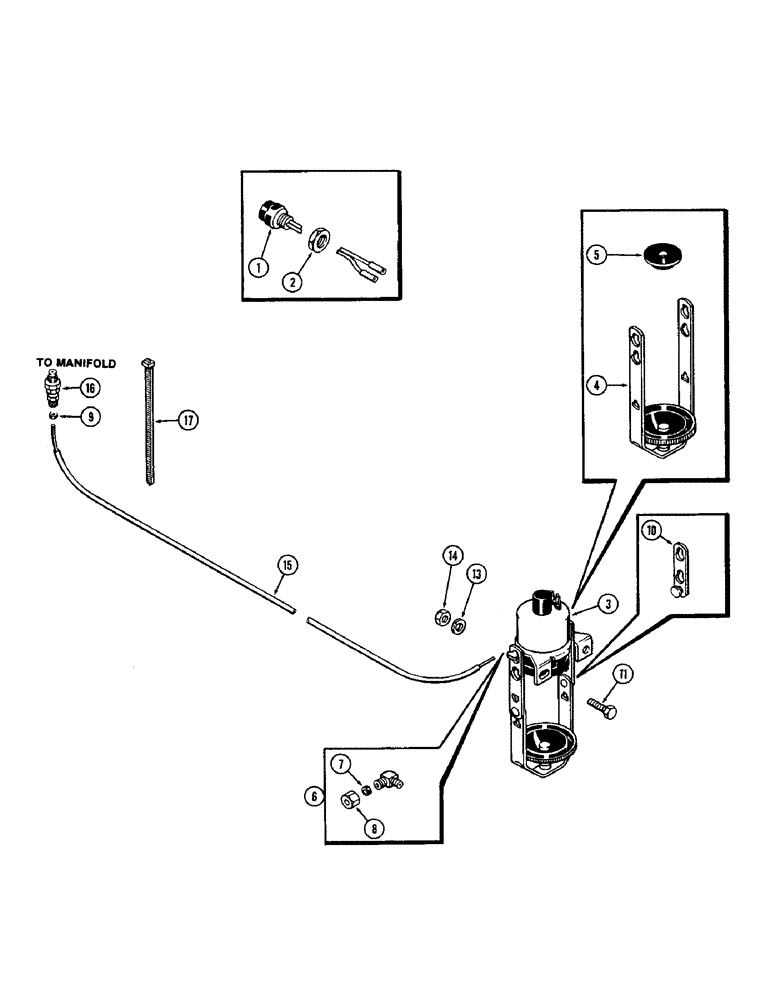

Схема запчастей Case IH 2590 - (2-18) - COLD START ASSISTANCE, 504BDT, DIESEL ENGINE, ETHER INJECTION KIT, FIELD INSTALLED (02) - ENGINE
14
2
8
5
10
3
17
1
9
15
16
11
13
4
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A143376

KIT

- ether start, Includes: Refs. 1 - 17

1шт.

1

A135520

SWITCH

- Ether Solenoid

1шт.

2

129-127

NUT,5/8"-18, G5

1шт.

3

A143381

SOLENOID

ASSEMBLY - ether injection, Includes: Refs. 4 - 6

1шт.

4

A45687

CLAMP

BAIL - solenoid

1шт.

5

R30786

GASKET

- can

1шт.

6

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Assy, Check valve 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

7

222-650

SLEEVE,1/8" Tube, Comp

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- for 1/8" tube 5/16"-24, 45º Fl, Comp

1шт.

9

222-650

SLEEVE,1/8" Tube, Comp

1шт.

10

R30812

LINK

- bail extension

2шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

A149932

TUBE

solenoid to injector - 2006 mm (79 in)

1шт.

16

A145070

NOZZLE INJECTION

INJECTOR - nozzle

1шт.

17

A160890

STRAP

CLIP - nylon strap, tube (Replaces L11541)

4шт.
