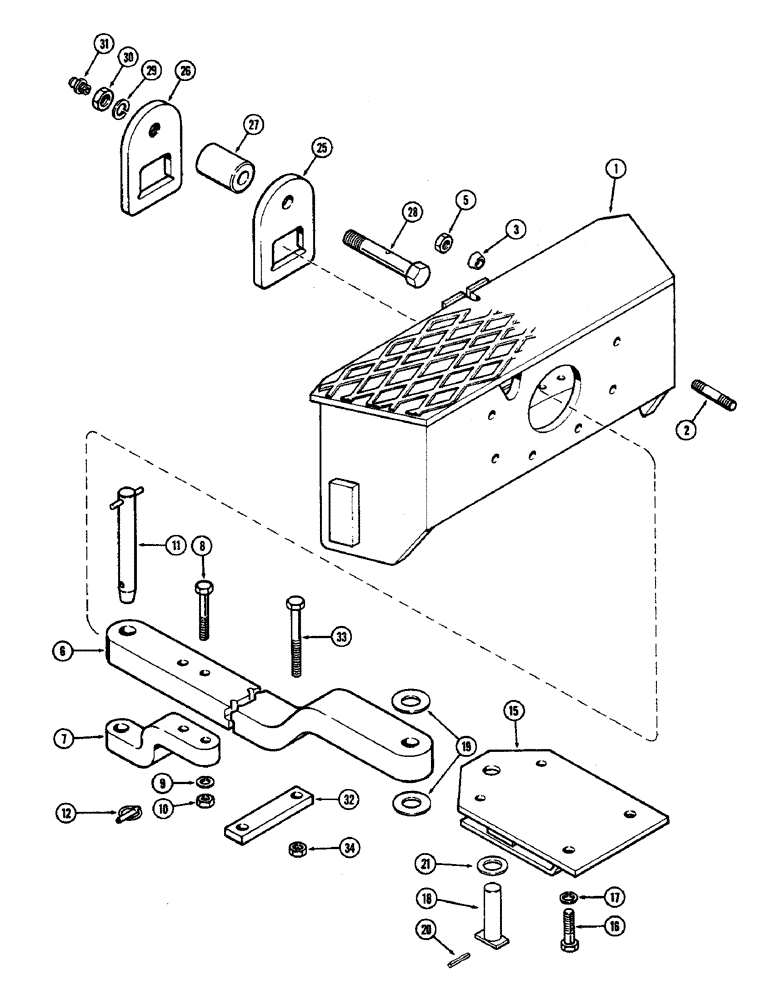

Запчасти Case IH 2590 (9-322) - DRAWBAR, WITHOUT HITCH (09) - CHASSIS/ATTACHMENTS

1

A149231

SUPPORT

ASSEMBLY - drawbar

1шт.

2

A64109

STUD

- 5/8" NC x 3-1/2"

6шт.

3

A64167

PIN

DOWEL - support mounting

6шт.

5

129-563

NUT,5/8"-11, G8

- 5/8" NC hex

6шт.

6

A160849

DRAWBAR, SWINGING

DRAWBAR - (Replaces A65753)

1шт.

A61836

KIT

- drawbar yoke (Machine item), Includes: Refs. 7 - 12

1шт.

7

A61557

DRAWBAR CLAMP

STRAP - hammer

1шт.

8

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

9

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

10

129-108

NUT,3/4"-10, G5

2шт.

11

A65760

PIN

ASSEMBLY - drawbar, Includes: Ref. 12

1шт.

12

A61560

LOCK PIN

PIN - klik

1шт.

15

A139416

BRACKET

- drawbar pivot

1шт.

16

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- 3/4 x 2-1/2" NC hex (Grade 8)

1шт.

17

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

18

A65748

PIN

- drawbar pivot

1шт.

19

A63595

WASHER

- anti rattle

2шт.

20

138-2029

PIN,7.92mm OD x 63.5mm L, Coiled

1шт.

21

195-2120

WASHER,1.28" ID x 2" OD x 0.24" Thk

- 1-9/32 x 2 x 15/64" (32.5 x 50.8 x 2.95 MM)

1шт.

25

A65754

PLATE

- drawbar hanger

1шт.

26

A135433

PLATE

- drawbar hanger (Threaded)

1шт.

27

A135435

ROLLER

- drawbar

1шт.

28

A135434

BOLT

- roller, drilled

1шт.

29

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

30

129-110

NUT,1"-8, G5

1шт.

31

219-22

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

1шт.

32

A63600

STRAP

- drawbar clamp

1шт.

33

13-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 5

- 5/8 x 5-3/4" NC hex (Grade 5)

2шт.

34

129-107

NUT,5/8"-11, G5

2шт.
