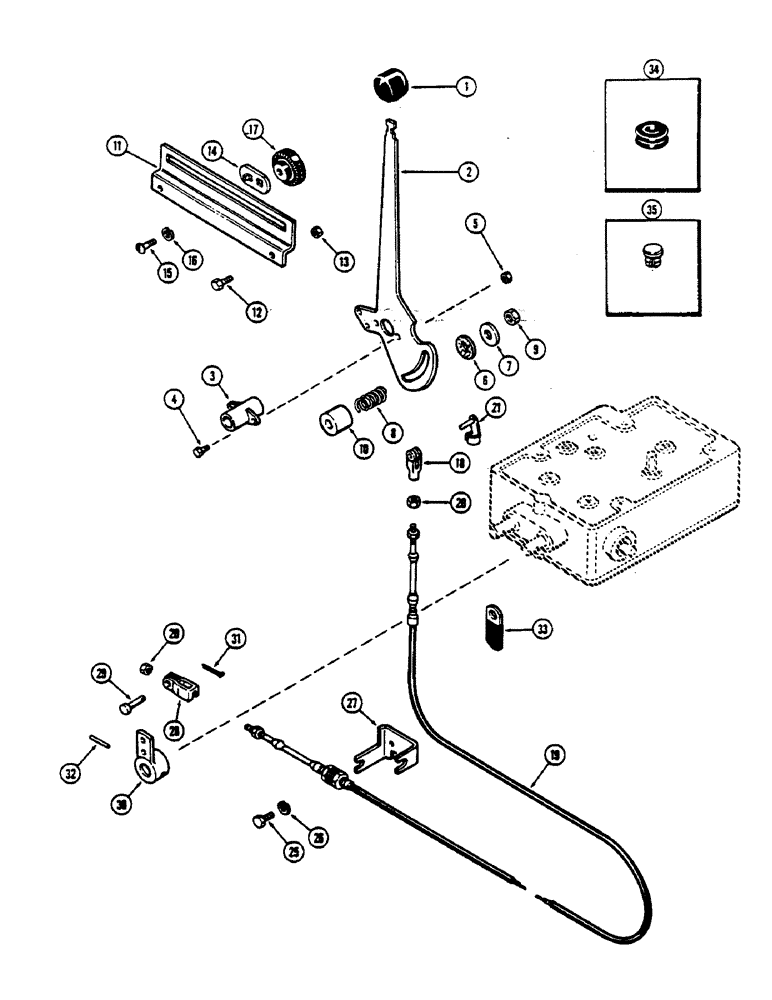

Запчасти Case IH 2590 (8-298) - HITCH SYSTEM, HITCH CONTROLS (08) - HYDRAULICS

1

A139945

KNOB

- hitch hand lever

1шт.

2

A141390

LEVER

- hand, hitch

1шт.

3

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING - lever (Replaces A141371)

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

6

A61069

DISC

- friction

1шт.

7

195-2172

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 14 gauge (11.11 x 31.75 x 1.98 MM)

1шт.

8

A65583

SPRING

- friction disc

1шт.

9

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" NC hex jam

2шт.

10

A160623

BUSHING

SPACER - lever

1шт.

11

A141539

SUPPORT

QUADRANT - hitch hand lever

1шт.

12

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

G15950

STOP

- quadrant hand lever

1шт.

15

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

17

A143181

NUT

- hand lever

2шт.

18

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - cable to lever (Replaces A141286)

1шт.

19

A67299

CABLE

- hitch control

1шт.

20

193-1000

NUT,Keps, w/LW,#10-32

- #10 NF hex Keps

2шт.

21

A149683

PIN

- spring clevis, 3/16"

1шт.

25

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

A160639

BRACKET

- control cable (Replaces A65264)

1шт.

28

A65265

YOKE

- cable to lower lever

1шт.

29

141-51

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16"

1шт.

30

A63037

LEVER

- hitch control

1шт.

31

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

32

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

33

A37179

CLIP

- cable

1шт.

34

A145925

GROMMET

- cable

1шт.

35

A67295

PLUG

- cable

1шт.
