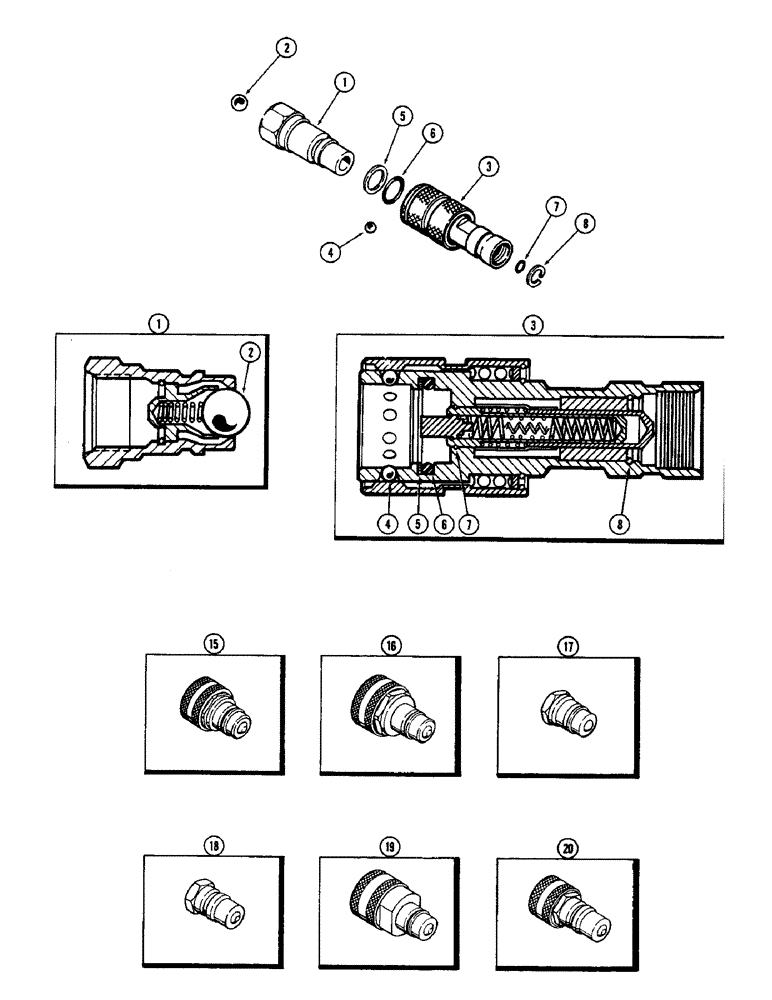

Запчасти Case IH 2590 (8-294) - REMOTE HYDRAULIC HOSE COUPLINGS (08) - HYDRAULICS

1

A147889

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - break away (Male half), Includes: Ref. 2

1шт.

2

211-316

BALL,17/32" Dia

- . (13.46 MM) 17/32" Dia

1шт.

3

A147888

BREAKER POINTS

COUPLING ASSEMBLY - breakaway (Female half) (Order A147741), Includes: Refs. 4 - 8

1шт.

4

211-5

BALL,3/16" Dia

- . (4.83 MM) 3/16" Dia

10шт.

5

A44890

RING

- back up

1шт.

A47220

GASKET KIT

KIT - seal

1шт.

6

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- body

1шт.

7

A47222

SEAL

- poppet

1шт.

8

NSS

NOT SOLD SEPARAT

RING - lock (Order A47220)

1шт.

15

A160879

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (John Deere male half to J I Case A147888 female half), hydraulic coupling adapters

1шт.

16

A160880

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (International Harvester male half to J I Case A147888 female half), hydraulic coupling adapters

1шт.

17

A160937

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male half (Same as A147889 except it has 1/2"-14 internal thread), hydraulic coupling adapters

1шт.

18

A160884

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male half, 1/2"-14 thread, hydraulic coupling adapters

1шт.

19

A160885

QUICK MALE COUPLING

ADAPTER ASSEMBLY - male half (J I Case A28541 and A160884 to J I Case A147888), hydraulic coupling adapters

1шт.

20

A160888

COUPLING

ADAPTER ASSEMBLY - male half (J I Case A147889 to J I Case A28542), hydraulic coupling adapters

1шт.
