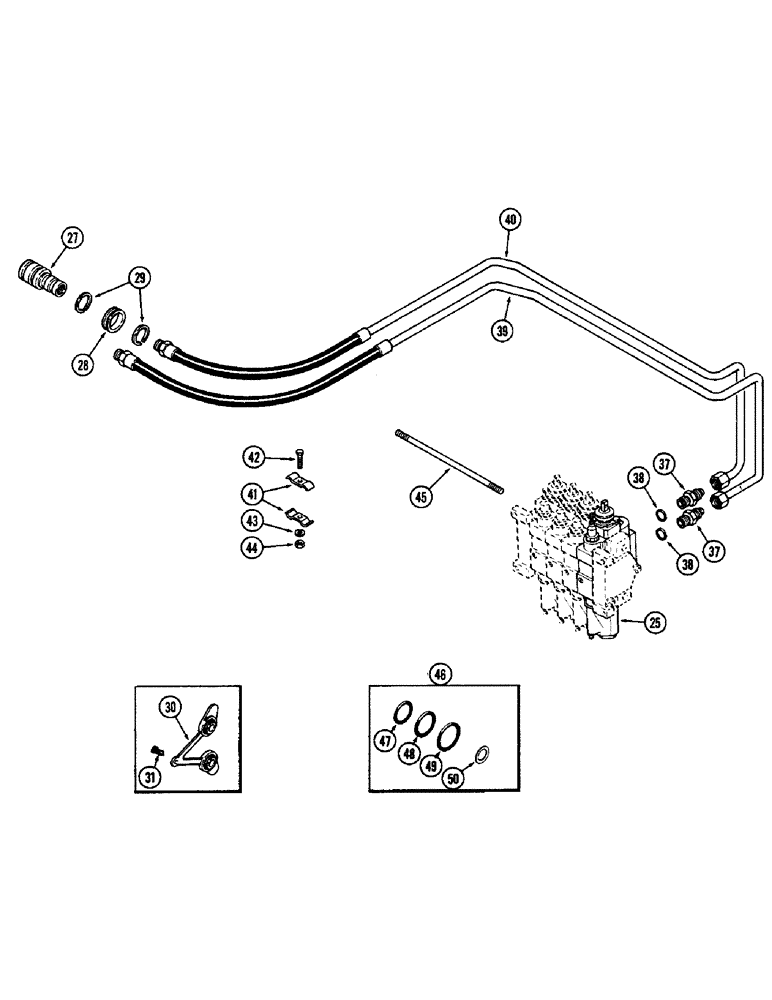

Запчасти Case IH 2590 (8-282) - REMOTE HYDRAULICS, NUMBER 4 CIRCUIT (08) - HYDRAULICS

A67389

ATTACHMENT

- remote hydraulics, no. 4 circuit (Continued from Figure 8-280)

1шт.

25

A162213

HOUSING

BODY - remote valve (See Figure 8-286)

1шт.

27

A147888

BREAKER POINTS

COUPLING - remote hydraulic, female (Order A147741) (See Figure 8-294)

2шт.

28

A139805

RETAINER

- coupling

2шт.

29

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, coupling to cab

4шт.

30

A145468

PLUG

- remote coupling dust

1шт.

31

A162364

FASTENER

- dust plug (Replaces A143300)

1шт.

37

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - tube

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32" (15.75 x 19.05 x 2.29 MM)

1шт.

39

A145907

HOSE

- #7 remote

1шт.

40

A145908

HOSE

- #8 remote

1шт.

41

A63323

CLAMP

-, Serial Range: tube-tube

2шт.

42

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

43

92-5

LOCK WASHER,5/16"

1шт.

44

9635082

NUT,5/16" - 18, Gr 5

1шт.

45

A147508

STUD

- valve mounting, 3/8" NC x 11-3/4"

3шт.

46

A47576

KIT

- valve body seal (Replaces A147505)

1шт.

47

A47696

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4 x 1 x 1/8" (19.05 x 25.4 x 3.05 MM)

2шт.

48

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 x 1-1/8 x 3/32" (23.88 x 28.45 x 2.29 MM)

2шт.

49

A47226

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- 1 x 1-1/4 x 1/8" (25.4 x 31.75 x 3.05 MM)

1шт.

50

D77566

SHIM,.0030" Thk

1/2" ID x 3/4" OD (12.7 x 19.05 x 0.008 mm) .0030" Thk

3шт.
