(8-278) - REMOTE HYDRAULICS, NUMBER 3 CIRCUIT

Запчасти Case IH 2590 (8-278) - REMOTE HYDRAULICS, NUMBER 3 CIRCUIT (08) - HYDRAULICS

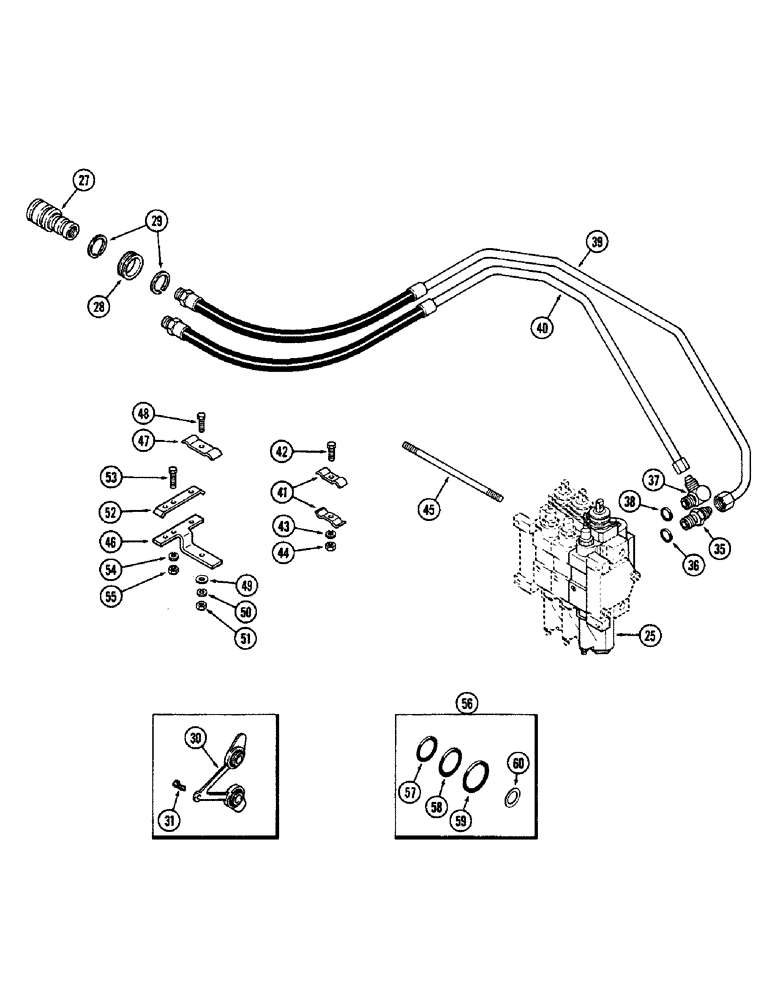

Схема запчастей Case IH 2590 - (8-278) - REMOTE HYDRAULICS, NUMBER 3 CIRCUIT (08) - HYDRAULICS
25
50
53
35
41
43
47
58
42
44
30
55
36
46
39
27
56
37
57
29
31
59
45
49
51
54
28
40
48
52
38
60
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A67388

ATTACHMENT

- remote hydraulics, no. 3 circuit (Continued from Figure 8-276), Includes: Refs. 25 - 60

1шт.

25

A162213

HOUSING

BODY - remote valve (See Figure 8-786)

1шт.

27

A147888

BREAKER POINTS

COUPLING - remote hydraulic, female (Order A147741) (See Figure 8-294)

2шт.

28

A139805

RETAINER

- coupling

2шт.

29

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, coupling to cab

4шт.

30

A145468

PLUG

- remote coupling dust

1шт.

31

A162364

FASTENER

- dust plug (Order A143300)

1шт.

35

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - tube, Includes: Refs. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32" (15.75 x 19.05 x 2.29 MM)

1шт.

37

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree, Incl. Ref. 38

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32" (15.75 x 19.05 x 2.29 MM)

1шт.

39

A145905

HOSE

- #5 remote

1шт.

40

A145906

HOSE

- #6 remote

1шт.

41

A63323

CLAMP

-, Serial Range: tube-tube

2шт.

42

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

43

92-5

LOCK WASHER,5/16"

1шт.

44

9635082

NUT,5/16" - 18, Gr 5

1шт.

45

A147507

STUD

- valve mounting, 3/8" NC x 9-7/8"

3шт.

46

A147771

BRACKET

- tube clamp support

1шт.

47

A17542

CLAMP

- tube

1шт.

48

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

49

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 MM)

1шт.

50

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

51

25-104

NUT,1/4"-20, G5

1шт.

52

A147772

CLAMP

- tube

1шт.

53

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

54

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

55

25-104

NUT,1/4"-20, G5

2шт.

56

A47576

KIT

- valve body seal (Replaces A147505), Includes: Refs. 57 - 60

1шт.

57

A47696

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4 x 1 x 1/8" (19.05 x 25.4 x 3.05 MM)

2шт.

58

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 x 1-1/8 x 3/32" (23.88 x 28.45 x 2.29 MM)

2шт.

59

A47226

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- 1 x 1-1/4 x 1/8" (25.4 x 31.75 x 3.05 MM)

1шт.

60

D77566

SHIM,.0030" Thk

1/2" ID x 3/4" OD (12.7 x 19.05 x 0.008 mm) .0030" Thk

3шт.
