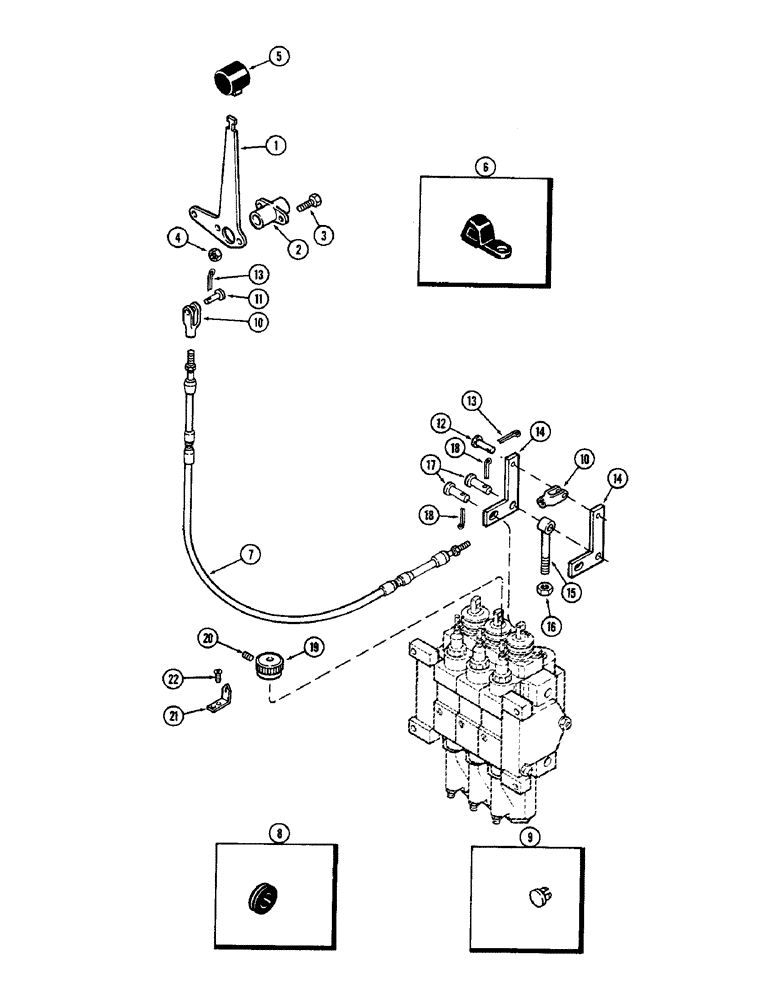

Запчасти Case IH 2590 (8-276) - REMOTE HYDRAULICS, NUMBER 3 CIRCUIT (08) - HYDRAULICS

A67388

ATTACHMENT

- remote hydraulics, no. 3 circuit (Machine item), Includes: Refs. 1 - 22

1шт.

1

A141392

LEVER

- control, inner, 8-1/4" long (203.2 MM)

1шт.

2

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING - control lever (Replaces A141371)

1шт.

3

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

4

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

5

A139945

KNOB

- lever

1шт.

6

A141542

LEVER

TAB - float lockout

1шт.

7

A141402

CABLE

- remote control

1шт.

8

A141389

GROMMET

- control cable (In cab floor)

1шт.

9

A67295

PLUG

- control cable retainer

2шт.

10

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - cable (Replaces A141286)

2шт.

11

141-51

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16"

1шт.

12

A67313

PIN

- remote bellcrank (Replaces A143069)

1шт.

13

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

3шт.

14

A145598

LEVER

BELLCRANK - remote

2шт.

15

A145597

EYE

- bellcrank pivot

1шт.

16

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/4" NC hex

1шт.

17

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

18

132-26

COTTER PIN

PIN - cotter, 3/32 x 3/8"

2шт.

19

A145805

KNOB

- flow control

1шт.

20

178-1108

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW - #10-32 x 5/8" socket head cone point

1шт.

21

A64179

INDEX

- flow control spring

1шт.

22

187-1037

SELF-TAP SCREW,Slotted Pan Hd, #8 x 3/8"

SCREW - #8 x 3/8" round head self-tapping

2шт.
