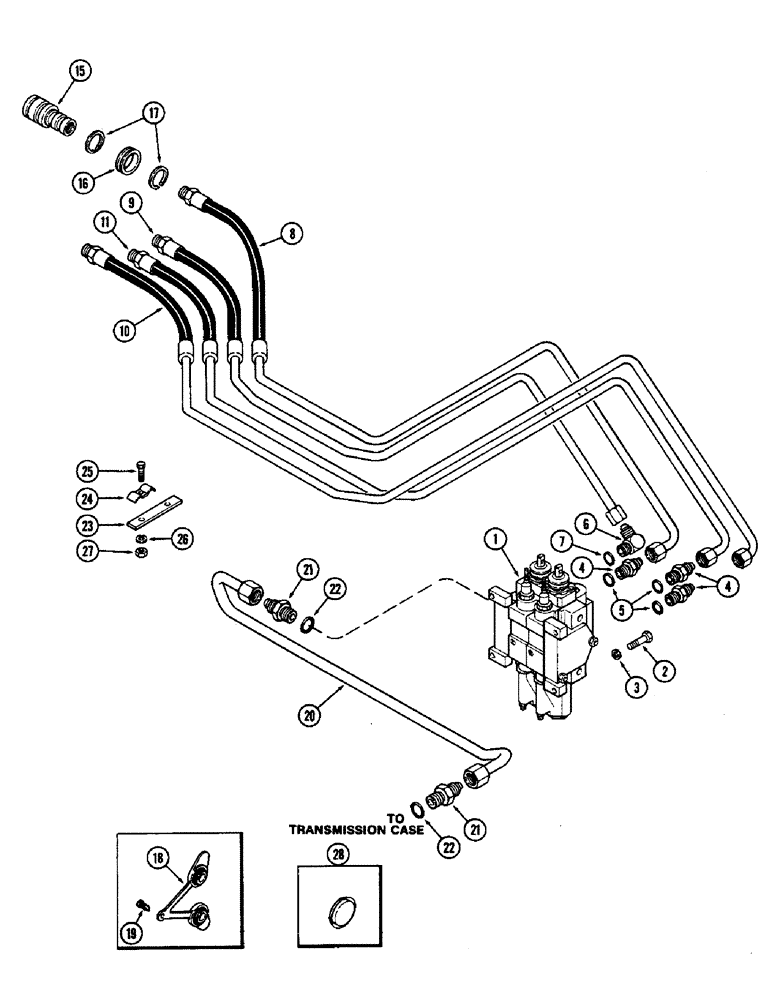

Запчасти Case IH 2590 (8-274) - REMOTE TUBES AND COUPLINGS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE, Remote (See Figure 8-286)

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY, Tube, Incl 5

3шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 x 3/4 x 3/32" (15.75 x 19.05 x 2.29 MM)

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 x 3/4 x 3/32" (15.75 x 19.05 x 2.29 MM)

1шт.

8

A145901

HOSE

Coupling No. 1A

1шт.

9

A145902

HOSE

Coupling No. 1B

1шт.

10

A145909

HOSE

Coupling No. 2A

1шт.

11

A145904

HOSE

Coupling No. 2B

1шт.

15

REF

INSTRUCTION

COUPLING, Remote Hydraulic, Female (See Figure 8-294)

4шт.

16

A139805

RETAINER

Coupling

4шт.

17

A137976

SNAP RING,#150, 1.408", Ext

RING, Snap,Coupling Retainer

8шт.

18

A145468

PLUG

Remote Coupling Dust

2шт.

19

A162364

FASTENER

Dust Plug to Cab (Replaces A143300)

2шт.

20

A143847

TUBE

Remote, Valve to Sump

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY, Tube, Incl 22

2шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 x 59/64 x 1/8" (19.05 x 23.37 x 3.05 MM)

1шт.

23

A141174

SUPPORT

Tube Clamp

1шт.

24

A63323

CLAMP

Tubes to Support

2шт.

25

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 1-1/4" NC hex (Grade 5)

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

5/16" NC hex

2шт.

28

353-590

PLUG,1 7/8"

Button, 1-7/8" Recessed Head (47.75 MM) (Rear Platform Holes)

4шт.
