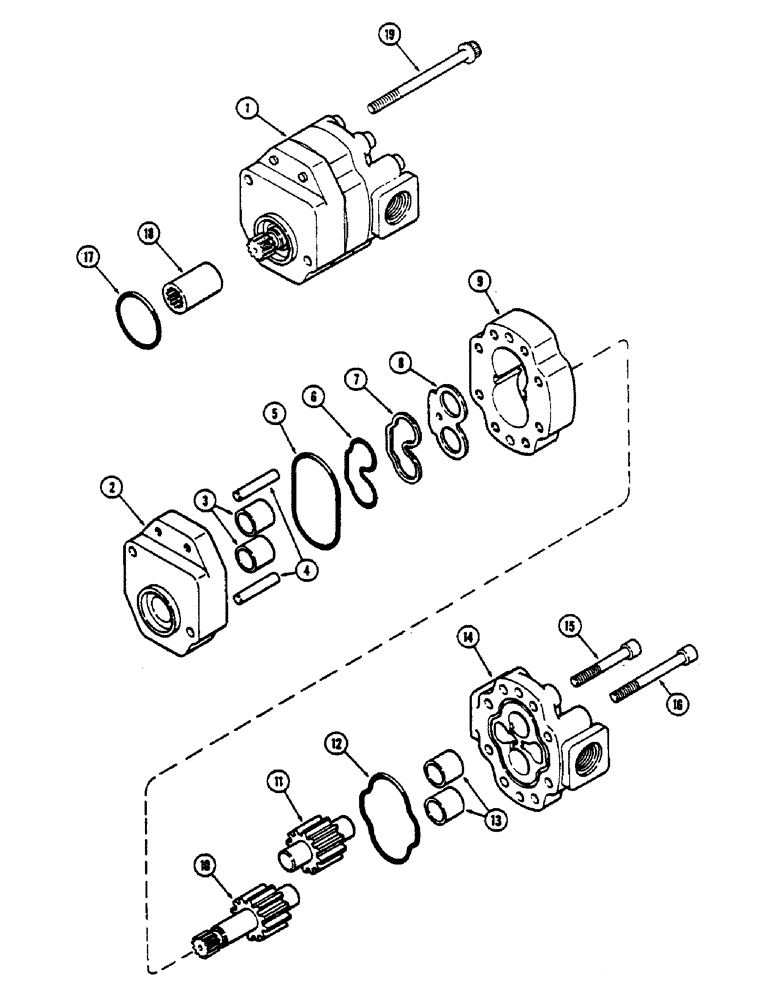

Запчасти Case IH 2590 (8-264) - GEAR AND PISTON PUMP ASSEMBLY (08) - HYDRAULICS

A163167

PUMP

ASSEMBLY - gear and piston (Continued from Figure 8-262), Includes: Refs. 1 - 19

1шт.

1

A47311

PUMP

ASSEMBLY - gear, Includes: Refs. 2 - 16 and seal kit, P/N A47428

1шт.

84372945R

REMAN-HYD PUMP

2590 (1/79-12/83), Reman for New PN A47311

1шт.

84372945C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - front

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - front cover

2шт.

4

NSS

NOT SOLD SEPARAT

DOWELS - body locating

2шт.

5

NSS

NOT SOLD SEPARAT

O-RING - front cover

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - rubber

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - teflon

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

10

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - rear cover

1шт.

13

NSS

NOT SOLD SEPARAT

BUSHING - rear cover

2шт.

14

NSS

NOT SOLD SEPARAT

COVER - rear

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW - short

6шт.

16

NSS

NOT SOLD SEPARAT

SCREW - long

1шт.

A47428

KIT

- seal, gear pump

1шт.

17

F98069

O-RING

- gear pump to piston pump (In A47567 kit, Figure 8-258)

1шт.

18

A47312

COUPLING, BREAK AWAY

COUPLING - gear pump to valve block

1шт.

19

A47412

SCREW,M8 x 100mm

- 8 x 100.0 MM Ferry cap

2шт.
