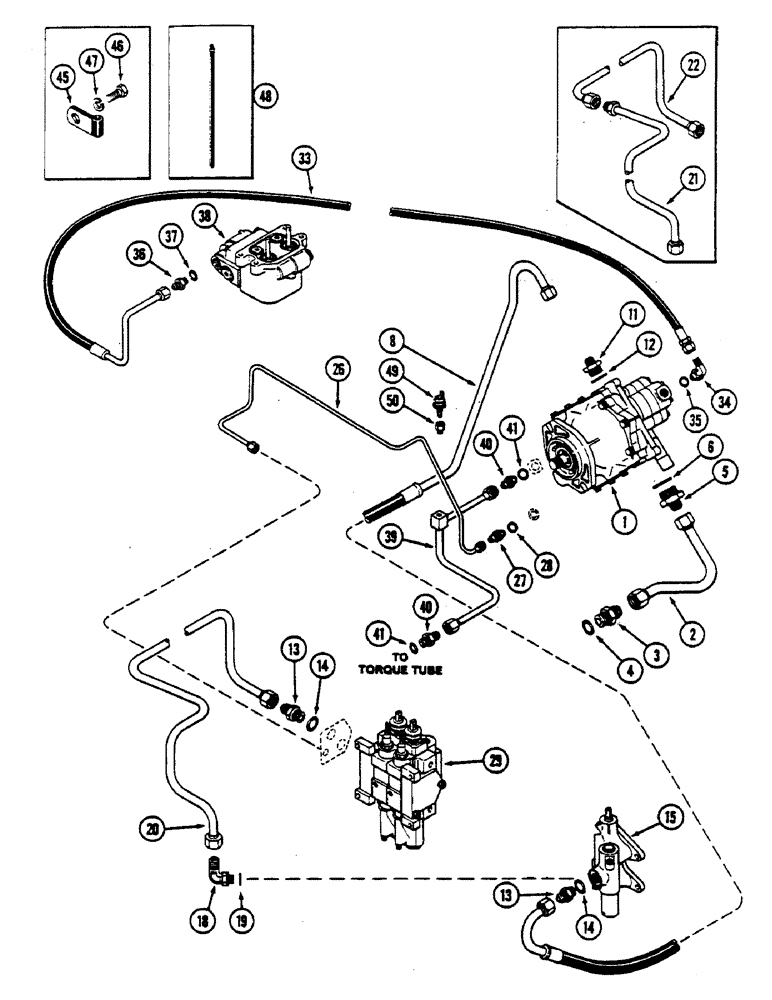

Запчасти Case IH 2590 (8-256) - HYDRAULICS, WITHOUT HITCH GEAR, PISTON PUMP AND HYDRAULIC LINES (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP - gear and piston (See Figure 8-260)

1шт.

2

A147129

TUBE

- pump suction

1шт.

3

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY - tube, Incl. Ref. 4

1шт.

4

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

-1 x 1-11/64 x 7/64" (25.4 x 29.72 x 2.79 MM)

1шт.

5

A147128

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - tube, Includes: Ref. 6

1шт.

6

218-5349

O-RING,1.364" ID x 1.504" OD x 0.07"

- 2-3/32 x 2-13/64 x 7/64" (53.18 x 55.96 x 2.79 MM)

1шт.

8

A162893

HOSE

TUBE - pump to regulator valve (Replaces A149897)

1шт.

11

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSEMBLY - tube

1шт.

12

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-5/32 x 7/64" (26.67 x 29.46 x 2.79 MM), Includes: Ref. 12

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - tube, Incl. Ref. 14

2шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.37 x 3.05 MM)

1шт.

15

REF

INSTRUCTION

VALVE - PTO regulator (See Figure 6-224)

1шт.

18

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - 90 degree adjustable, Incl. Ref. 19

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.37 x 3.05 MM)

1шт.

20

REF

INSTRUCTION

TUBE - regulator valve, J I Case installed (Order Ref. 21 and 22)

1шт.

21

A162498

TUBE

- elbow to tube section, service only (Replaces A147304)

1шт.

22

A162499

TUBE

- tube to remote valve section, service only (Replaces A147303)

1шт.

26

A164137

TUBE

- pump to remote valve pilot

1шт.

27

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR ASSEMBLY - tube, Includes: Ref. 28

1шт.

28

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.94 x 15.75 x 2.03 mm)

1шт.

29

REF

INSTRUCTION

VALVE - remote (See Figure 8-286)

1шт.

33

A147991

HOSE

- pump to brake valve (Order A164195), Includes: Ref. 34

1шт.

34

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

36

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - tube, Incl. Ref 37

1шт.

38

REF

INSTRUCTION

VALVE - power brake (See Figure 7-242)

1шт.

39

A147133

TUBE

- steering pump suction

1шт.

40

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - tube, Includes: Ref. 41

2шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32" (15.75 x 19.05 x 2.29 MM)

1шт.

45

49839

CLAMP

- tube, 3/8" (9.65 MM)

2шт.

46

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

47

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64" (9.52 x 22.22 x 1.98 MM)

1шт.

48

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon

1шт.

49

A66737

SWITCH, PRESSURE

SWITCH - transmission filter pressure

1шт.

50

A161432

FITTING

SNUBBER - switch

1шт.

35

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 41/64 x 5/64" (12.7 x 16.26 x 2.03 MM)

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 41/64 x 5/64" (12.7 x 16.26 x 2.03 MM)

1шт.
