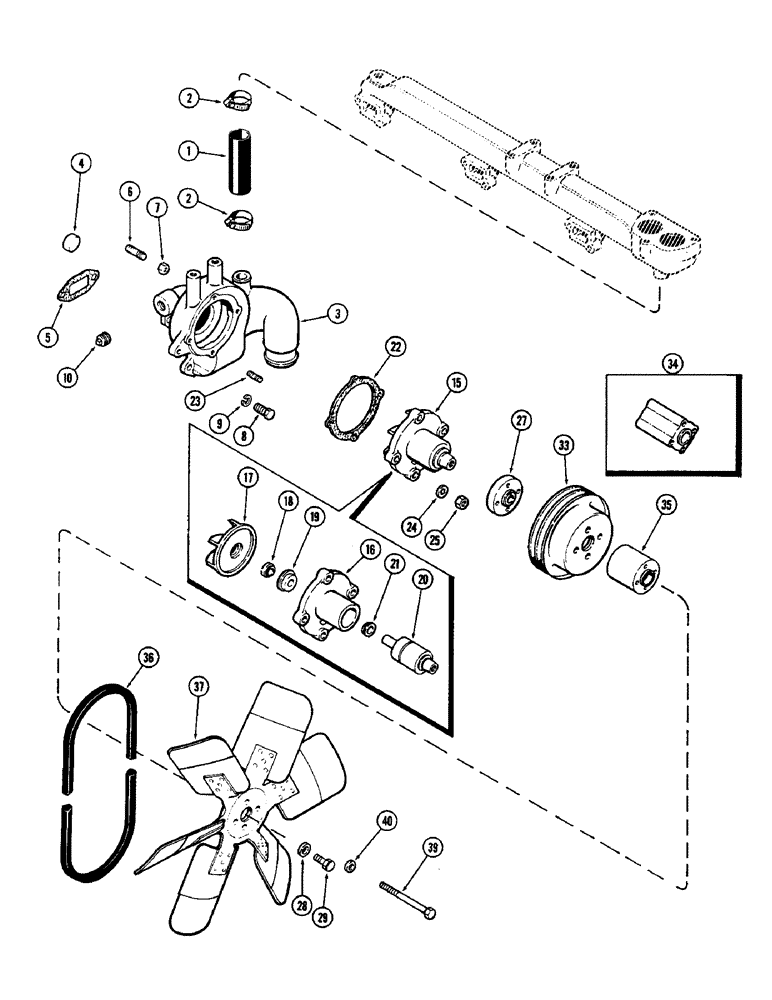

Запчасти Case IH 2590 (2-10) - WATER PUMP, WITH TAPPED SHAFT, 504BDT, DIESEL ENGINE (02) - ENGINE

1

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

HOSE - water pump bypass

1шт.

2

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4" (30.16 to 44.45 MM)

2шт.

3

A148968

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 4

1шт.

4

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - 1-3/8" cup (35.05 MM)

1шт.

5

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

6

G102128

BOLT

STUD - 3/8" NC x 1-1/2"

2шт.

7

25-106

NUT,3/8"-16, G5

NUT - 3/8" NC hex

2шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

10

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" PT square head

1шт.

15

A155180

PUMP

PUMP ASSEMBLY - water, Includes: Refs. 16 - 20

1шт.

15

1342818C1R

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

15

A48335

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

17

A152126

IMPELLER

IMPELLER - water (Cast iron)

1шт.

18

A34000

SEAL

SEAT - impeller

1шт.

19

A142499

SEAL

SEAL - pump shaft

1шт.

20

A155177

SHAFT

SHAFT ASSEMBLY - with bearing (Replaces A154521), Includes: Ref. 21

1шт.

21

Q829325

BUSHING

- water

1шт.

22

A58646

GASKET

GASKET -, Serial Range: pump-body

1шт.

23

A62234

STUD

STUD - 3/8" NC x 1-5/16"

4шт.

24

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

25

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT - 3/8" NC hex jam

4шт.

27

A146221

HUB

HUB - fan and, Serial Range: pulley-pump

1шт.

28

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER - 33/64 x 1-1/16" x 11/16 x 11/32" (13.1 x 26.9 x 8.73 MM)

1шт.

29

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

BOLT - 1/2 x 1-1/4" NF hex (Grade 5)

1шт.

33

A152448

PULLEY

PULLEY - fan driven

1шт.

34

A61283

BUSHING

SPACER - fan blade, 3/4" wide (19.05 MM)

1шт.

35

A76913

BUSHING

SPACER - fan blade, 3-1/64" wide (76.60 MM)

1шт.

36

A145325

SET OF BELTS,60.00" L

Fan, Matched (With air conditioning)

1шт.

36

A57130

BELT,60.00" L

Fan, Single without Air Conditioning

1шт.

37

A145323

FAN

FAN - 22" (555.8 MM)

1шт.

39

26-680

BOLT,Hex, 3/8" - 16 x 5", Gr 8

BOLT - 3/8 x 5" NC hex (Grade 8)

4шт.

40

A50820

WASHER

WASHER - hardened, 25/64 x 3/4 x 7/64" (9.92 19.05 x 2.78 MM)

4шт.

331-509

PENETRATING OIL

RUST INHIBITOR - 1 pint (.47 litre)

1шт.
