(8-250) - HYDRAULICS, TRANSMISSION CONTROL VALVE AND ATTACHING PARTS

Запчасти Case IH 2590 (8-250) - HYDRAULICS, TRANSMISSION CONTROL VALVE AND ATTACHING PARTS (08) - HYDRAULICS

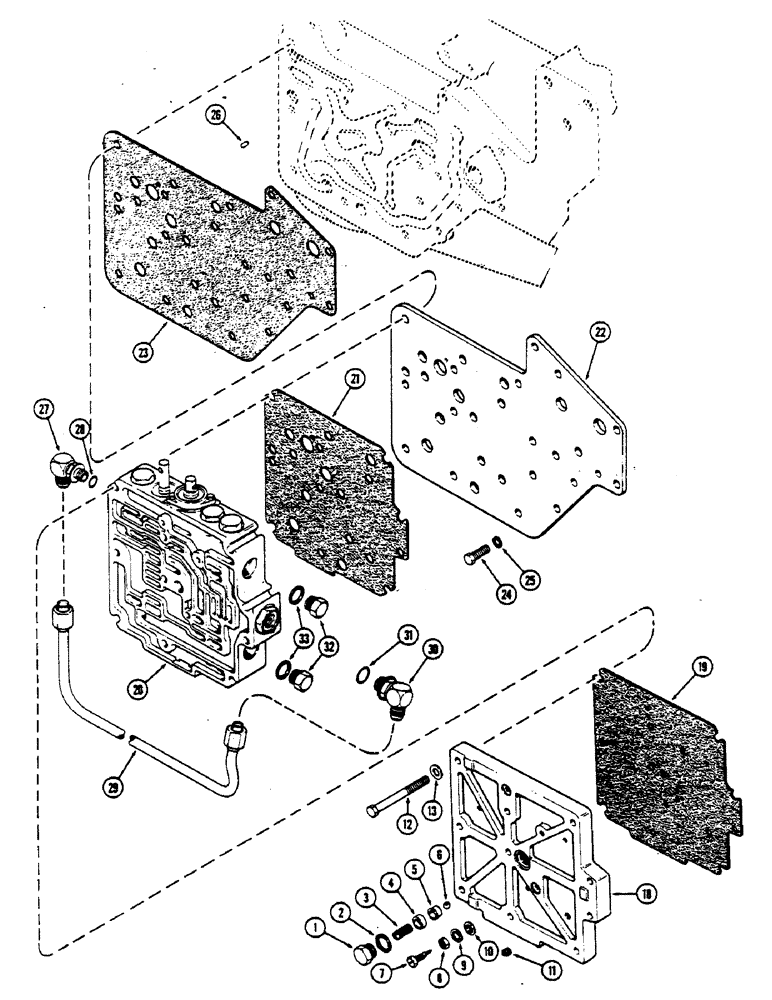

Схема запчастей Case IH 2590 - (8-250) - HYDRAULICS, TRANSMISSION CONTROL VALVE AND ATTACHING PARTS (08) - HYDRAULICS
4
28
7
27
30
24
25
33
10
13
26
1
19
3
31
9
2
22
23
20
11
6
5
32
12
18
21
29
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A62588

PLUG

- detent

1шт.

3

A61696

SPRING

- detent ball, 1-1/16" (26.92 MM) free length

1шт.

4

A62107

SPACER

- detent

1шт.

5

A59062

SLEEVE

- detent

1шт.

6

211-12

BALL,7/16 Dia

- detent, 7/16" dia chrome steel (11.18 MM)

1шт.

7

A136916

NEEDLE

- retard orifice

2шт.

8

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

9

122-13

GROMMET

BURR - riveting, 1/4" steel

2шт.

10

A59074

SEAL

- thread, 1/4" ID (6.35 MM)

2шт.

11

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" square head

5шт.

12

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

10шт.

13

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- valve cover, 25/64 x 49/64 x 1/32" (9.85 x 19.40 x 0.81 MM) (Replaces A63995)

10шт.

18

A151421

COVER

- transmission control valve

1шт.

19

A151615

GASKET

- valve to valve cover

1шт.

20

REF

INSTRUCTION

VALVE - transmission control (See Figure 8-252)

1шт.

21

A66736

GASKET

- valve to manifold plate

1шт.

22

A66771

PLATE

- manifold

1шт.

23

A66112

GASKET

- manifold to torque tube

1шт.

24

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

A63087

NEEDLE ROLLER

PIN - dowel, 3/16 x 3/4"

1шт.

27

A63295

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18 O-Ring

ASSEMBLY - 90 degree, Includes: Ref. 28

1шт.

28

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.89 x 1.98 mm)

1шт.

29

A64332

TUBE

- pilot, reverse lock-out

1шт.

30

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Includes: Ref. 31 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

32

A62564

PLUG

ASSEMBLY - (C1) and (C4) ports, Includes: Ref. 33

2шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 41/64 x 5/64" (12.7 x 16.26 x 2.03 MM)

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 41/64 x 5/64" (12.7 x 16.26 x 2.03 MM)

1шт.

33

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 41/64 x 5/64" (12.7 x 16.26 x 2.03 MM)

1шт.
