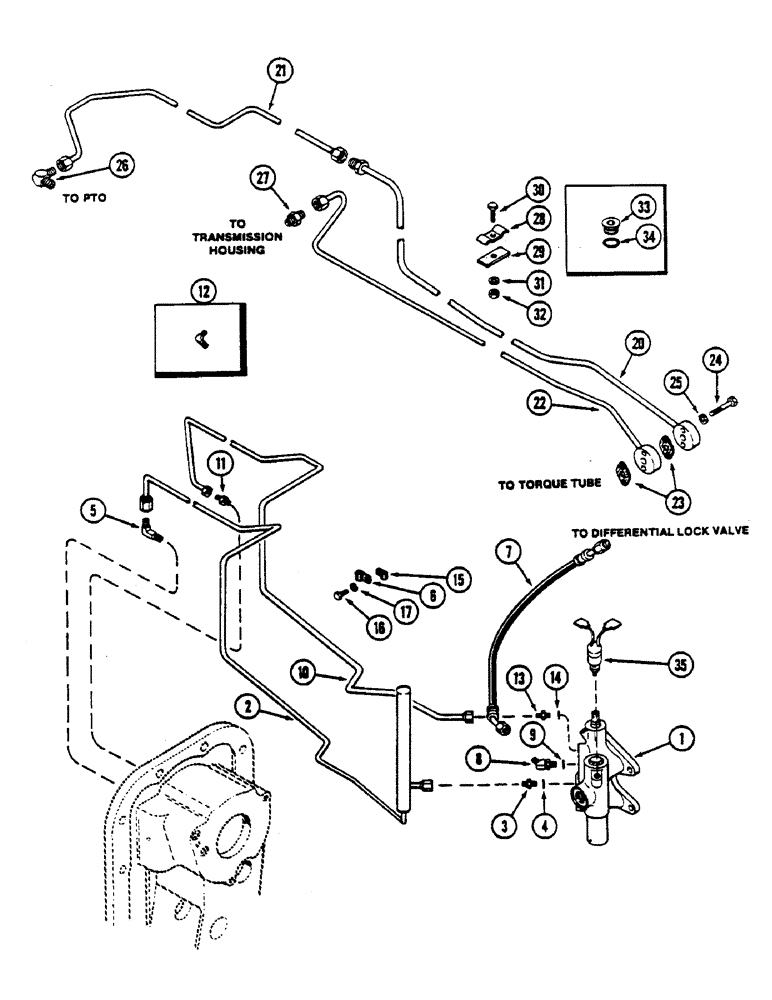

Запчасти Case IH 2590 (8-248) - HYDRAULICS, PTO PLUMBING (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - PTO and clutch regulating (See Figure 6-224)

1шт.

2

A160143

PIPE

TUBE - valve to PTO clutch (Replaces A160583)

1шт.

3

A145117

CONNECTOR, ELEC

CONNECTOR ASSEMBLY - tube (In PTO regulator valve) (Order A160659), Includes: Ref. 4

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.94 x 15.75 x 2.03 mm)

1шт.

5

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 3/8" tube x 1/4" PT

1шт.

6

49852

PTO SHAFT

- tube

1шт.

7

A160243

HOSE

- regulator valve to differential lock valve

1шт.

8

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

ASSEMBLY - 90 degree, 3/8" tube x 9/16"-18, Incl. Ref. 9

1шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.89 x 15.88 x 1.98 mm)

1шт.

10

A160055

TUBE

- valve to PTO brake (Replaces A141676)

1шт.

11

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - 1/4" tube x 1/8" PT

1шт.

Transmission serial no. 10201996 and after

1шт.

12

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree. 1/4" tube x 1/8"

1шт.

Prior to transmission serial no. 10201996

1шт.

13

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

CONNECTOR ASSEMBLY - tube, Incl. Ref. 14

1шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.94 x 15.75 x 2.03 mm)

1шт.

15

A20541

CLIP

CLAMP - tube

1шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

17

92-5

LOCK WASHER,5/16"

1шт.

20

A160484

TUBE

- PTO lubrication, front (Replaces A145223)

1шт.

21

A139496

TUBE

- PTO lubrication, rear

1шт.

22

A145224

TUBE

- (C1) lubrication

1шт.

23

A66143

GASKET

- lubrication tubes

2шт.

24

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

25

92-5

LOCK WASHER,5/16"

2шт.

26

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree

1шт.

27

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - tube

1шт.

28

A139065

CLAMP

- tube

1шт.

29

A60864

PLATE

- clamp

1шт.

30

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

31

92-5

LOCK WASHER,5/16"

1шт.

32

9635082

NUT,5/16" - 18, Gr 5

1шт.

33

9625178

PLUG,9/16" - 18 ORB

Assy (Top of torque tube), Incl. Ref. 34 Hex Soc, 9/16"-18 ORB

1шт.

34

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.94 x 15.75 x 2.03 mm)

1шт.

35

A162422

SWITCH

- transmission oil pressure (Replaces A145119 switch and A155051 snubber)

1шт.
