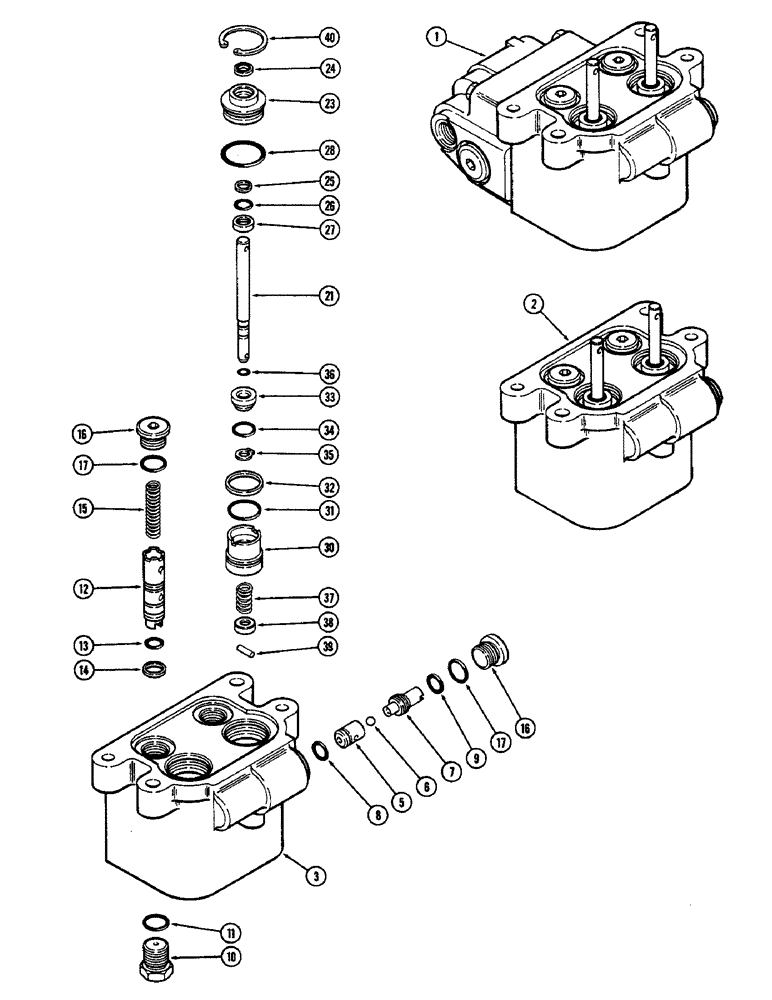

Запчасти Case IH 2590 (7-246) - POWER BRAKE VALVE (07) - BRAKES

1

G103198

VALVE

ASSEMBLY - power brake (Continued from Figure 7-244), Includes: Refs. 2 - 32

1шт.

2

G103199

VALVE

ASSEMBLY - master cylinder (Replaces G101057), Includes: Refs. 3 - 32

1шт.

3

G103200

BODY

- valve (Replaces G101018)

1шт.

G101156

VALVE

ASSEMBLY - check differential lock, Includes: Refs. 5 - 9

1шт.

5

G101069

SEAT

- differential lock

1шт.

6

211-257

BALL,1/4" Dia

(6.35 mm) 1/4" Dia

1шт.

7

G101068

RETAINER

- ball, differential lock

1шт.

8

A8613

O-RING,0.426" ID x 0.566" OD

- 7/16 x 9/16 x 1/16" (11.18 x 14.22 x 1.52 MM)

1шт.

9

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- 1/2 x 5/8 x 1/16" (12.7 x 15.75 x 1.52 MM)

1шт.

10

A59948

PLUG

- reducer

2шт.

12

G102283

SPOOL

ASSEMBLY - boost, Includes: Refs. 13 and 14

2шт.

13

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

1шт.

14

A59951

RING

- sealing, 9/16" x 41/64 x 1/16" (14.22 x 16.26 x 1.52 MM)

1шт.

15

A59950

SPRING

- boost spool, 7/16" O.D. x 1-3/4" free length (11.18 x 44.45 MM)

2шт.

16

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy, Incl Ref 17 Hex Soc, 3/4"-16 ORB

3шт.

G101064

PISTON

AND SEAL ASSEMBLY - master cylinder

2шт.

21

G101059

PIN,9.53mm OD x 110.62mm L

- master cylinder piston

1шт.

G101063

STOP

ASSEMBLY - piston, Includes: Refs. 23 - 28

1шт.

23

NSS

NOT SOLD SEPARAT

STOP - piston

1шт.

24

G101066

SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk

- brake

1шт.

25

G101070

RING

- backup, 27/64 x 15/32 x 3/64" (10.67 x 11.94 x 1.27 MM)

1шт.

26

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- 3/8 x 1/2 x 1/16" (9.65 x 12.7 x 1.52 MM)

1шт.

27

G101065

SEAL RETAINER

- retainer

1шт.

28

S5618

O-RING,1.182" ID x 1.316" OD x 0.073"

- piston

1шт.

G101062

PISTON

ASSEMBLY - brake, Includes: Refs. 28 - 39

1шт.

30

NSS

NOT SOLD SEPARAT

PISTON - brake

1шт.

31

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

- 13/16 x 15/16 x 1/16" (20.57 x 23.88 x 1.52 MM)

1шт.

32

G101302

RING

- seal, 1-1/16 x 1-9/64 x 5/64" (26.92 x 28.96 x 2.03 MM)

1шт.

33

G101060

WASHER

- seal

1шт.

34

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 31/64 x 5/8 x 5/64" (12.42 x 15.98 x 1.78 MM) (Replaces A65918)

1шт.

35

G10659

SNAP RING,#31, Ext

Ring, Snap, #31, Ext

1шт.

36

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- 3/16 x 5/16 x 1/16" (4.83 x 7.78 x 1.52 MM)

1шт.

37

G101303

SPRING

- piston return, 27/64" O.D. x 39/64" free length (10.67 x 15.49 MM)

1шт.

38

G101067

RETAINER

- spring

1шт.

39

G101304

PIN

- spring retainer

1шт.

40

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, , piston stop 1.375", Int, #137

2шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.26 x 20.57 x 2.29 MM)

2шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.26 x 20.57 x 2.29 MM)

1шт.
