(7-242) - POWER BRAKE VALVE

Запчасти Case IH 2590 (7-242) - POWER BRAKE VALVE (07) - BRAKES

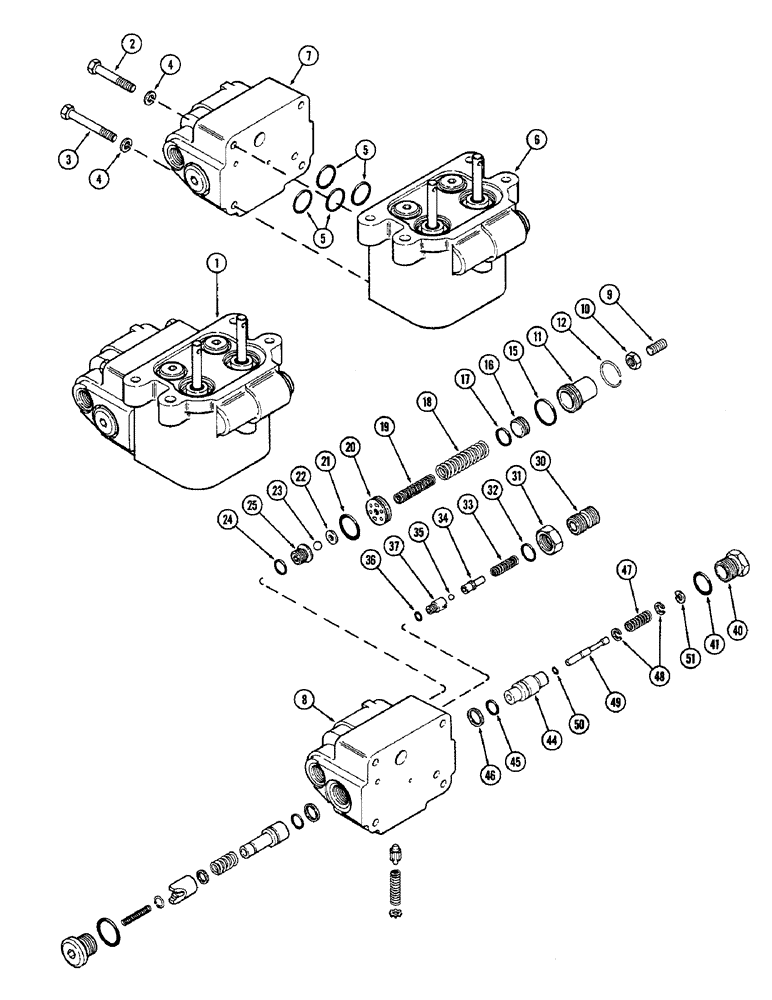

Схема запчастей Case IH 2590 - (7-242) - POWER BRAKE VALVE (07) - BRAKES
3
4
22
37
36
7
9
12
16
46
45
2
33
5
49
10
21
30
25
51
35
4
15
19
44
6
34
24
20
5
32
47
50
11
18
41
8
31
17
48
23
1
40
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

G103198

VALVE

ASSEMBLY - power brake (Replaces G100807), Includes: Refs. 2 - 51

1шт.

2

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

3

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

G102086

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

- 55/64 x 1" x 5/64" (21.94 x 25.4 x 1.78 MM) (Replaces R15366)

4шт.

6

REF

INSTRUCTION

VALVE ASSEMBLY - master cylinder (See Figure 7-246)

1шт.

7

G103366

COVER

ASSEMBLY - valve (Replaces G101143), Includes: Refs. 8 - 51

1шт.

8

G101026

COVER

- valve

1шт.

9

178-457

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW - 3/8 x 3/4" NC hex socket head, flat point

1шт.

10

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" hex jam

1шт.

11

G100761

RETAINER

- spring

1шт.

12

G100769

RING

- retaining, spring retainer

1шт.

15

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 x 1-1/8 x 3/32" (23.88 x 28.45 x 2.29 MM)

1шт.

16

G100762

PISTON

- relief valve

1шт.

17

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- 5/8 x 3/4 x 1/16" (15.75 x 19.05 x 1.52 MM)

1шт.

18

G100760

SPRING

- outer, 11/16" OD x 1-5/16" free length (17.53 x 33.27 MM)

1шт.

19

G100759

SPRING

- inner, 7/16" OD x 1-5/16" (11.18 x 33.27 MM)

1шт.

20

G102877

GUIDE

- spring (Replaces G100985)

1шт.

21

R15365

O-RING,0.989" ID x 1.129" OD x 0.07"

- spring guide

1шт.

22

G100588

WASHER

- 1/4 x 9/16 x 5/64" (6.35 x 14.22 x 2.03 MM)

1шт.

23

211-259

BALL,5/16" Dia

- pressure relief, meter (7.87 MM) 5/16" Dia

1шт.

24

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- 1/2 x 5/8 x 1/16" (12.7 x 15.75 x 1.52 MM)

1шт.

25

G35351

SEAT

- ball

1шт.

30

G101153

PLUG

- locking relief valve

1шт.

31

218-1278

BHD LOCK NUT,Blkhd, 3/4"-16

NUT - lock, relief valve plug

1шт.

33

G101509

SPRING

- 3/8" O.D. x 1-5/32" free length (9.65 x 29.46 MM)

1шт.

34

G101513

GUIDE

- ball

1шт.

35

211-255

BALL,3/16 Dia

(4.83 mm) 3/16 Dia

1шт.

36

G103122

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

replaces 218-5001 2-1, .239" ID x .064" Thk

1шт.

37

G101154

SEAT

- ball

1шт.

40

G100940

PLUG

- brake equalizer

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32" (1905 x 15.75 x 2.29 MM)

1шт.

G101097

PISTON

PRESSURE EQUALIZER ASSEMBLY, Includes: Refs. 44 and 45 and piston assembly, P/N G101098

1шт.

G101098

PISTON

ASSEMBLY - pressure equalizer

1шт.

44

NSS

NOT SOLD SEPARAT

PISTON - equalizer

1шт.

45

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- 1/2 x 5/8 x 1/16" (12.7 x 15.75 x 1.52 MM)

1шт.

46

G100797

RING

- seal, 11/16 x 3/4 x 1/16" (17.53 x 19.05 x 1.52 MM)

1шт.

47

G100796

SPRING

- equalizer, 27/64" OD x 1-1/64" free length (10.67 x 25.91 MM)

1шт.

48

G100941

WASHER

- spring

2шт.

49

G100790

PIN

- piston

1шт.

50

T30271

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

- 1/8 x 1/4 x 1/16" (3.05 x 6.35 x 1.52 MM)

1шт.

51

A59947

SNAP RING,0.453", Int, #45

Ring, Snap, 0.453", Int, #45

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.26 x 20.57 x 2.29 MM)

1шт.
