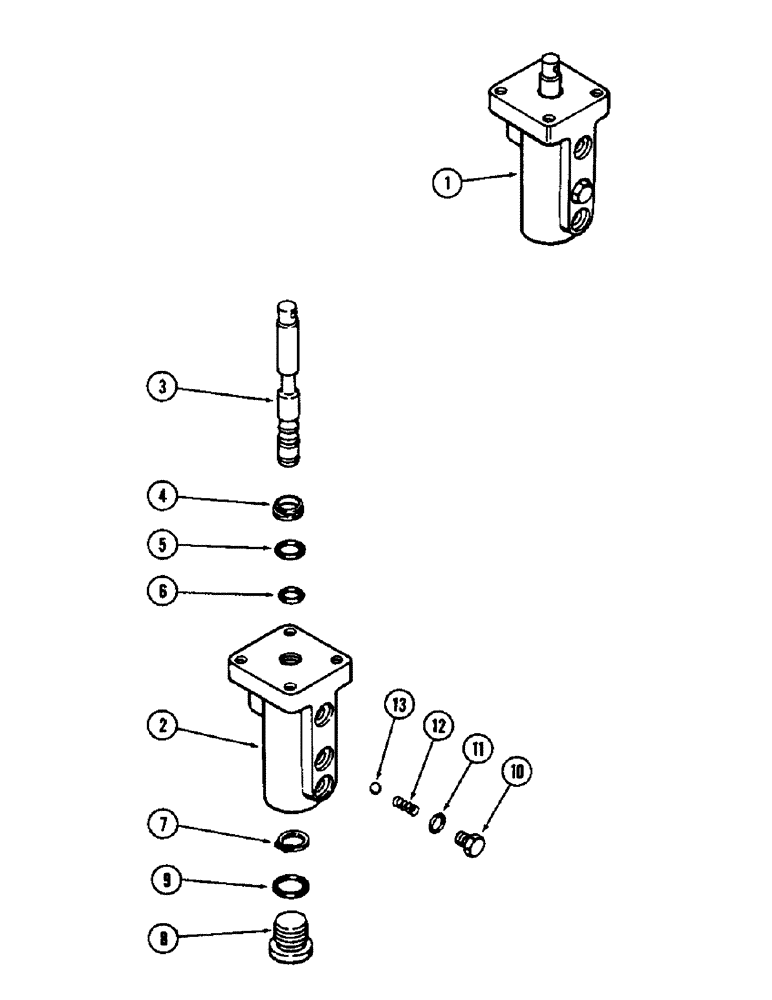

Запчасти Case IH 2590 (7-240) - DIFFERENTIAL LOCK VALVE (07) - BRAKES

1

A147807

VALVE

ASSEMBLY - differential lock, Includes: Refs. 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

A147806

SPOOL

- valve

1шт.

4

A63660

RING

- wiper

1шт.

Part of Valve Seal Kit, P/N A43711

1шт.

5

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- 5/8 x 13/16 x 3/32" (15.75 x 20.57 x 2.29 MM)

1шт.

Part of Valve Seal Kit, P/N A43711

1шт.

6

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- 7/16 x 5/8 x 3/32" (11.18 x 15.75 x 2.29 MM)

1шт.

Part of Valve Seal Kit, P/N A43711

1шт.

7

G33052

SNAP RING,#62, Ext

RING, Snap, #62, Ext

1шт.

8

9841223

PLUG,1-1/16" - 12 ORB

Assy, Incl. Ref. 9 Hex Soc, 1 1/16"-12 ORB

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.37 x 3.05 MM)

1шт.

Part of Valve Seal Kit, P/N A43711

1шт.

10

9672438

PLUG,7/16" - 20 ORB

Assy, Incl. Ref. 11 Hex Hd, 7/16"-20 ORB

1шт.

11

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64" (8.73 x 12.7 x 1.98 MM)

1шт.

12

B51407

SPRING

- compression

1шт.

13

211-11

BALL,3/8" Dia

- meter (9.65 MM) 3/8" Dia

1шт.

A43711

KIT

- valve seal, Includes: Refs. 4, 5, 6, 9, and 11

1шт.
