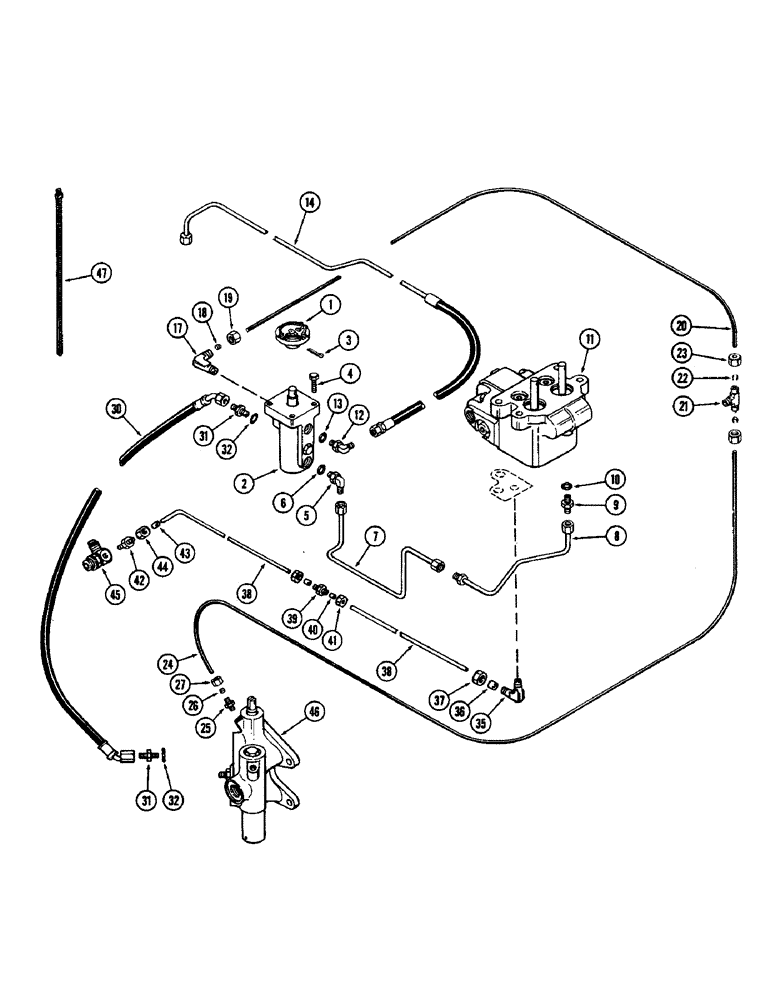

Запчасти Case IH 2590 (7-238) - DIFFERENTIAL LOCK MECHANISM, TRANSMISSION SERIAL NUMBER 10204107 AND AFTER (07) - BRAKES

1

A141692

PEDAL

- foot

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - differential lock (See Figure 7-240)

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

5

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSEMBLY - lock valve, 1/4" tube x 7/16"-20, Includes: Ref. 6

1шт.

6

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64" (8.73 x 12.7 x 1.98 MM)

1шт.

7

A160130

TUBE

- brake valve to lock valve, rear

1шт.

8

A160129

TUBE

- brake valve to lock valve, front

1шт.

9

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR ASSEMBLY - brake valve, 1/4" tube x 7/16"-20, Incl. Ref. 10

1шт.

10

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/64" (8.73 x 12.7 x 1.98 MM)

1шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY - power brake (See Figure 7-242)

1шт.

12

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

ASSEMBLY - lock valve, 3/8" tube x 9/16"-20, Incl. Ref. 13

2шт.

13

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 1/4 x 23/64 x 5/64" (6.35 x 9.14 x 2.03 MM)

1шт.

14

A160233

HOSE

- lock, Serial Range: valve-transmission

1шт.

17

222-5112

FITTING,9/16"-24 x 1/4" NPTF

ELBOW ASSEMBLY - lock valve, 3/8" tube x 1/8" PT, Includes: Refs. 18 and 19

1шт.

18

222-5186

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

19

222-5181

NUT,9/16"-24

NUT - 3/8" tube

1шт.

20

A75811

TUBE

- nylon, lock valve to sump, 3/8" O.D. x 34" (9.65 x 864.0 MM)

1шт.

21

222-5190

TEE,7/16"-24 x 3/8" NPT Run

ASSEMBLY - transmission, 3/8" tube x 1/8" PT

1шт.

22

222-5186

SLEEVE,3/8" Tube

- 3/8" Tube

2шт.

23

222-5181

NUT,9/16"-24

NUT - 3/8" tube

2шт.

24

A62027

TUBE

- nylon, tee to regulator valve, 3/8" O.D. x 69" (9.65 x 1752.0 MM) (Order A67323)

1шт.

25

222-5100

CONNECTOR, ELEC,17/32"-24 x 1/8" NPT

CONNECTOR ASSEMBLY - regulator valve, 3/8" tube x 1/8" PT, Includes: Refs. 26 and 27

1шт.

26

222-5186

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

27

222-5181

NUT,9/16"-24

NUT - 3/8" tube

1шт.

30

A160243

HOSE

- regulator valve to lock valve

1шт.

3

132-54

COTTER PIN,1/8" x 1 3/4"

PIN, Split (Cotter), 1/8" x 1 3/4"

1шт.

31

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR ASSEMBLY - 3/8" tube x 7/16"-20, Includes: Ref. 32

2шт.

32

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 1/4 x 23/64 x 5/64" (6.35 x 9.14 x 2.03 MM)

1шт.

35

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSEMBLY - brake valve return, 3/8" tube x 1/4" PT, Includes: Refs. 36 and 37

1шт.

36

222-5186

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

37

222-5181

NUT,9/16"-24

NUT - 3/8" tube

1шт.

38

A63670

TUBE

- nylon, 3/8" O.D. x 30" (9.65 x 762.0 MM) (Order A67323)

2шт.

39

222-2651

HYD CONNECTOR,17/32"-24

UNION ASSEMBLY - 3/8" tube, Includes: Refs. 40 and 41

1шт.

40

222-2611

SLEEVE

- 3/8" tube

2шт.

41

222-2601

NUT

NUT - 3/8" tube

2шт.

42

222-5101

CONNECTOR, ELEC,17/32"-24 x 1/4" NPT

CONNECTOR ASSEMBLY - 3/8" tube x 1/4" PT, Includes: Refs. 43 and 44

1шт.

43

222-5186

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

44

222-5181

NUT,9/16"-24

NUT - 3/8" tube

1шт.

45

A161145

FITTING

ELBOW - transmission dipstick (See Figure 6-170)

1шт.

46

REF

INSTRUCTION

VALVE - PTO control (See Figure 7-242)

1шт.

47

A160890

STRAP

- tube retaining

1шт.
