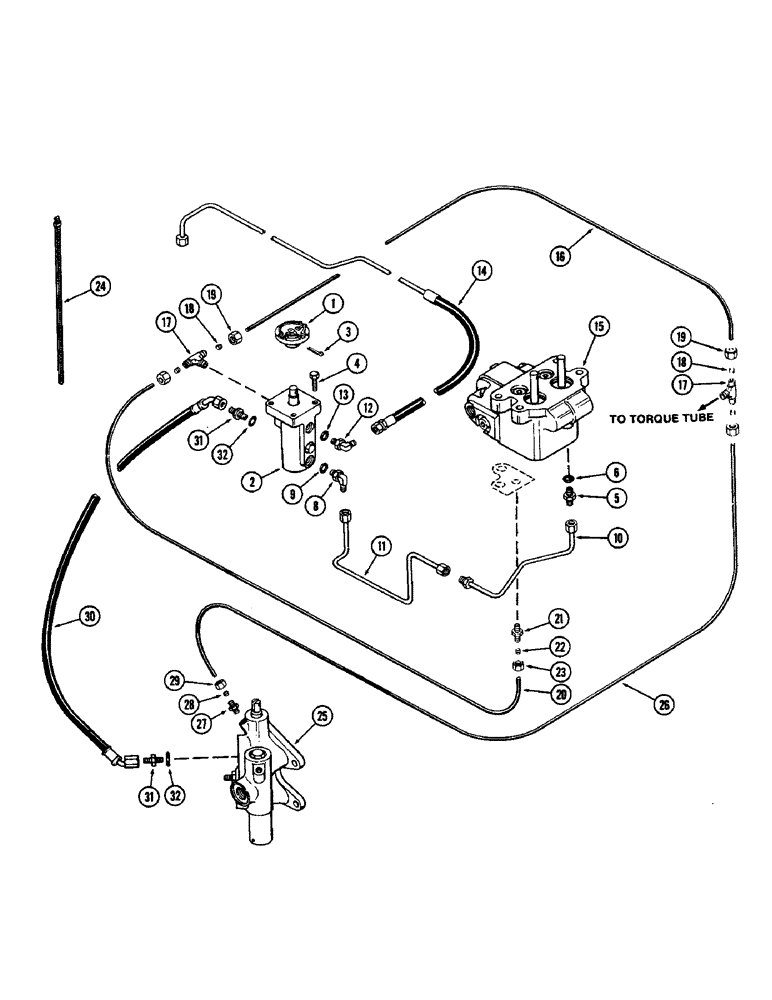

Запчасти Case IH 2590 (7-236) - DIFFERENTIAL, DIFFERENTIAL LOCK MECHANISM, PRIOR TO TRANSMISSION SERIAL NUMBER 10204107 (07) - BRAKES

1

A141692

PEDAL

- differential lock valve

1шт.

2

REF

INSTRUCTION

VALVE - differential lock (See Figure 7-240)

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR ASSEMBLY - straight, Incl. Ref. 6

1шт.

6

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 1/4 x 23/64 x 5/64" (6.35 x 9.14 x 2.03 MM)

1шт.

8

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSEMBLY - lock valve, Includes: Ref. 9

1шт.

9

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 11/32 x 1/2 x 5/16" (8.73 x 12.70 x 1.98 MM)

1шт.

10

A160129

TUBE

- brake valve to lock valve, front

1шт.

11

A160130

TUBE

- brake valve to lock valve, rear

1шт.

12

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

ASSEMBLY - 90 degree adjustable, Incl. Ref. 13

1шт.

13

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 1/4 x 23/64 x 5/64" (6.35 x 9.14 x 2.03 MM)

1шт.

14

A160233

HOSE

- differential lock to transmission case

1шт.

15

REF

INSTRUCTION

VALVE - power brake (See Figure 7-242)

1шт.

16

A75811

TUBE

- differential lock valve to sump, 3/8" nylon x 34" long (9.65 x 863.6 MM)

1шт.

17

222-5190

TEE,7/16"-24 x 3/8" NPT Run

CONNECTOR ASSEMBLY - branch, Includes: Refs. 18 and 19

2шт.

18

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

2шт.

19

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

2шт.

20

A145161

TUBE

- tee to brake valve, 3/8" nylon x 55" long (96.5 x 1397 MM) (Order A67323)

1шт.

21

222-5101

CONNECTOR, ELEC,17/32"-24 x 1/4" NPT

CONNECTOR ASSEMBLY - tube, Includes: Refs. 22 and 23

1шт.

22

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

23

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon tube to sump tube

1шт.

25

REF

INSTRUCTION

VALVE - PTO control (See Figure 6-224)

1шт.

26

A62027

TUBE

- transmission tee to regulator valve, 3/8" nylon x 69" long (9.65 x 1752.6 MM) (Order A67323)

1шт.

3

132-54

COTTER PIN,1/8" x 1 3/4"

PIN, Split (Cotter), 1/8" x 1 3/4"

1шт.

27

222-5100

CONNECTOR, ELEC,17/32"-24 x 1/8" NPT

CONNECTOR ASSEMBLY - tube, Includes: Refs. 28 and 29

1шт.

28

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

29

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

30

A160243

HOSE

- regulator valve to differential lock valve

1шт.

31

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR ASSEMBLY, Includes: Ref. 32

2шт.

32

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 1/4 x 23/64 x 5/64" (6.35 x 9.14 x 2.03 MM)

1шт.
