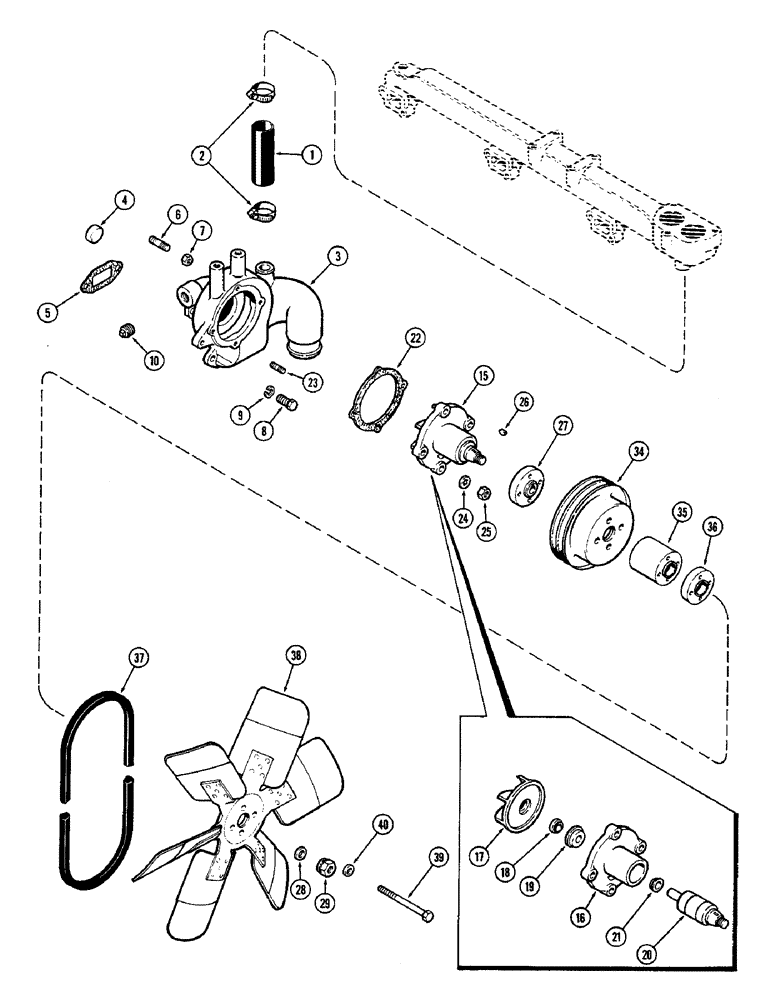

Запчасти Case IH 2590 (2-08) - WATER PUMP, WITH KEYWAY SHAFT, 504BDT, DIESEL ENGINE (02) - ENGINE

1

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water pump by pass

1шт.

2

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 x 44.45 MM)

2шт.

3

A148968

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 4

1шт.

4

A58568

PLUG,Cup, 1 3/8", Stainless

- 13/8" cup (35.05 MM)

1шт.

5

A58649

GASKET

-, Serial Range: body-block

1шт.

6

G102128

BOLT

- 3/8" NC x 1-17/32" (Replaces G11204)

2шт.

7

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

2шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" PT square head

1шт.

15

A152153

PUMP

ASSEMBLY - water (Order Refs. 15, 28, and 29 on Fig. 2-10), Includes: Refs. 16 - 21

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

17

A152126

IMPELLER

- water

1шт.

18

A34000

SEAL

SEAT - impeller

1шт.

19

A142499

SEAL

- pump shaft

1шт.

20

A154521

SHAFT

ASSEMBLY - with bearing, (Order Refs. 20, 28, and 29 on Figure 2-10)

1шт.

21

A29440

SLINGER

- water

1шт.

22

A58646

GASKET

-, Serial Range: pump-body

1шт.

23

A62234

STUD

- 3/8" NC x 1-5/16"

4шт.

24

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

25

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" NC hex, jam

4шт.

26

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

27

A146221

HUB

- fan and, Serial Range: pulley-pump

1шт.

28

A58651

WASHER

- 17/32 x 1-1/16 x 3/32" (13.46 x 26.92 x 2.29 MM)

1шт.

29

131-1106

LOCK NUT,1/2"-20, GB

NUT, LOCK, 1/2"-20, GB

1шт.

34

A152448

PULLEY

- fan driven

1шт.

35

A76913

BUSHING

SPACER - fan, 3" (76.2 MM) wide

1шт.

36

A61283

BUSHING

SPACER - fan, 3/4" (19.05 MM) wide

1шт.

37

A145325

SET OF BELTS,60.00" L

SET OF 2 BELTS , Fan, (With air conditioning ) 60.00" L

1шт.

37

A57130

BELT,60.00" L

Fan, Single without Air Conditioning 60.00" L

1шт.

38

A145323

FAN

- 22" (558.8 MM)

1шт.

39

26-680

BOLT,Hex, 3/8" - 16 x 5", Gr 8

- 3/8 x 5" NC hex (Grade 8)

4шт.

40

A50820

WASHER

- 3/8 x 3/4 x 7/64" (9.52 x 19.05 x 2.78 MM)

4шт.

331-509

PENETRATING OIL

RUST INHIBITOR - 1 pint (.47 litre)

1шт.
