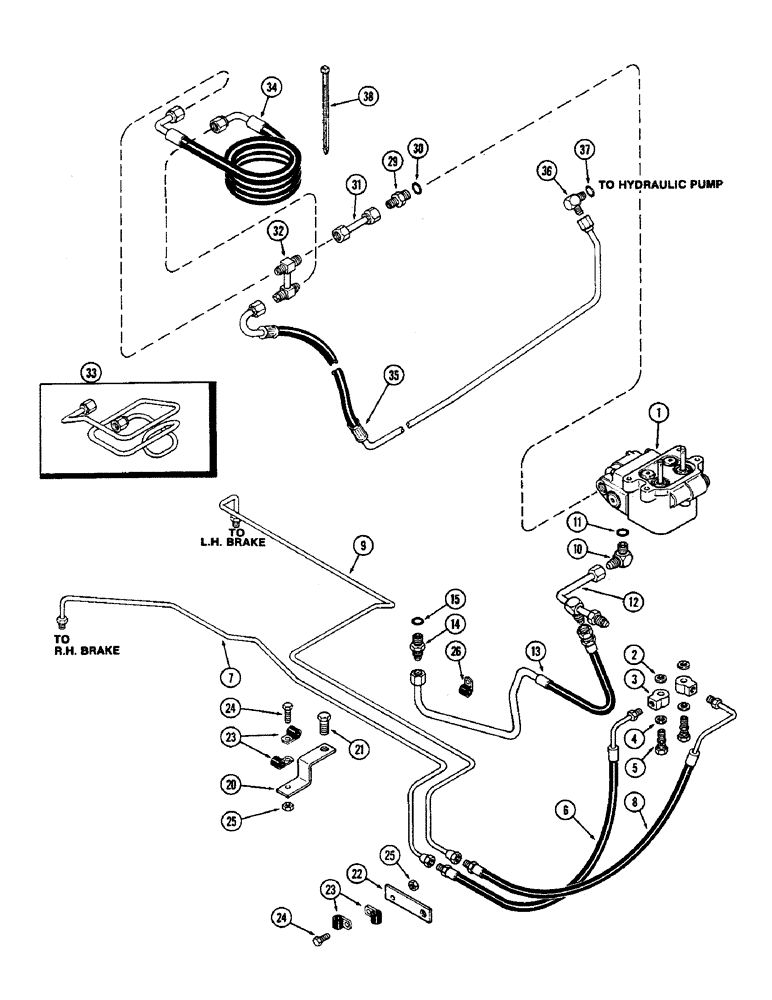

Запчасти Case IH 2590 (7-234) - BRAKE VALVE AND CIRCUITRY (07) - BRAKES

1

REF

INSTRUCTION

VALVE - power brake (See Figure 7-242)

1шт.

2

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inner, 1/2 x 13/16 x 1/32" (12.7 x 20.57 x 0.76 MM) copper

2шт.

3

A18531

FITTING

- brake tube banjo

2шт.

4

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, 19/32 x 13/16 x 1/32" (14.99 x 20.57 x 0.76 MM) copper

2шт.

5

A12864

BOLT

- tube fitting connection

2шт.

6

A147198

HOSE

- brake, R.H. front

1шт.

7

A147789

TUBE

- brake, R.H. rear

1шт.

8

A147971

HOSE

- brake, L.H. front

1шт.

9

A147790

TUBE

- brake, L.H. rear

1шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Includes: Ref. 11 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

12

A147196

MANIFOLD

- brake valve sump

1шт.

13

A143395

HOSE

-, Serial Range: manifold-sump

1шт.

14

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - hose

1шт.

20

A147791

CLAMP

BRACKET - tube clamps

2шт.

21

13-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd

1шт.

22

A147193

BRACKET

SUPPORT - brake tube clamp

1шт.

23

49851

SHIELD

- brake tubes

2шт.

24

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

25

131-634

SPRING NUT,J, Ret, 3/8"-16

- 3/8" NC Tinnerman type J

1шт.

26

49838

CLAMP

- sump tube

1шт.

29

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - tube, Incl. Ref 30

1шт.

31

A149931

TUBE

- brake valve inlet

1шт.

32

A149909

MANIFOLD

- wave delay tube

1шт.

33

A160086

TUBE

- wave delay (Order A161247 hose)

1шт.

34

A161247

HOSE

- wave delay (Replaces A160086 tube)

1шт.

35

A160128

PIPE

HOSE - brake valve to steering pump outlet

1шт.

36

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Includes: Ref. 37 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

38

A160890

STRAP

- hose retaining

3шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.76 x 2.29 MM)

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.76 x 2.29 MM)

1шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 41/64 x 5/64" (12.7 x 16.26 x 2.03 MM)

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 41/64 x 5/64" (12.7 x 16.26 x 2.03 MM)

1шт.
