Запчасти Case IH 2590 (6-226) - PTO HOUSING (06) - POWER TRAIN

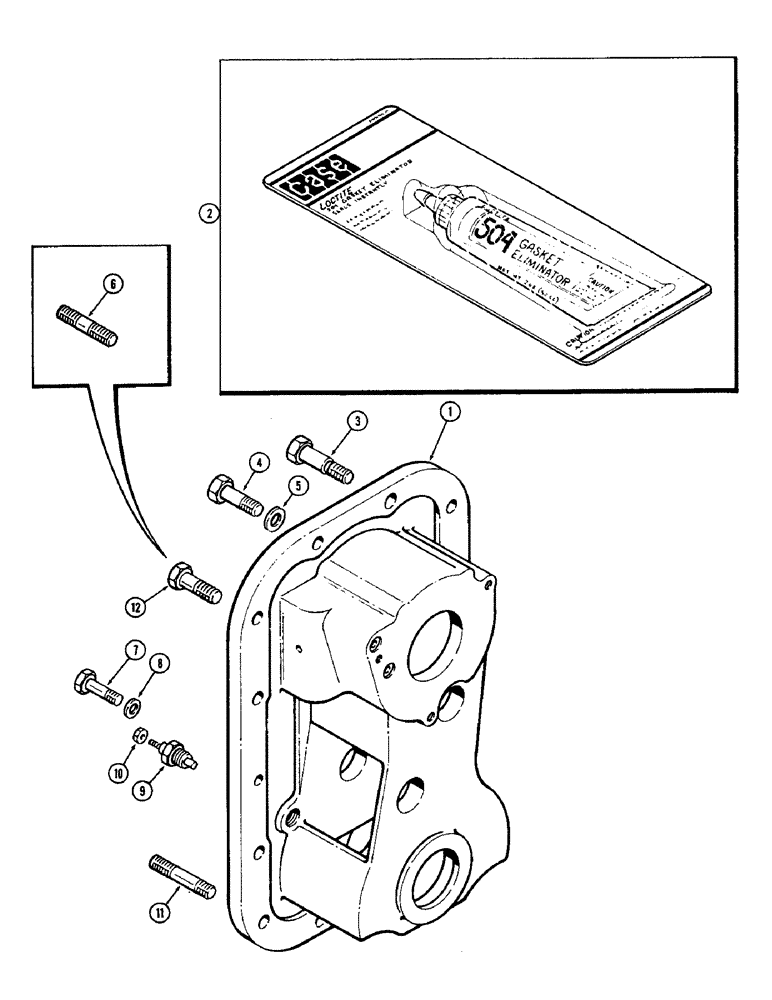

Схема запчастей Case IH 2590 - (6-226) - PTO HOUSING (06) - POWER TRAIN
7
4
8
10
2
3
1
9
5
6
12
11

Артикул

Название

Примечание

Количество

1

A153698

HOUSING

- PTO (Replaces A150572)

1шт.

2

B17428

LOCTITE

- gasket eliminator (2 oz. - 50 CC tube)

1шт.

3

A63255

STEP BOLT

BOLT - dowel, housing locating

1шт.

4

26-1034

BOLT,Hex, 5/8" - 11 x 2-1/8", Gr 8

- 5/8 x 2-1/8" NC hex (Grade 8)

1шт.

5

A64303

WASHER

- 21/32 x 1-1/16 x 1/16" (16.76 x 26.92 x 1.52 MM)

1шт.

6

REF

INSTRUCTION

STUD - 5/8" NC x 3-1/4" (Order ref 12)

2шт.

7

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- 1/2 x 1-7/8" NC hex (Grade 8)

2шт.

8

A150672

WASHER

- 17/32 x 7/8 x 1/8" (13.46 x 22.35 x 3.05 MM)

2шт.

9

A154283

SWITCH

- transmission temperature sending unit (Replaces A147186)

1шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex Keps

1шт.

11

A64109

STUD

- 5/8" NC x 3-1/2"

6шт.

12

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- 5/8 x 2" NC hex (Grade 8) (Without hitch)

4шт.

12

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- 5/8 x 2-1/2" NC hex (Grade 8) (With hitch)

4шт.

Выбрано товаров: 13
