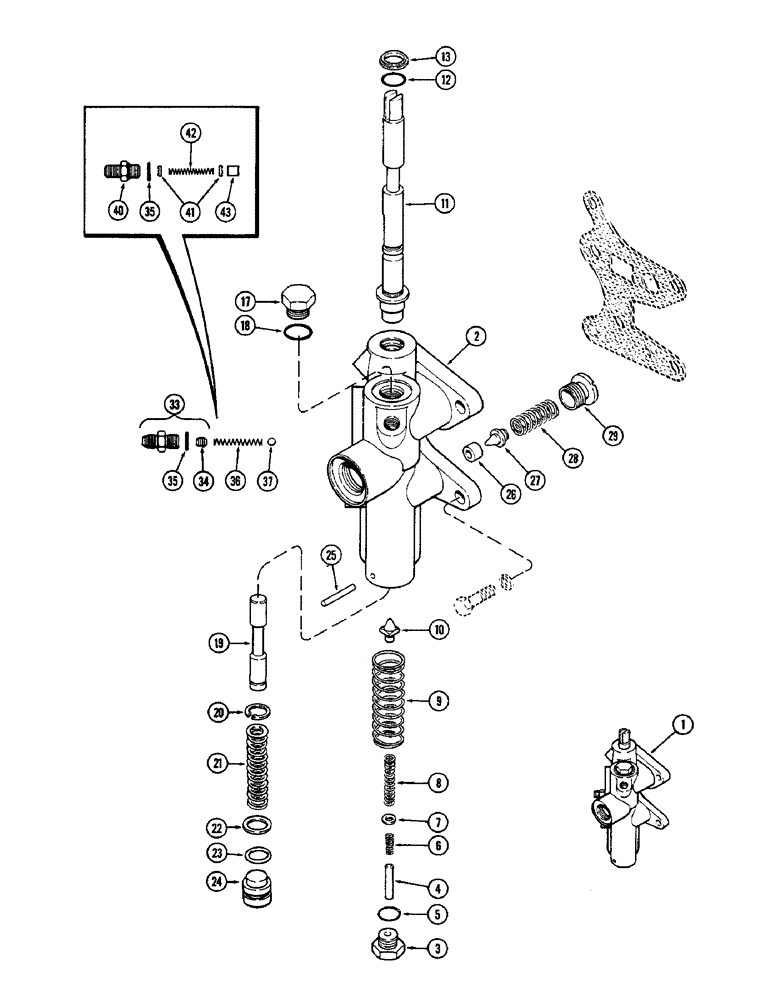

Запчасти Case IH 2590 (6-224) - A139858 REGULATOR VALVE (06) - POWER TRAIN

1

A139858

VALVE

ASSEMBLY - PTO and clutch regulator, Includes: Refs. 1 - 43

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

A139689

PLUG

ASSEMBLY - spool opening, Includes: Refs. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - spring guide

1шт.

5

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-9/32 x 7/64" (26.39 x 32.54 x 2.78 MM)

1шт.

6

A139738

SPRING

- modulator, secondary,1/4" O.D. x 41/64" free length (6.35 x 16.26 MM)

1шт.

7

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring, 13/64 x 23/64 x 3/64" (5.08 x 9.19 x 1.27 MM)

1шт.

8

A141647

SPRING

- upper, 19/64" O.D. x 1-7/8" free length (7.62 x 47.75 MM)

1шт.

9

A139739

SPRING

- return, 1" O.D. x 3-13/64" (25.4 x 81.28 MM)

1шт.

10

A61991

POINT

- modulator

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - PTO control (Order A139858)

1шт.

12

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- 5/8 x 13/16 x 3/32" (15.75 x 20.57 x 2.29 MM)

1шт.

13

A63660

RING

- wiper

1шт.

17

214389

PLUG,3/4" - 16 ORB

Assy, Modulating spool, Includes Ref. 18 Hex Hd, 3/4"-16 ORB

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL - regulating (Order A139858)

1шт.

20

A60273

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

21

A60274

SPRING

- spool, 27/32" O.D. x 2-7/8" free length (21.34 x 73.15 MM)

1шт.

22

A149281

SHIM

- spring, 0.0164" (0.42 MM)

1шт.

23

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- 11/16 x 3/4 x 3/32" (17.53 x 19.05 x 2.29 MM)

1шт.

24

A149282

PLUG

- spool

1шт.

25

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN - roll, 3/16 x 1-1/4"

1шт.

26

A60686

SEAT

- relief valve

1шт.

27

A60687

VALVE POPPET

POPPET - relief valve

1шт.

28

A60286

SPRING

- relief valve, 23/32" O.D. x 2-3/16" free length (11.29 x 55.63 MM)

1шт.

29

A63356

PLUG

- relief spring

1шт.

33

A160659

HYD CONNECTOR

CONNECTOR ASSEMBLY - PTO valve detent, Includes: Refs. 34 and 35

1шт.

34

A160657

SET SCREW,3/8" - 16

- adjusting

1шт.

35

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.89 x 15.88 x 1.98 mm)

1шт.

36

A141647

SPRING

- adjusting, 19/64" O.D. x 1-7/8" free length (7.62 x 47.7 MM), Includes: Ref. 37

1шт.

37

211-28

BALL,13/32" Dia

- detent, meter (10.32 MM) 13/32" Dia

1шт.

40

A145117

CONNECTOR, ELEC

CONNECTOR - detent (Early production) (Order Ref. 33)

1шт.

41

A149941

WASHER

- spring (Early production) (Order A160659)

2шт.

42

A145118

SPRING

- 1/4" O.D. x 1-43/64" free length (63.5 x 42.42 MM) (Early production) (Order A141647)

1шт.

43

A139754

SPOOL

- detent (Early production) (Order A160659)

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.27 x 20.64 x 2.38 MM)

1шт.
