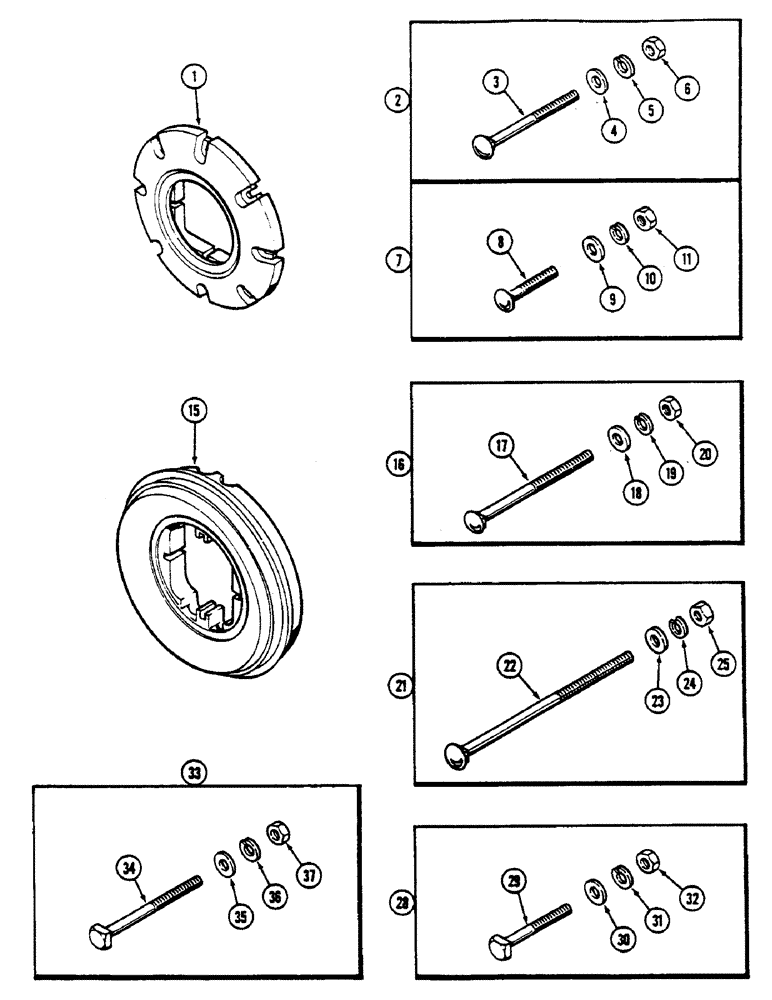

Запчасти Case IH 2590 (6-220) - REAR WHEEL WEIGHTS (06) - POWER TRAIN

1

A33178

WEIGHT

- outside of wheel, 140 lb (63.5 kg)

1шт.

2

A67484

PACKAGE

- hardware, first outside weight (Set of 2) (Machine item), Includes: Refs. 3 - 6

1шт.

3

111-639

CARRIAGE BOLT,Short NK, 5/8"-11 x 7", G5

BOLT - 5/8 x 7" round head square neck

8шт.

4

95-10

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64" (17.46 x 44.45 x 3.57 MM)

8шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

129-107

NUT,5/8"-11, G5

8шт.

7

A62577

PACKAGE

- hardware, each add on weight (Set of 2) (Machine item), Includes: Refs. 8 - 11

1шт.

8

111-630

CARRIAGE BOLT,Short NK, 5/8"-11 x 4", G2

BOLT - 5/8 x 4" NC round head square neck (Grade 5)

8шт.

9

95-10

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64" (17.46 x 44.45 x 3.57 MM)

8шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

11

129-107

NUT,5/8"-11, G5

8шт.

15

A34797

WEIGHT - inside of wheel, 400 lb (181.44 kg)

1шт.

16

A67487

PACKAGE - hardware (Set of 2) (Machine item), Includes: Refs. 17 - 20

1шт.

17

111-637

CARRIAGE BOLT,Short NK, 5/8 -11 x 9", G5

BOLT - 5/8 x 9" NC round head square neck (Grade 5)

8шт.

18

95-10

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64" (17.46 x 44.45 x 3.57 MM)

8шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

20

129-107

NUT,5/8"-11, G5

8шт.

21

A67486

PACKAGE - hardware (Set of 2) (Machine item), Includes: Refs. 22 - 25

1шт.

22

111-638

CARRIAGE BOLT,Short NK, 5/8"-11 x 14", G5

BOLT - 5/8 x 14" round head square neck (Grade 5)

8шт.

23

95-10

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64" (17.46 x 44.45 x 3.57 MM)

8шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

25

129-107

NUT,5/8"-11, G5

8шт.

28

A67519

PACKAGE

- hardware (Machine item), Includes: Refs. 29 - 32

1шт.

29

117-511

SQUARE BOLT,5/8" - 11 x 5", Gr 5

5/8 x 5" NC square head

8шт.

30

95-10

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64" (17.46 x 44.45 x 3.57 MM)

8шт.

31

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

32

129-107

NUT,5/8"-11, G5

8шт.

33

A67520

PACKAGE - hardware (Machine item), Includes: Refs. 34 - 37

1шт.

34

117-512

BOLT,Sq Hd, 5/8" - 11 x 7", Gr 5

- 5/8 x 7-1/2" NC square head

8шт.

35

95-10

WASHER,5/8"

- 11/16 x 1-3/4 x 9/64" (17.46 x 44.45 x 3.57 MM)

8шт.

36

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

37

129-107

NUT,5/8"-11, G5

8шт.
