Запчасти Case IH 2590 (6-219C) - DUAL REAR WHEELS, STEEL, WITH 42 INCH RIMS (1066.80 MM) (06) - POWER TRAIN

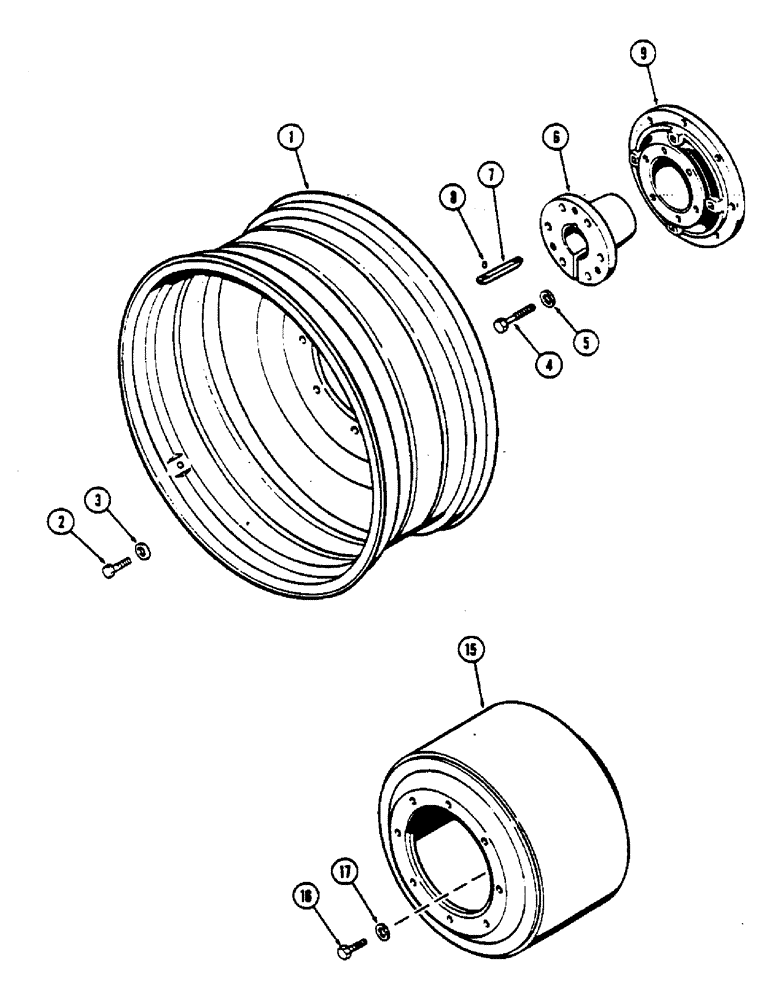

Схема запчастей Case IH 2590 - (6-219C) - DUAL REAR WHEELS, STEEL, WITH 42 INCH RIMS (1066.80 MM) (06) - POWER TRAIN
1
6
5
9
7
16
2
8
4
3
17
15

Артикул

Название

Примечание

Количество

1

A160414

WHEEL

- steel (Use with 18.4 x 42 tire)

2шт.

1

A160415

WHEEL

- steel (Use with 20.8 x 42 tire)

2шт.

2

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

16шт.

3

D31328

WASHER

- 49/64 x 1-5/8 x 1/4" hardened (19.45 x 41.27 x 6.35 MM)

16шт.

4

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - 3/4 x 4-1/2" NC hex

12шт.

5

D31328

WASHER

- 49/64 x 1-5/8 x 1/4" (19.56 x 41.15 x 6.35 MM)

12шт.

6

A63805

BUSHING

- hub

2шт.

7

A63219

KEY

-, Serial Range: wheel-hub

2шт.

8

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

9

A145322

HUB

- universal

2шт.

15

A149059

BUSHING

SPACER - dual wheel

2шт.

16

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- 3/4 x 2-1/2" NC hex (Grade 8)

16шт.

17

D31328

WASHER

- 49/64 x 1-5/8 x 1/4" hardened (19.45 x 41.27 x 6.35 MM)

16шт.

Выбрано товаров: 13
