Запчасти Case IH 2590 (6-219A) - DUAL REAR WHEELS, CAST, WITH 42 INCH RIMS (1066.80 MM) (06) - POWER TRAIN

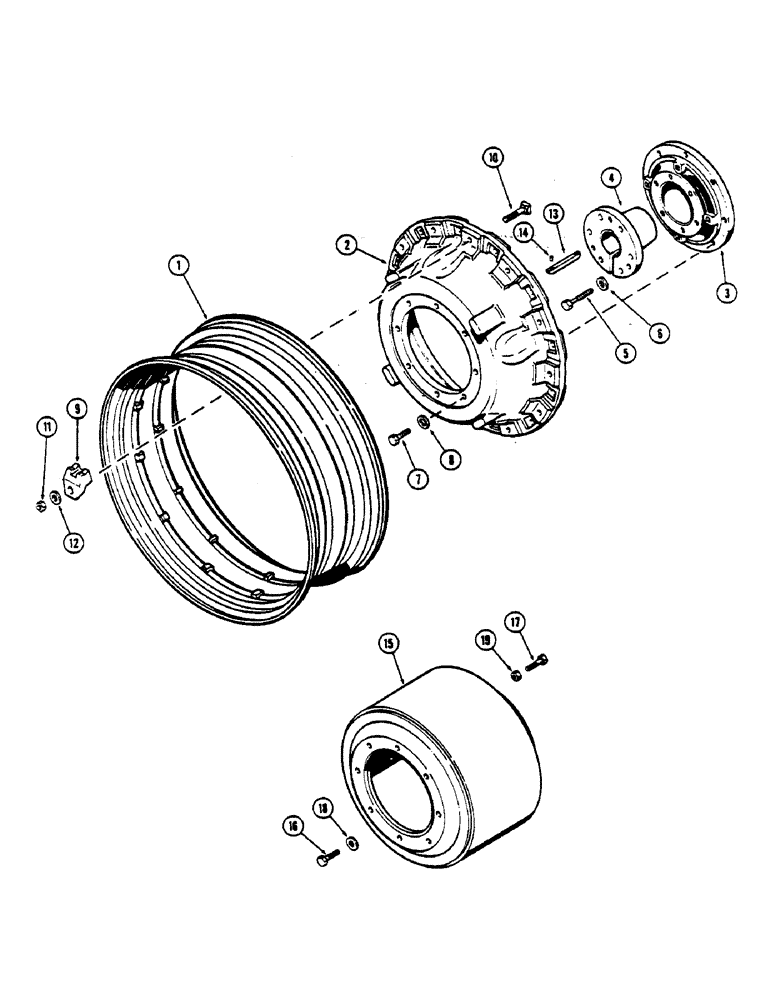

Схема запчастей Case IH 2590 - (6-219A) - DUAL REAR WHEELS, CAST, WITH 42 INCH RIMS (1066.80 MM) (06) - POWER TRAIN
16
5
18
13
6
7
4
17
3
9
19
10
15
11
8
14
1
2
12

Артикул

Название

Примечание

Количество

A67524

ATTACHMENT - wheel, used with 18.4 x 42 tire (Machinery item) (Includes Refs. 1, 2, 7, 10, 11 and 12)

1шт.

1

A160412

RIM

- rear wheel (Use with 18.4 x 42 tire)

2шт.

1

A160413

RIM

- rear wheel (Use with 20.8 x 42 tire)

2шт.

2

A145464

WHEEL

- rear

2шт.

3

A145322

HUB

- universal

2шт.

4

A63805

BUSHING

- rear wheel hub

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - 3/4 x 4-1/2" NC hex

12шт.

6

D31328

WASHER

- 49/64 x 1-5/8 x 1/4" hardened (19.56 x 41.15 x 6.35 MM)

12шт.

7

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- 3/4 x 2-3/4" NC hex (Grade 8)

16шт.

8

D31328

WASHER

- 49-64 x 1-4/8 x 1/4" hardened (19.45 x 41.27 x 6.35 MM)

16шт.

9

A57654

CLAMP

- double ramp, Serial Range: rim-wheel

24шт.

10

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- 3/4 x 3-1/2" NC hex square head (Grade 2)

24шт.

11

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- 3/4" NC hex

24шт.

12

A141125

WASHER

- 25/32 x 1-1/4 x 3/16" (19.84 x 31.75 x 4.76 MM)

24шт.

13

A63219

KEY

- rear wheel hub

4шт.

14

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

4шт.

15

A149059

BUSHING

SPACER - dual wheel

2шт.

16

26-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

- 3/4 x 3-1/4" NC hex (Grade 8) (With cast wheel)

16шт.

17

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- 3/4 x 2-1/2" NC hex (Grade 8) (With steel wheel)

16шт.

18

D31328

WASHER

- 49/64 x 1-5/8 x 1/4" hardened (19.45 x 41.27 x 6.35 MM)

16шт.

19

129-572

NUT,3/4"-10, G8

16шт.

Выбрано товаров: 21
