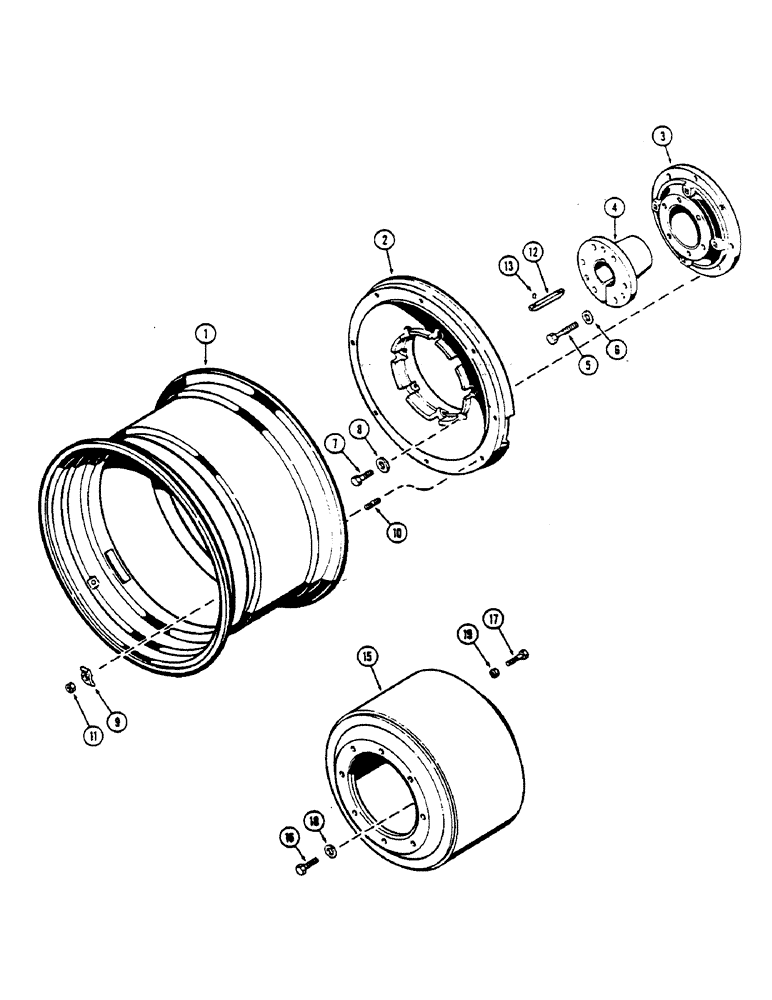

Запчасти Case IH 2590 (6-214) - DUAL REAR WHEELS, CAST, WITH 32 INCH RIMS (812.80 MM) (06) - POWER TRAIN

1

A63807

RIM

- rear wheel (Use with 24.5 x 32 tire)

2шт.

2

A63806

WHEEL

- rear, 5/8" holes

2шт.

3

A145322

HUB

- universal

2шт.

4

A63805

BUSHING

- rear wheel hub

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - 3/4 x 4-1/2" NC hex

12шт.

6

D31328

WASHER

- 49/64 x 1-5/8 x 1/4" (19.56 x 41.15 x 6.35 MM)

12шт.

7

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- 3/4 x 2-1/2" NC hex (Grade 8)

16шт.

8

A64303

WASHER

- 41/64 x 1-1/16 x 1/16" (16.26 x 26.92 x 1.52 MM)

16шт.

9

F62001

CLAMP

- rear wheel rim

16шт.

10

A60047

STUD

- rear wheel rim, 5/8" NC x 2-7/16"

16шт.

11

A27183

NUT

- stud, 5/8" NC hex

16шт.

12

A63219

KEY

- rear wheel hub

4шт.

13

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

4шт.

15

A149059

BUSHING

SPACER - dual wheel

2шт.

16

26-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

- 3/4 x 3-1/4" NC hex (Grade 8) (With cast wheel)

16шт.

17

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- 3/4 x 2-1/2" NC hex (Grade 8) (With steel wheel)

16шт.

18

D31328

WASHER

- 49/64 x 1-5/8 x 1/4" hardened (19.45 x 41.27 x 6.35 MM)

16шт.

19

129-572

NUT,3/4"-10, G8

16шт.
