Запчасти Case IH 2590 (6-208) - REAR WHEELS, CAST, WITH 32 INCH RIMS (812.80 MM) (06) - POWER TRAIN

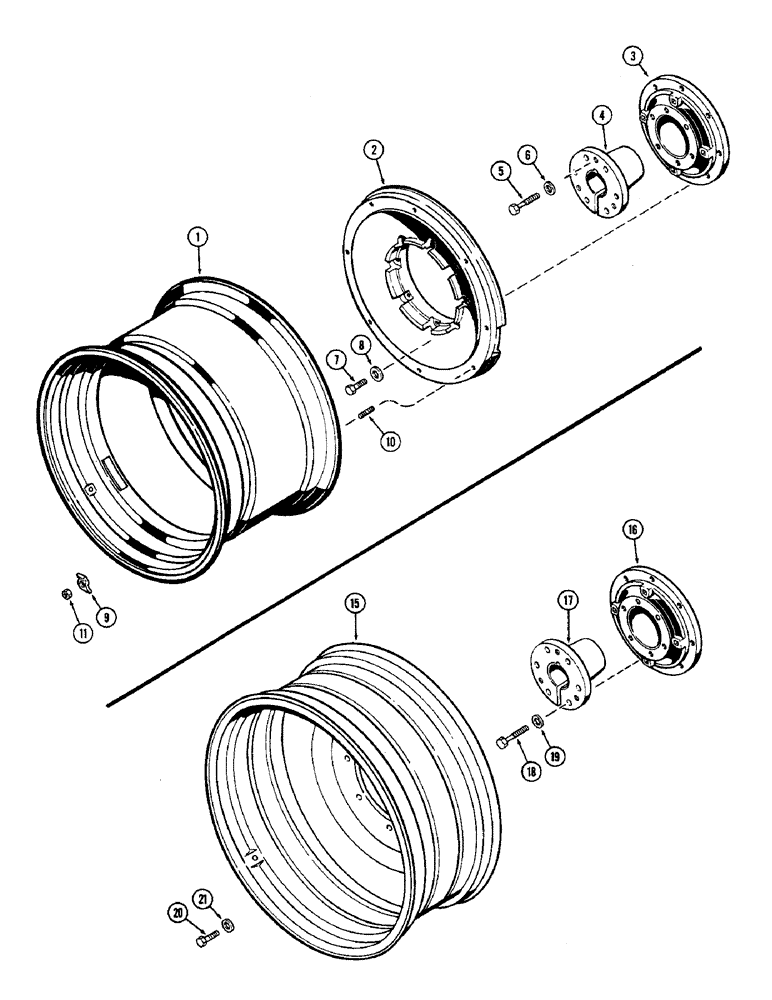

Схема запчастей Case IH 2590 - (6-208) - REAR WHEELS, CAST, WITH 32 INCH RIMS (812.80 MM) (06) - POWER TRAIN
19
11
7
5
9
6
17
16
2
4
10
8
21
18
15
3
20
1

Артикул

Название

Примечание

Количество

1

A63807

RIM

- rear wheel (Use with 24.5 x 32 tire)

2шт.

2

A145461

FLANGE

WHEEL - rear

2шт.

3

A145322

HUB

- universal

2шт.

4

A63805

BUSHING

- rear wheel hub

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - 3/4 x 4-1/2" NC hex

12шт.

6

D31328

WASHER

- 49/64 x 1-5/8 x 1/4" (19.56 x 41.15 x 6.35 MM)

12шт.

7

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- 3/4 x 2-1/2" NC hex (Grade 8) (If equipped)

16шт.

7

166-136

SCREW,Flg, 3/4" - 10 x 2 1/2", Gr 8

- cap, 3/4 x 2-1/2" NC Ferry head (If equipped)

16шт.

8

D31328

WASHER

- 49/64 x 1-5/8 x 1/4" (19.56 x 41.15 x 6.35 MM) (If equipped)

16шт.

8

S84752

WASHER

- 25/32 x 1-7/16 x 3/16" (19.84 x 36.51 x 4.78 MM) (With capscrew)

16шт.

9

F62001

CLAMP

- rear wheel rim

16шт.

10

A60047

STUD

- 5/8" NC 2-7/16"

16шт.

11

A27183

NUT

- 5/8" NC hex

16шт.

15

A145462

RIM

- rear wheel (Use with 30.5 x 32 tire), stamped with 32' rims (812.80 mm)

2шт.

16

A145322

HUB

- universal, stamped with 32' rims (812.80 mm)

2шт.

17

A63805

BUSHING

- rear wheel hub, stamped with 32' rims (812.80 mm)

2шт.

18

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - 3/4 x 4-1/2" NC hex, stamped with 32' rims (812.80 mm)

2шт.

19

D31328

WASHER

- 49/64 x 1-5/8 x 1/4" (19.56 x 41.15 x 6.35 MM), stamped with 32' rims (812.80 mm)

12шт.

20

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- 3/4 x 2-1/2" NC hex (Grade 8), stamped with 32' rims (812.80 mm )

16шт.

21

D31328

WASHER

- 49/64 x 1-5/8 x 1/4" (19.56 x 41.15 x 6.35 MM), stamped with 32' rims (812.80 mm)

16шт.

Выбрано товаров: 20
